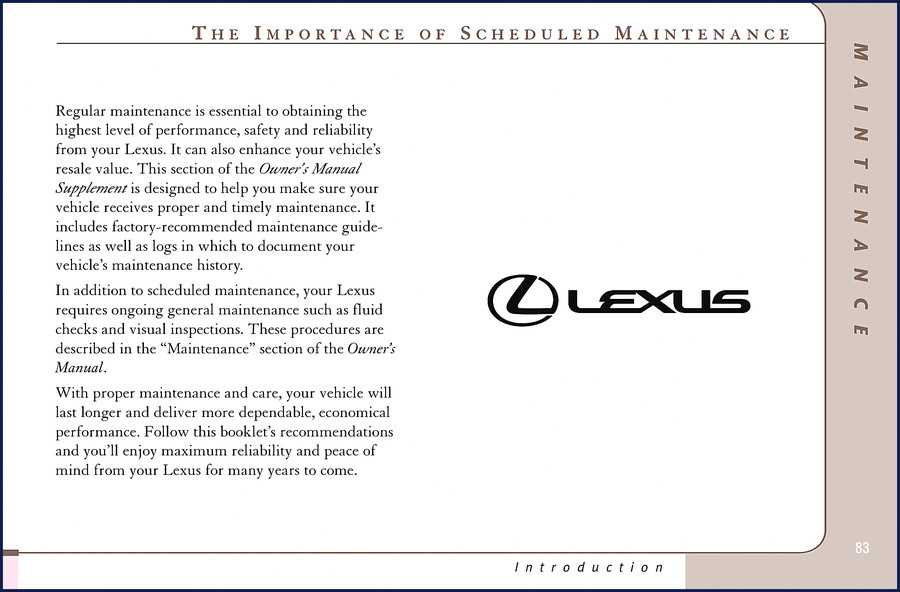

Lexus RX300 1999 Technical Manual – 1910 Pages of Factory Specs

You’ve got a 1999 RX300 on the lift with a valve tick and no confidence in the clearances. Without factory specs you’re either guessing or calling the dealer and losing billable hours. This Lexus RX300 1999 Technical Manual gives you the exact procedures Toyota wrote for their own technicians – not some aftermarket rewrite that skips steps. I’ve torqued more head bolts than most people have had hot meals, and I can tell you that when the manual says “85 ft-lb” for a main bearing cap, you put 85 ft-lb on it, not 80 and not 90. This is the real thing.

Valve Clearance Adjustment – Cold Engine Only

Page 2 of the manual lays out the valve clearance adjustment for the 1MZ-FE engine. Engine cold, period. Disconnect the negative battery cable and wait 90 seconds before touching anything – the air bag system will bite you if you skip that step. Drain the cooling system, pull the right fender apron seal, and use a 5-mm hexagon wrench to remove the “V” bank cover. The manual walks you through the three-step rotation sequence: set cylinder #1 at TDC on compression, measure intake on #1 and #6 and exhaust on #2 and #3, then rotate the crank 240° twice more. You need a feeler gauge, patience, and the spec from page 2. Aftermarket manuals often combine steps or give rounded numbers; this one gives the factory tolerances.

1MZ-FE Engine Identification and Overhaul

The engine serial number is stamped on the rear of the cylinder block – the manual shows you exactly where in Figure 1. Engine code is 1MZ-FE for the 3.0L V6. The ENGINE OVERHAUL PROCEDURES – GENERAL INFORMATION section (separate PDF within the manual) covers everything from piston ring gaps to main bearing clearance. I’ve used this manual to rebuild a 1MZ-FE that had spun a rod bearing; it saved me from buying the wrong bearing set because I could look up the journal size by the engine serial number. That kind of detail is why dealership techs keep these manuals locked up.

7 Major Systems You Can Diagnose

This manual breaks down into specific system PDFs, not one massive block of text. You get separate chapters for:

• AC-HEATER SYSTEM with uniform inspection guidelines
• AIR BAG RESTRAINT SYSTEM – includes deployment precautions
• ANTI-LOCK BRAKE SYSTEM with and without traction control
• AUTO TRANS DIAGNOSIS for the U140E/U140F
• BODY CONTROL SYSTEM and MULTIPLEX CONTROL SYSTEM
• CRUISE CONTROL SYSTEM
• ENGINE IMMOBILIZER SYSTEM and KEYLESS ENTRY

Each system has its own PDF with step-by-step diagnostics. The wiring diagrams are in SYSTEM WIRING DIAGRAMS.PDF, which covers every circuit from the power windows to the starter. Need to find a parasitic draw? There’s a separate PARASITIC LOAD EXPLANATION & TEST PROCEDURES file. You don’t have to flip through 1910 pages blind – the bookmarks are organized.

Factory Specs vs Aftermarket Guessing

I’ve got a stack of aftermarket manuals in the back of my toolbox that I use for nothing but shimming benches. They round torque values, omit safety warnings, and combine steps until the procedure is useless. This manual was printed by Toyota Motor Sales, U.S.A., Inc. for the 1999 Lexus RX300. When you look at the COOLING SYSTEM SPECIFICATIONS page, you get the exact coolant capacity in quarts and the thermostat opening temperature. The ENGINE OVERHAUL PROCEDURES – GENERAL INFORMATION section gives you the factory bearing clearance specs, ring end gaps, and cylinder head bolt torque sequence. There’s no “approximately” or “tighten to feel.” Every number came out of the engineering department in Japan. The Automotive Industry Overview shows how OEM documentation sets the standard for reliability.

Who Actually Uses This Manual

DIY mechanics who want to keep their RX300 on the road without paying a dealer $140/hour. Home garage enthusiasts who own a 1999 RX300 and need to replace a transfer case or rebuild the front suspension. The SUSPENSION – FRONT and SUSPENSION – REAR PDFs cover strut replacement, ball joint torque specs, and alignment adjustments. If you’ve never swapped an axle shaft on this platform, the AXLE SHAFTS – FRONT & REAR section walks you through spindle removal, C-clip extraction, and torque values for the hub nut. Beginners can use this manual too – the SYMPTOM CHECK LIST helps you narrow down problems before you touch a wrench. Just don’t skip the first five pages of safety warnings. That ELECTROSTATIC DISCHARGE WARNING – BASIC INFORMATION PDF is there because static can fry an ECU.

Why 1910 Pages Matter

That number isn’t padding. It’s 1910 pages of OEM factory procedures, torque specs, wiring diagrams, and diagnostic trees. The manual covers the 1999–2000 model years with identical content for the ES300 and RX300. Every PDF was originally distributed to Lexus dealers. The Lexus LS430 Technical Manual – Wireless Door Lock Registration and Lexus Camry, Avalon, Supra TRAC Technical Manual – 35 Page Factory Training are related factory documents you can reference for other Toyota/Lexus platforms. If you need to program a new ECU or flash a module, check the Lexus Techstream ECU Flash Reprogramming Procedure Manual. This RX300 manual is the foundation – without it you’re guessing on the most critical numbers.

FAQ – Common Questions About This Manual

Does this manual include wiring diagrams for the entire vehicle?

Yes. The SYSTEM WIRING DIAGRAMS.PDF covers all electrical circuits – engine, body, ABS, air bag, and HVAC.

How do I adjust valve clearance on my 1999 RX300?

Page 2 gives the full procedure: set cylinder #1 to TDC compression, measure intake on cylinders #1 and #6, exhaust on #2 and #3. Rotate crankshaft 240° clockwise twice, measuring after each rotation. Use a feeler gauge with the engine cold. The manual shows the exact sequence in Figure 2. If you skip the 90-second battery disconnect wait, the air bag could deploy when you crank the engine. That warning is in bold on page 2. I’ve seen a tech get a face full of steering wheel because he rushed the safety step. Don’t be that guy.

Is this the same manual Lexus dealerships use?

Yes. It’s a direct copy of the factory technical manual distributed to Lexus service departments in 1999. Same part numbers, same torque specs, same diagrams.

What about the anti-theft system?

Covered in ENGINE IMMOBILIZER SYSTEM.PDF and ANTI-THEFT SYSTEM.PDF with registration procedures.

You’re not buying a generic guide – you’re buying the exact documentation that Lexus engineers wrote. The Manual Transmission section is not in this manual because the RX300 uses an automatic, but the transmission diagnosis PDFs are complete. Access the Factory Manual from AutoRepairManuals and keep it on your tablet or print the pages you need. I keep a copy in my box for the ’99 RX300s that still come through. It pays for itself on the first job.
