JLG 522D, 534D-6, 524D, 534D-6T 2002 Service Manual

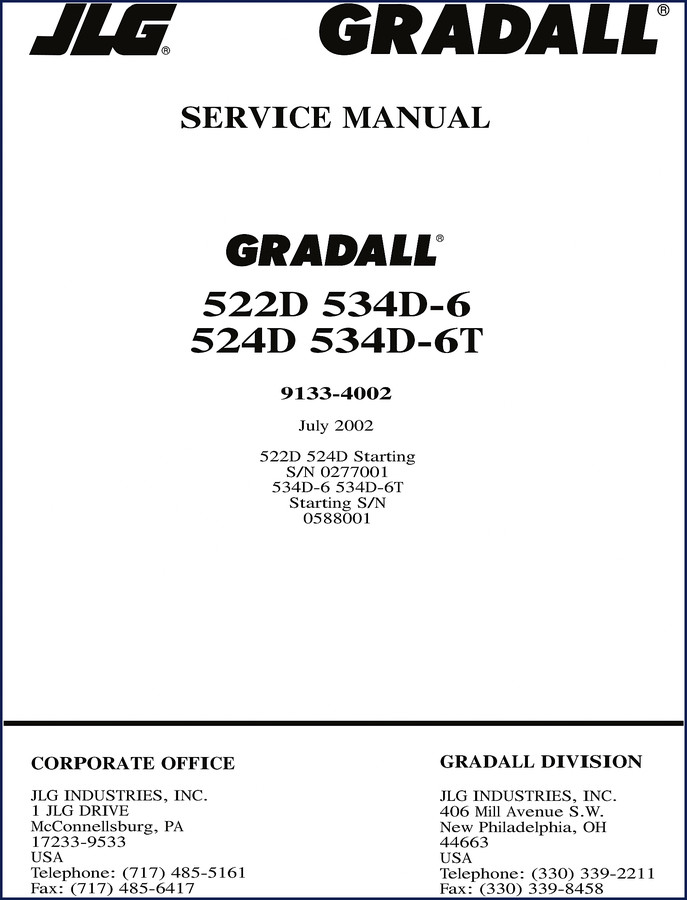

You have a JLG material handler that’s down. You need to know the factory charge pressure, the correct torque for a hub bolt, or how to bleed that Mico brake valve. The aftermarket manual you obtained from some forum has specs that don’t match your serial number. I’ve seen it — wrong bolt torque leads to a sheared stud or a hydraulic leak that costs you a day. The JLG 522D, 534D-6, 524D, 534D-6T 2002 Service Manual is the real deal. 288 pages, printed by JLG, covering serial number breaks: 522D/524D starting 0277001, 534D-6/534D-6T starting 0588001. This is what the dealer pulls up on his tablet.

Operator Instructions & Lubrication: The Foundation

First section runs through the Owner/Operator Manual (form 20045). You get the safety highlights, decal locations inside and outside the cab, control identification. Stuff like cold-weather starting aids, battery-boosted starting, and the full brake system breakdown — inching travel, service brakes, parking brakes. Lubrication specs and a torque chart are included. That torque chart alone saves you from cracking a casting. The manual tells you how to obtain a hydraulic oil sample for analysis before you tear into the pump. It also covers moving the handler in emergency — tow bypass, parking brake release, the whole sequence.

Hydraulic System: Factory Schematics and Pump Rebuild

You get the 9108-9027 hydraulic schematic. Then three service manuals bundled in: Sundstrand Sauer rear drive motor (minor repair & replacement), RA64-789-S hydraulic gear pumps (disassembly, inspection, reassembly, break-in procedure with output chart), and Mico hydraulic power brake valve (system schematic, performance data, bleeding procedure). If you’ve ever had a Mico valve that won’t release, the primary cup design and Teflon seal design sections walk you through the differences. Bleeding procedures are on point. No guessing which seal goes where — the cross-sectional views show you.

Axles: Auburn Gear and Meritor Procedures

Two axle service manuals are embedded. Auburn Gear planetary gear drive covers disassembly/assembly of the power wheel, carrier assemblies, lubrication recommendations, RTV sealing compound, towing, and storage. Specifications table is there. Meritor PRA 352 series planetary axles have six sections covering service notes, exploded views, and step-by-step repair. If you need to replace a wheel seal or rebuild a planetary, this is where you live.

Transmission: Hydrostatic Drive Performance Checks

This section (29707) is a standalone manual for hydrostatic drive diagnostics. Required tools list — don’t skip it. General warning information starts with safety. Then you go section by section: hydraulic oil reservoir, park brake, hydraulic filter condition, engine speed, charge pressure, control pressure, inching, front motor begin point, hydrostatic transmission pressure, machine operation. Each section has a pass/fail criteria. Charge pressure range? It’s in there. Control pressure spec is given for your specific model. This is how you confirm the hydrostatic pump is good before you pull it.

Boom Maintenance: The 532/534 Section

Manual 29906 covers the boom for 532/534 models. Introduction, special note on boom cables (critical — cable tension affects everything), safety, nomenclature. Boom adjustment procedure is covered. If you’re dealing with boom drift or uneven extension, this tells you the factory adjustment sequence. The note on using the manual is worth reading: it explains how the sections are organized.
