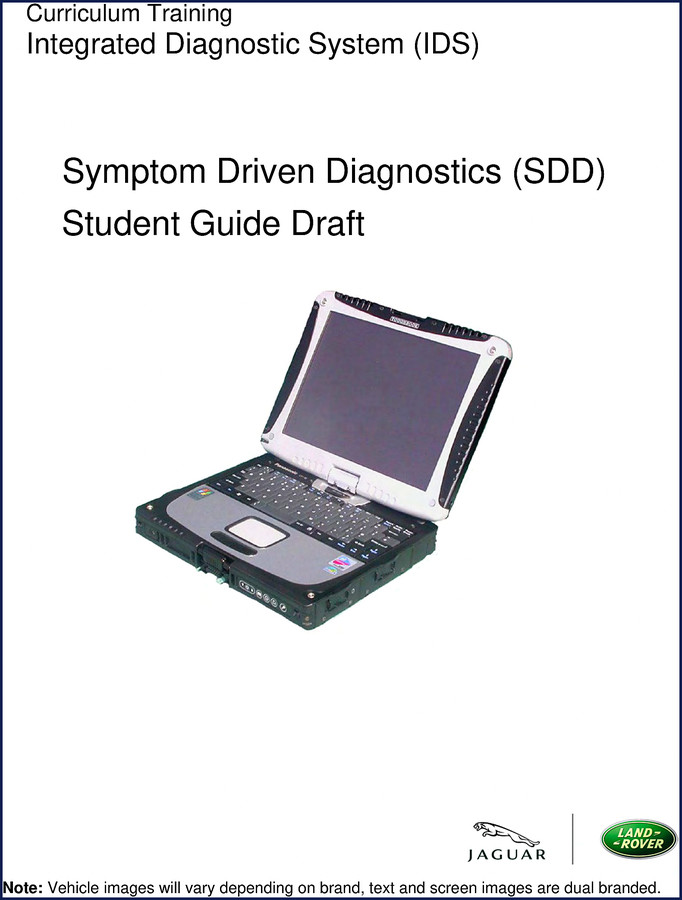

Jaguar Land Rover Land Rover 2009 Training Manual – Symptom Driven Diagnostics (SDD) for IDS

I’ve seen too many techs waste four hours on a no-start because they skipped the network test and went straight to swapping parts. That’s exactly why this Jaguar Land Rover Land Rover 2009 Training Manual sits on my bench, not some aftermarket pamphlet. This isn’t a repair manual — it’s the OEM training material for the Symptom Driven Diagnostics (SDD) system that every Land Rover dealer used from 2009 onward. If you own a Land Rover or work on them, you need to know how the factory tells you to connect, configure, and interpret the diagnostic session. The manual runs 80 pages and covers the IDS hardware, SDD software, dealer settings, and the full symptom‑driven workflow. No guesswork.

SDD Hardware and Functionality – What the Manual Covers

The table of contents starts with System Hardware and Functionality — the sections that describe the Toughbook setup, the VCI (Vehicle Communication Interface), and how the SDD software talks to the vehicle modules. If your scanner locks up or refuses to communicate, the answer is in these chapters. They explain the boot sequence, the network test, and how to spot a bad cable before you blame the ECU. I’ve had techs chase a phantom U-code for three days only to find a corroded pin — this manual would’ve shown them the voltage drop check on page 4 of the System Hardware section.

Does This Manual Cover the Fuel System and Torque Specs?

No, it does not. This is a training manual for the diagnostic system itself, not a workshop manual. You will find Symptom Maps and Recommendations that list possible causes for a given DTC or customer complaint, but the actual torque specs for head bolts or injector clamps belong in the separate workshop literature. That said, the manual teaches you how to navigate SDD to find those specs — it shows you the Dealer Information screen and System Information menus where the factory stored the latest updates. Pair this with a proper workshop manual, and you’ll have the complete picture. For related material, check the Jaguar Land Rover Adaptive Fuel Trim Display Tutorial and the 2018 Jaguar Land Rover Diagnostics Manual – SDD Software Setup to see how the system evolved.

3 Reasons to Choose This OEM Training Manual

• Factory Accuracy: Every page was written by Jaguar Land Rover engineers. The wiring diagrams, network topologies, and symptom maps come straight from the 2009 model year vehicles. Aftermarket scan tool companies copy bits of this, but they miss the context — like the Related Events and Unrelated Events filtering logic that keeps you from chasing ghosts.
• Time‑Saving Workflow: The SDD system is designed to walk you from symptom to fix without guessing. The manual explains how to use Symptom Selection and the Network Test to narrow down possibilities. On a Range Rover Sport with a stored B1A26, I followed the exact procedure from the Network Summary chapter and had the repair done in 45 minutes.
• Safety‑Obsessed Procedure: The manual includes a full section on Recommendations — what to do before disconnecting modules, how to save sessions to avoid corrupting data, and when to use the SDD‑PDI routine for new vehicles. Ignore that and you risk bricking an ECU. I’ve seen it happen.

Understand the Wiring Before You Touch It – Network Test and Symptom Maps

One of the most useful sections is Network Summary and Network Test. SDD runs a proprietary network scan that checks every module on the bus, then flags any that are missing or miscommunicating. The manual shows you how to read the results and distinguish a dead module from a bad ground. Then the Symptom Maps give you a decision tree — if the customer says “engine won’t crank,” the map tells you to check the starter relay circuit before you grab the multimeter. That alone saves you an hour on a no-crank Land Rover Discovery 3. And if you need a deeper dive into transmission diagnostics, the Hyundai Kia Transaxle Training Manual covers a different system, but the same symptom‑driven logic applies.

System Settings and User Preferences – Dealer Information That Matters

The chapters on System Settings and User Preferences show you how to configure the SDD software on your own computer. This is critical when you’re setting up a used Toughbook or replacing the hard drive. The manual walks you through Dealer Information entry — the dealer code, language, and unit system (Imperial/metric). I set mine to Imperial because I don’t want to convert bolt torques in my head. It also explains System Information, which tells you the software version and whether you need an update. If your SDD keeps crashing, check the version against the one in the manual — you might be on a buggy build that was fixed in the 2009 revision.

FAQ

Q1: Can I use this manual to repair my 2009 Land Rover LR3 engine?

A1: No. This is a diagnostic system training manual, not a service manual. It teaches you to operate SDD software but does not contain engine overhaul procedures or torque specs.

Q2: What exactly will I learn from the 80 pages?

A2: You will learn how to connect the IDS hardware, configure the SDD software, perform a network test, interpret symptom maps, use the session saving and PDI functions, and understand dealer-level system settings. The manual covers the Introduction and Objectives, then dives into System Hardware, Functionality, The Main Changes (from previous IDS versions), Symptom Maps, System Settings, User Preferences, Dealer Information, System Information, System Tools, Recommendations, Network Summary, Network Test, Symptom Selection, Related Events, Unrelated Events, Recommendations, Saving Sessions, Full Description, Brief Summary, Information Screen VIN Entry, Vehicle Confirmation, Session Selection, and SDD‑PDI. That’s a comprehensive set of training modules that will turn a scan‑tool user into a technician who understands the diagnostic process. For the wider context of automotive systems, read the Automotive Industry Overview and how OEMs standardize diagnostic protocols. If you also work on manual transmission vehicles, the Manual Transmission article covers the mechanical side — but the diagnostics are where this manual shines.

Look, I don’t sell fluff. This 2009 Jaguar Land Rover Land Rover Training Manual is the real deal — a factory document that shows you how the dealer diagnostic system works. If you’re serious about fixing Land Rovers without throwing parts at them, this is the foundation. Access the Factory Manual and start working from the same specs the dealers used.
