Hyundai Kia A4CF1, M5CF1, M5CF2, M5CF3, M6GF2 Training Manual

You ever had a transaxle come back because you used aftermarket torque values? I have. Wasted a Saturday. That’s why I keep factory docs on the bench. This Hyundai Kia A4CF1, M5CF1, M5CF2, M5CF3, M6GF2 Training Manual gives you the exact control logic and specs the manufacturer gave their own techs. 25 pages – no filler, no guesswork.

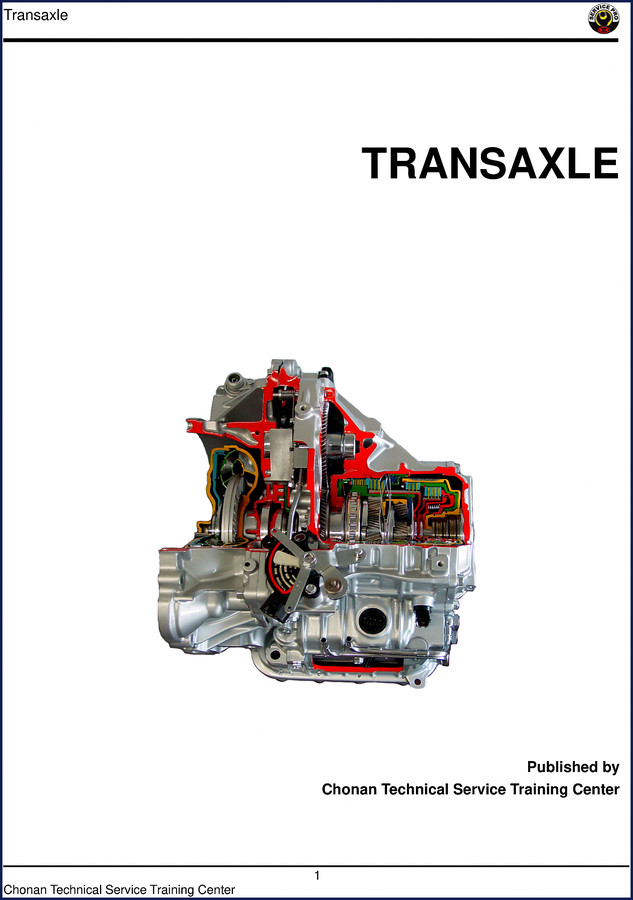

Forget the generic aftermarket books that skip the solenoid PWM frequencies or the centrifugal balance chamber details. This is a Chonan Technical Service Training Center publication. It covers the A4CF1 and A4CF2 automatic transaxles plus the manual M5CF1, M5CF2, M5CF3, and M6GF2 units. If you’re rebuilding any of these Hyundai Kia units, you need the original training material – not some scan of a scan.

What the Training Manual Actually Covers

Nine sections inside, but the meat starts on page 3 with the powertrain variation table. You get application data for each engine – Gamma 1.6L, Beta 2.0L, diesel variants – and which transaxle bolts to which. Page three also lays out the control logic differences between this and the older A4AF3 Alpha. That’s the kind of info that keeps you from swapping a valve body and wondering why it shifts wrong.

The specification table on page 5 is worth the access by itself. It lists torque converter diameter (236mm for A4CF1, 230mm for A4CF2), gear ratios for all four forward speeds plus reverse, number of clutches and brakes, and solenoid types. You get PWM and VFS solenoid counts – six total. That matters when you’re diagnosing line pressure issues. Look at the accumulator count: the A4CF1 has four accumulators (UD, OD, 2nd, LR) while the older A4AF3 only had one. Miss that detail and your shift quality will be garbage.

Component Identification: Clutches, Brakes, and OWC

Mechanically these transaxles share a lot with the HIVEC design, but the training manual points out the difference in planetary gear detection. The A4CF1 picks up speed from the O/D carrier, not the UD carrier. That affects how the TCM calculates shift timing. Page 4 has a labeled diagram of the UD clutch, OD clutch, OWC, LR brake, 2nd brake, and reverse clutch. If you’re assembling from a parts cleaner, that diagram saves you from installing the one-way clutch backwards – something I’ve seen cost a shop a transmission core.

Control Logic and System Interface

This manual doesn’t just cover hardware. It explains why the 3rd position switch was added and how the electronic shift lock control works for European market KMC models. The objectives on page 2 state you’ll understand system interface and newly developed technical features. That includes the sports mode TGS lever with six positions and no O/D switch. Old-school guys who expect a separate overdrive button will miss this – the training manual makes the shift pattern clear.

Powertrain Variations and Application Table

The table on page 3 shows which engines get which transaxle. Beta II 2.0L gets the A4CF2. Gamma 1.6L gets the A4CF1. Manual transmissions for the diesels use the M5CF1, M5CF2, M5CF3, or M6GF2 depending on torque capacity. The 2.0 VGT diesel puts out 140 ps / 31.0 kg·m – that gets the M6GF2. Trying to stick a M5CF1 behind that motor? You’ll scatter the gears. This table tells you what fits before you order parts.

Need to know the weight difference? A4CF1 weighs 71.9 kg, A4CF2 is 76 kg. Overall length: 379 mm vs 390.5 mm. If you’re swapping between models, those dimensions matter for mount brackets and halfshafts.

3 Reasons to Use OEM Training Material

First, torque values. Aftermarket manuals often reprint specs from earlier revisions. This training manual came from the Chonan center and reflects the actual production units. Second, the solenoid control logic – aftermarket sources treat all PWM solenoids the same. The A4CF1 uses five PWM and one VFS. That changes the diagnostic steps for shift complaints. Third, the shift lock and position switch wiring is model-specific. Generic wiring diagrams will lead you into a harness splice you don’t need.

For a deeper dive into transaxle fundamentals, the Manual Transmission article on Wikipedia gives background on gear ratios. And for the broader automotive landscape, the Automotive Industry Overview page is worth reading – though it won’t help you with a Hyundai shift solenoid.

I also keep these related manuals in my shop library: Gottwald HMK 260E Training Course Manual 2003 for heavy equipment hydraulic logic, Meritor Wabco ACTROS Training Manual – 39 Pages OEM EBS for air brake systems, and Meritor WABCO Enhanced Easy-Stop PLC Trailer ABS for trailer electronics. Different disciplines, same principle – only use factory documents.

FAQ: Quick Answers From the Bench

Does this manual cover both automatic and manual transaxles?

Yes. It includes A4CF1 and A4CF2 automatics plus M5CF1, M5CF2, M5CF3, and M6GF2 manuals. All in one 25-page training doc.

Are the torque converter specs in imperial units?

The specification table uses metric units – mm for diameter, kg·m for torque. You’ll need to convert to ft-lbs if your torque wrench reads imperial. Page 5 lists all converter and gear ratio data.

Will this help me rebuild the valve body on an A4CF1?

It will help you understand the hydraulic circuit differences vs. the older HIVEC, but it’s a training manual, not a step-by-step rebuild guide. It covers solenoid types and accumulator counts – you need that knowledge before you disassemble the valve body. If you’re looking for R&R procedures, combine this with the service manual. The training manual fills in the ‘why’ behind the ‘how’.

Why 25 pages instead of a full service manual?

It’s a training course booklet, not a repair manual. It packs exactly what a Hyundai technician would learn in class: control logic, component identification, variations, and specs. For a working mechanic, it’s the cheat sheet you keep in the tool box, not the 800-page shop manual.

You’ve read the specs. You see the torque converter diameters, the gear ratios, the solenoid counts. Now put this OEM material on your tablet or print it for the bench. Stop relying on forum posts and aftermarket copies. Access the Factory Manual and get the data directly from the source.
