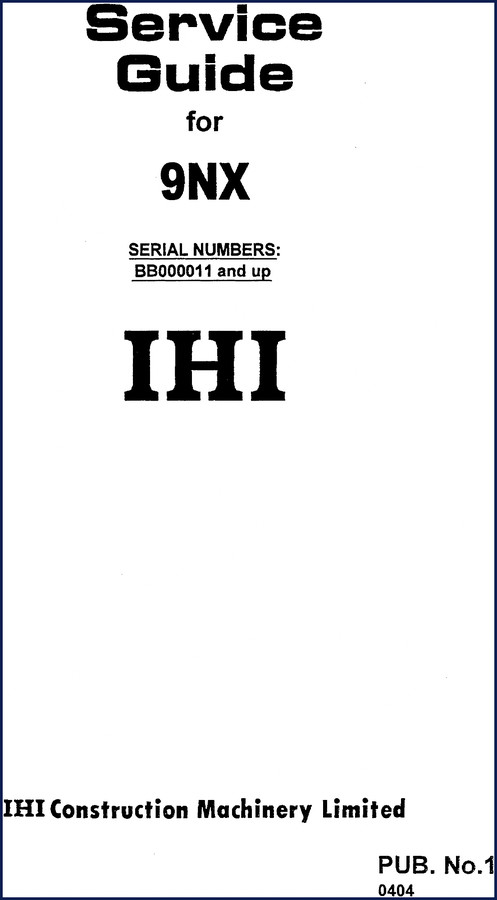

Ihimer 9NX Service Manual – Factory Specs & Repairs

If you’re working on a Ihimer 9NX hydraulic mini excavator and relying on a generic internet guide, you’re gambling with time and parts. A wrong torque spec on the engine mounts or a misread hydraulic pressure value can cost you a day and a blown seal. That’s why this Ihimer 9NX Service Manual belongs on your bench, not a PDF folder you’ll never open.

Official OEM documentation from IHI Construction Machinery Limited covers serial numbers BB000011 and up. It runs 110 pages of factory procedures – no aftermarket interpretations. I’ve been twisting wrenches 28 years, and I’ve seen too many guys skip the OEM manual because they think they know the machine. The 9NX uses a Yanmar 2TNE68-EIK engine, 4-cycle water-cooled overhead valve with swirl combustion chamber. Bore and stroke: 68x72mm. Displacement 0.522 L. Need the charge pressure? Page 4 gives you the travel speed (1.7/3.5 km/h), swing speed (8.7 rpm), and ground bearing pressure 26 kPa. That’s data you use, not read.

Specifications: General Machine Performance

Section 1 gives you the full spec sheet: overall dimensions, rated object handling capacities table, weight breakdown (890 kg machine mass), and lifting capacities. Page 4 also lists the refill capacities – fuel tank 8.5 L, hydraulic fluid 14 L, engine oil between 0.6 L and 1.6 L depending on level, coolant 2.2 L total. You don’t guess these numbers. You torque the drain plug to spec, you fill to the mark. The manual tells you exactly which spec to use for each system.

Engine Main Data and Specifications

The Yanmar 2TNE68-EIK puts out 6.8 kW at 2400 rpm (DIN). Max torque 31.9 N·m at 1800 rpm. That’s page 4 data. If you’re pulling the head, the manual doesn’t just say “torque to spec” – it gives you the pattern and step sequence. The 9NX Service Manual is a real shop document, not a reprint of a Chilton’s page. It has the same structure IHI techs use.

Structure and Function: Understanding the Hydraulics

Section 2 covers the hydraulic system layout. You get the control valve spool positions, relief pressures, and pilot system checks. The 9NX uses a Manual Transmission concept for its travel reduction gears, but the clutch packs are hydraulic. If you’ve never seen a mini-excavator swing gear, the diagrams in this section show the breakdown. Page numbers for the hydraulic schematic are in the bookmarks – I won’t list them all, but it’s in Section 2.

Does This Manual Cover the Structure and Function?

Yes. Section 2 is titled “Structure and Function.” It breaks down every major component: the control valves, the hydraulic pump, the swing mechanism, the travel motor. This is where you find the assembly order and the shim sizes. I’ve used these pages to rebuild a 9NX swing brake – saved me from ordering unnecessary parts.

Maintenance Refill Capacities – Fuel, Oil, Coolant

Section 4 covers the daily and interval checks. You need the hydraulic fluid type? The manual specifies ISO VG 46 or equivalent. The engine oil capacity is 1.6 L at max level, 0.6 L at min – pay attention to the dipstick markings. Coolant is ethylene glycol mix, total 2.2 L. These numbers are not in the owner’s pamphlet. They’re in the OEM service manual. If you overfill the hydraulic tank, you’ll get aeration and a sluggish hydraulics. The manual puts it in writing.

Performance Standards: What to Expect from the 9NX

Section 6 gives you the performance test procedures. Swing speed, travel speed, gradability (58% or 30 degrees). You run these tests after a repair to confirm the machine’s right. The 9NX Service Manual includes the tolerances – for example, the travel motor relief pressure should be within 5% of spec. Without these numbers, you’re guessing if the machine is safe to put back in service. For a refresher on gear reduction theory, check Manual Transmission at the external source.

You’ll need a 1/2″ drive torque wrench, a Fluke multimeter for the electrical checks, and a hydraulic pressure gauge set (0-5000 psi). The manual lists the required tools in the front matter. No generic “use appropriate tools” nonsense – it tells you the thread size and the socket you need for the main head bolts.
