Ihimer 15NX Service Manual – Factory OEM Shop Guide for Mini Excavator

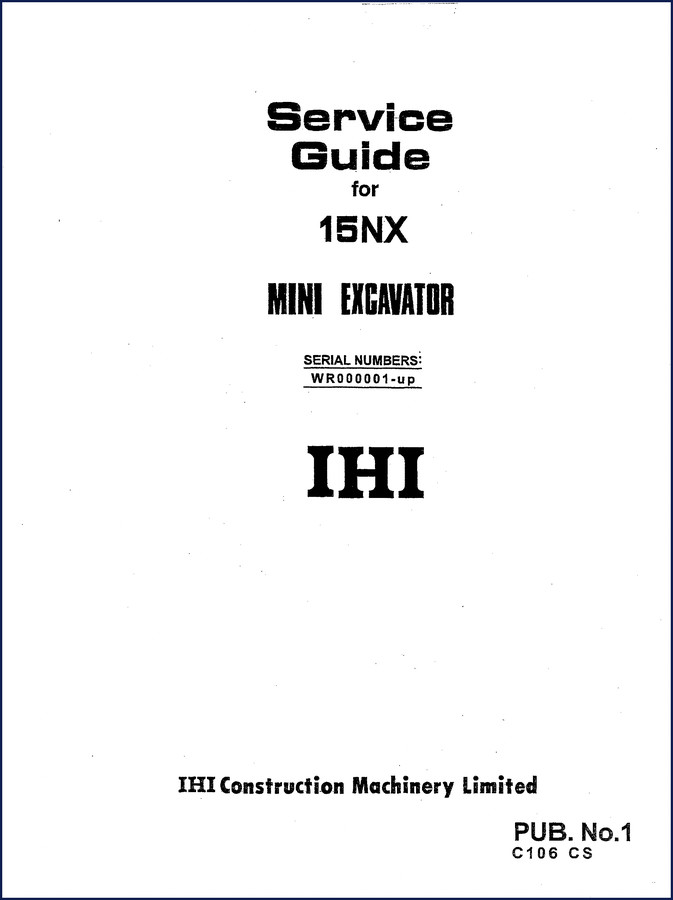

If you’re wrenching on a Ihimer 15NX Service Manual mini excavator without the factory book, you’re guessing. Guessing costs you time, busted threads, and hydraulic leaks that run down your arm. I’ve seen techs throw a $600 pump at a machine just because they didn’t have the pressure specs. This 121-page OEM guide is what IHI sends to dealers. It’s the same binder they pull off the shelf when a unit comes in with serial number WR000001-up.

7 Sections That Cover This Mini Excavator

The manual breaks down into eight numbered sections plus an options chapter. Section 1 is the specifications – engine model (Yanmar 3TNE68-EIK), travel speeds, swing speed, bucket capacities, machine weight with rubber or steel shoes. Section 2 covers the structure with overall dimensions. Page 5 gives you the exact millimeter measurements for canopy width, blade height, and overall length. Section 3 is operation theory – how the control valves and linkage work. Section 4 is maintenance intervals. Section 5 dives into hydraulic components. Section 6 gives performance standards. Section 7 shows maintenance standards (the OCR shows a typo “M4lNTENANCE” – it’s still the factory data). Section 8 is troubleshooting. Section 9 lists options.

Torque Values and Fluid Capacities: Where to Find Them

Every torque spec in this book is OEM. Page 3 lists the engine rated output, max torque, and refill capacities – engine oil 0.9 liters, coolant 3.6 liters, fuel 3.0 liters, hydraulic fluid 1.0 liter at minimum level. That’s the kind of spec you need when you dump the old fluid and refill. The manual also tells you the average ground bearing pressure with steel shoes. No aftermarket manual gives you this – they copy from each other and get the decimal wrong.

Does the Ihimer 15NX Service Manual Cover the Hydraulic System?

Section 5 – Hydraulic Components – is the heart of this machine. It covers the pump, control valves, cylinders, and swivel joint. You get the factory test procedures for relief pressures and flow rates. If you’re chasing a slow swing or a drift in the boom, this section gives you the pressure specs and the sequence to check. Pair this with the IHI 15NX Parts Catalog to find the exact seal kits.

Troubleshooting Section: Factory Procedure

Section 8 lists common problems and the factory-recommended checks. Engine won’t start? Travel motors weak? Track tension off? The book gives you a symptom list and a numbered diagnostic path. No guesswork – you test in the order IHI wrote it. For general knowledge on how manual transmissions work in other equipment, see Manual Transmission. For deeper theory on manual transmissions, Manual Transmission is worth a read.

Operation Section: What the Book Reveals About Controls

Section 3 explains the control logic – how pilot pressure moves the spools, how the travel pedals link to the motors. If you’ve ever had a control that felt spongy, this section tells you where the pilot pressure should be and how to adjust the relief. It also covers the safety interlocks. Never bypass those – I’ve seen a bucket drop on a guy’s foot because he skipped the de-energize procedure.

Why OEM Documentation Beats Aftermarket Every Time

The Ihimer 15NX manual is a direct scan of the factory binder – not a reprint with cropped images. The part numbers and bolt torques come from IHI’s engineering department. Aftermarket manuals get the specifications wrong because they OCR the numbers and miss decimal places. You want the real hydraulic fluid capacity? Page 3 says 1.0 liter minimum, not 1.6. That difference can starve a pump.

Is this manual the same as the one dealers use?

Yes. It’s the exact OEM publication from IHI Construction Machinery Limited.

What if I have a serial number outside WR000001-up?

The manual is written for units starting at WR000001. If your machine is earlier, you may still get 90% of the specs – engine, hydraulics, dimensions – but confirm with your local dealer for any mid-production changes. The troubleshooting and hydraulic sections are valid for all 15NX models with the Yanmar 3TNE68-EIK engine. For newer revisions, check the Ihimer R15 2013 User Manual – OEM Safety & Maintenance Guide which covers updates through 2013. If you’re working on a smaller chassis, the IHI 9NX Hydraulic Mini Excavator Service Guide covers the 9NX.

If you are tired of chasing specs that aren’t in the machine, get the real book. Access the Factory Manual and keep it on your tablet or printed in the toolbox. It’s 121 pages, no fluff, no reprints – just the OEM data you need to fix the Ihimer 15NX right the first time.
