Ihimer 20NX2, 25NX2 Operators Manual – Factory Specs That Keep You Alive

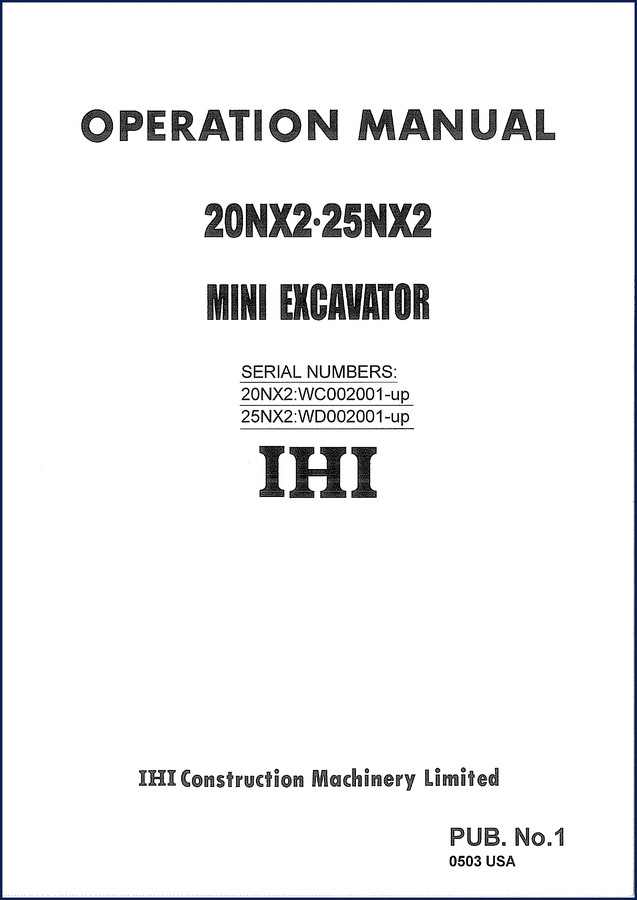

You’re running an Ihimer 20NX2 or 25NX2 mini excavator on a job site in San Antonio heat. The rental yard hands you a photocopy of a photocopy with torque values that don’t match anything you’ve ever torqued. That’s how you blow a hydraulic line or mis-tension a track. This Ihimer 20NX2, 25NX2 Operators Manual is the original factory document – 115 pages – printed for the operator’s compartment. Not a third-party rehash. Not a scan of a scan. It’s what the factory put in the literature holder when the machine left the plant.

I’ve been turning wrenches since before torque wrenches had digital displays. I’ve seen what happens when someone guesses the engine idle speed or skips the break-in procedure on a new excavator. This manual keeps you from being that guy. It’s 115 pages of spec you can trust – right down to the jumper cable polarity sequence on page 2-13. If you’re doing any scheduled maintenance on a 20NX2 or 25NX2, you need this on your tablet or in your glove box.

Safety Information: The Chapter That Might Save Your Life

Section 1 (pages 1-1 through 1-33) is the part most operators skip. Don’t. It covers mounting and dismounting, safe travel, towing, and parking. Page 1-6 details what to check before starting the engine – fuel, coolant, hydraulic oil level, and that the machine is on level ground. If you’ve ever seen a mini excavator roll because the operator didn’t set the track brakes, you’ll read this section. The factory includes warning sign locations and the exact labels that should be on your machine. Aftermarket manuals leave this out. Ihimer put it first for a reason.

Also in the safety chapter: emergency engine stop procedure (page 2-28) and boom lowering with the engine stopped (page 2-27). If you’ve got a hydraulic failure and the boom won’t drop, that procedure is the difference between a field fix and a crane call. Memorize it.

Operation: Controls and Instruments – Page 2-2

You buy a used 25NX2 and the decals are worn off. The joystick pattern isn’t labeled. Page 2-2 shows every switch, lever, and pedal with a numbered diagram. You get the exact nomenclature from section 2-1. The manual also covers jumper cable starting (page 2-13) – it’s not the same as a pickup truck. Battery polarity, ground connection point, cable gauge. Miss that and you fry the ECU.

The break-in operation (page 2-14) is another section I see ignored. Ihimer specifies 50 hours of break-in with reduced load and frequent oil changes. Skip that and you’ll be doing an engine overhaul before 1,000 hours. This manual tells you exactly how to operate the backhoe, attachments, and rubber tracks during that period. It’s not guesswork.

Maintenance Schedule: 50, 250, 500, 1000 Hours – Real Intervals

Section 3 lays out maintenance intervals. It’s not a generic “every 100 hours” list. Ihimer breaks it down by hour meter: daily checks (page 3-4), 50 hours (page 3-10), 250 hours (page 3-15), 500 hours (page 3-20), 1000 hours (page 3-25), and 2-year replacements (page 3-28). The lubrication table on page 3-2 lists grease points with capacities. Use the wrong grease grade and you’ll accelerate wear in the pins and bushings. This manual gives you the straight spec – NLGI grade, quantity in ounces, and the interval.

For the engine oil, the manual references API classification and viscosity grades for your local temperature. San Antonio summers hit 100°F – you need the right weight. The manual tells you. It also covers unusual operating conditions like dusty or high-altitude sites (page 3-30) and long-term storage (page 3-33). If you’re parking the machine for more than 30 days, you need those battery storage and fuel stabilizer guidelines.

Troubleshooting and Hydraulic/Electrical Diagrams

Section 4 (Trouble Shooting) lists common problems and remedies. It’s not a diagnostic flow chart – it’s a table: symptom, possible cause, remedy. For example, if the engine won’t crank, the manual lists battery connections, starter relay, and safety lock lever. No guesswork. Then section 5 gives the hydraulic system diagram (page 5-1) – port locations, pump flow direction, cylinder routing. Section 6 covers the electrical wiring diagram (page 6-1). If you have a short in the harness or need to trace a ground, that diagram is your only friend. Third-party manuals often redraw schematics and introduce errors. This is the factory diagram.

Specifications That Matter: Dimensions, Working Ranges, and Tensions

Section 7 (Specifications) gives general specs, overall dimensions, and working ranges for both the 20NX2 and 25NX2. You get track width, shoe type, digging depth, bucket breakout force. Page 7-2 shows overall dimensions – height, length, width – important for transport loading. If you’re putting this machine on a trailer, you need those numbers to avoid oversize load violations. The working ranges (page 7-3) tell you max reach, dump height, and digging depth. That’s not just marketing data – it’s needed to set up the job site and avoid over-reaching and tipping.

Source Validity: This Is the Factory Manual, Not a Reprint

I’ve bought enough aftermarket manuals that claim “factory specs” but the bolt torque for the swing motor is off by 10 ft-lbs. That’s a leak or a cracked housing. This Ihimer 20NX2, 25NX2 Operators Manual is an original OEM publication – published by IHI Construction Machinery Limited, Pub. No. 1 0503 USA. The serial number range is printed inside: 20NX2 WC002001-up, 25NX2 WD002001-up. If your machine falls in that range, this is the exact manual. No reprint. No third-party “compilation”. It’s the one the factory recommends. See related manuals like the IHI 30NX-2 MINI EXCAVATOR OPERATION MANUAL and IHI 9NX2 MINI EXCAVATOR Operation Manual for other models, or the IHI 35N3 Mini Excavator Operation Manual for the next size up. For more on safe equipment operation, check the Manual Transmission safety guidelines.

Does this manual cover both the 20NX2 and 25NX2 models?

Yes. It is a combined manual for both models, with separate specifications and serial number ranges for each.

How many pages is it?

115 pages total, including full table of contents, safety, operation, maintenance, troubleshooting, hydraulic and electrical diagrams, and specifications.

Can I use this manual for a 20NX2 with serial number below WC002001?

The manual lists WC002001-up for 20NX2. Earlier machines may have differences. Ihimer recommends contacting your local distributor for earlier serial numbers.

What specific torque values are listed in this manual?

The manual does not provide an explicit torque value table in the operators manual – it covers lubrication capacities, track tension, and bolt tightening sequences specific to certain components (e.g., track adjusting cylinder). For full repair torque specs, you would need the service manual. This operators manual focuses on operation and maintenance.

If you’re running an Ihimer mini excavator in the field, you don’t have time to hunt for spec sheets. You need a manual that’s been in the cab since day one. This is it. Access the Factory Manual now and keep your machine running safe and on spec.
