HPI 170-3 Technical Manual – Fuel System and Engine Diagnostics

If you’re working on an HPI 170-3 engine and need the fuel system straight, don’t waste time guessing which line goes where. This Technical Manual is 84 pages of Komatsu-derived factory documentation covering the SAA6D170E-3 common rail fuel system. I’ve seen too many guys pull injectors with no idea about the gravity check valves or the plunger bypass. That gets expensive fast. This manual gives you the OEM breakdown: pump assembly, control valve assembly, injector assembly – all the parts you see on the fuel system diagram on page 1. No aftermarket translations, no guessed pressures.

Troubleshooting the HPI 170-3 Fuel System

The troubleshooting section is what you’ll flip to first when a 170-3 won’t start or runs rough. It’s not a generic list – it’s specific to the HPI system with the gear pump (3A), pump regulator (3B), and the two fuel leak throttles (220 cc/min and 110 cc/min). You know your shop manual when it calls out the shut-off valve (4D) in the fuel rail line and tells you which pressure sensor feeds the ECM. That’s page 2 content right there. If you’ve ever had a 170-3 that sputters under load, this section walks through the timing rail actuator valve and fuel rail actuator valve diagnostics. No fluff.

Fuel System Diagram: What the 84 Pages Cover

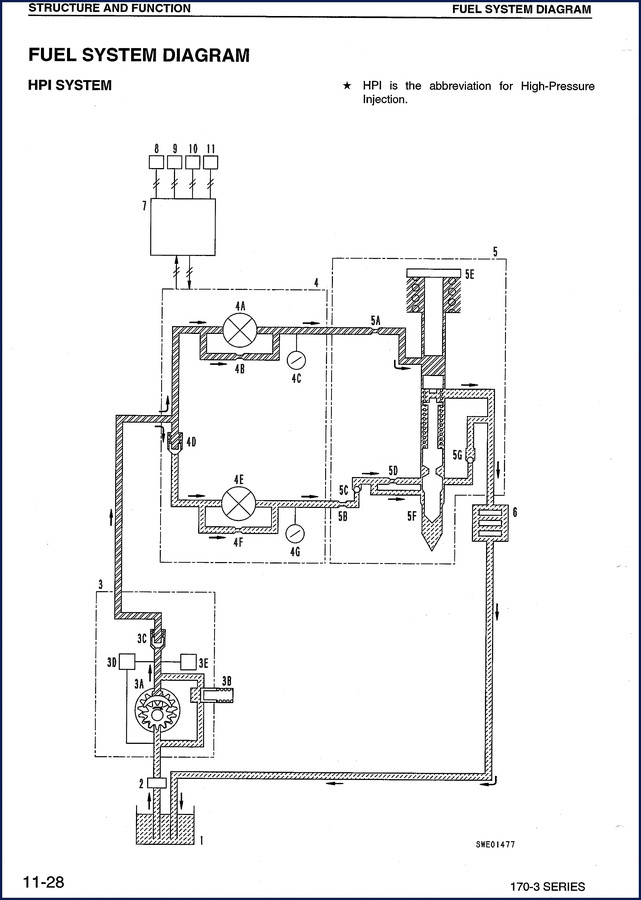

Page 1 shows the full fuel system diagram with all 11 labeled components – from fuel tank to boost temperature sensor. The manual then breaks each subassembly: fuel pump assembly (3A-3E), control valve assembly (4A-4G), and injector assembly (5A-5G). You get the orifice specs – timing orifice (5A), fuel orifice (5B), bypass orifice (5D) – and the gravity check valves (5C, 5G). Need the fuel rail pressure sensor part number? It’s in the list. The manual uses the same numbering as the diagram, so you can trace a fault from the ECM controller (7) back to the atmospheric pressure sensor (9). That’s how you confirm a bad sensor without swapping parts.

Engine Controller Control System Function

The ECM section starting on page 3 covers how the engine controller reads sensor signals and fires the actuators. You get the atmospheric pressure sensor mounted on the control valve unit, the LED indicators (LED-Y, LED-R, LED-O), and the solenoid outputs (SOL-A, SOL-B). This is the logic layer – the manual tells you that the ECM calculates injection timing based on boost pressure (10) and engine speed (8). If you’re replacing an ECM or chasing a wiring fault, this section saves hours. It also warns that some mounted equipment ties into the machine’s own manual, so don’t blame the engine if the problem is in the chassis harness.

Why You Need Factory Specs for the 170-3

Aftermarket manuals for these HPI common rail systems are dangerous. They copy the diagram but leave out the pressure sensor calibration data or swap the actuator valve resistances. This is an OEM print – you can see the original Komatsu part numbers and test procedures. When a customer’s 170-3 won’t build rail pressure, you need the actual 170-3 shop manual, not a generic diesel repair book. This is the same document that dealers use. 84 pages, direct from the manufacturer. No translator guesswork.

Audience Fit: Who Needs This Manual

DIY guys: if you’ve got a machine with the SAA6D170E-3 engine and you’re comfortable with a multimeter and a wrench, this manual will keep you from torquing an injector clamp to the wrong spec. Home garage enthusiasts with a backhoe or generator – this is your bible for the fuel system. Professionals: I’ve used this same manual on a shop floor in San Antonio. You want the trouble shooting tree for the fuel pump actuator? It’s in there. Workshop owners: stop your techs from pulling parts randomly. Hand them this, and they’ll have a plan. By the way, if you need the companion HPI KT900603 Engine Technical Manual, check that out HPI KT900603 Engine Technical Manual. For other heavy equipment, see Drogobych Crane KTA-16/25/28 2004 Installation Manual – Section: Общие Указания and MODULOS DISPONIBLES PARA EL MULTIEQUIPO CJ EURO.

1. Does this manual cover the SAA6D170E-3 common rail engine?

Yes – the entire manual is written for the SAA6D170E-3 fuel system, including the HPI injection components. The table of contents lists “SAA6D170E-3 COMMON RAIL Engine Shop Manual” sections.

2. What page shows the full fuel system diagram?

Page 1. It labels every component from the fuel tank to the boost temperature sensor. Use it for part identification and routing.

3. Can I use this manual to diagnose an engine that won’t crank?

Partially – the troubleshooting section covers fuel-related starting issues. For electrical or mechanical block issues, you’ll need the basic engine shop manual. This manual focuses on the HPI fuel system and ECM control.

4. Why should I trust this over a generic diesel repair book?

Because generic books swap component names and miss the calibration values for the fuel rail pressure sensor (4G) and timing rail pressure sensor (4C). This is OEM documentation used by dealer techs. One wrong pressure spec can crack an injector tip or blow a seal. Don’t gamble – use factory data.

I’ve seen enough misdiagnosis on these HPI 170-3 engines to know that a PDF of the wrong manual is worse than no manual. This one is 84 pages of straight factory content – fuel pump, injector, ECM, and the diagram that ties them together. You need the torque spec for the control valve assembly? It’s in the manual. You need the actuator valve resistance? Look it up. Get the right data, skip the phone call to the dealer. Access the Factory Manual.
