HMC Theta Technical Manual – Stop Guessing and Get the Factory Data

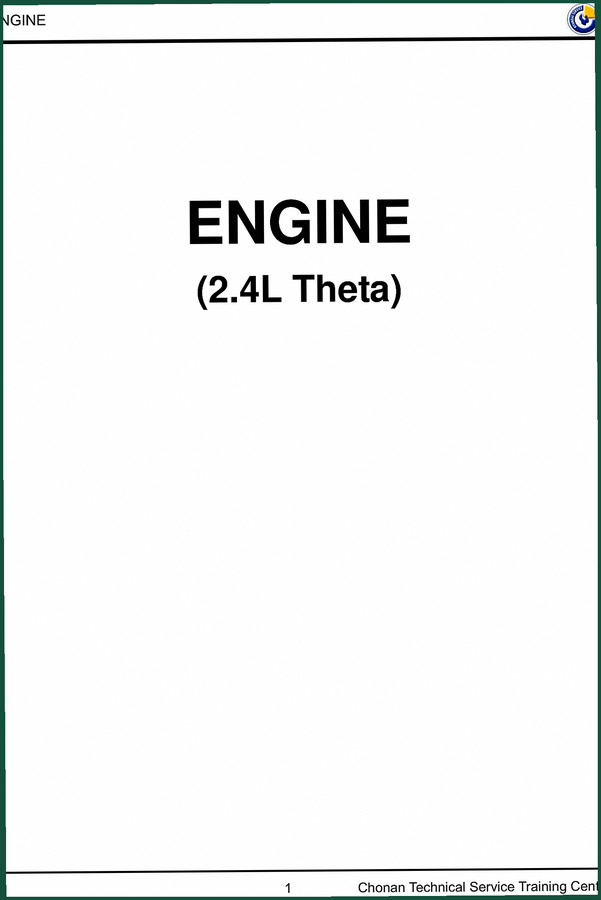

I have seen more engine jobs screwed up by a guy trusting a third-party manual than I care to count. Theta 2.4L? If you are working on one, you want the factory wiring, the real CVVT timing marks, and the PWM cooling fan control logic. Not some reprint from a publisher that never held a ratchet. This 57-page HMC Theta Technical Manual comes straight out of the Chonan Technical Service Training Center. It covers the aluminum block, the balance shaft module, and every sensor that keeps that ECM from throwing a fit.

You want to know what happens when you skip the OEM torque sequence on the cylinder head? Ask the guy who warped his block. This manual has page 26 for tightening methods — no guesswork. The cooling fan controlling table is in there, too. Page 41 tells you which PWM duty cycle matches which coolant temperature. If you are a home garage guy trying to keep that NF-vehicle on the road, this is the difference between a one-afternoon job and a three-week headache.

Cooling Fan Control: PWM System Breakdown

The theta engine uses a PWM-type cooling fan control for better thermal management. Most aftermarket books will tell you “wire it so the fan comes on at 200°F.” That is sloppy. This manual gives you the Structure of Cooling fan chapter with input/output signals and the controlling table. If you need to diagnose a fan that cycles too fast or not at all, find the table on page 14. It lists every relay state and fan speed in binary. You will also find the water jacket capacitance specs — minimized to reduce warm-up time. Do not ignore that when you are doing a coolant system rebuild.

CVVT System: Timing and DTCs

CVVT (Continuously Variable Valve Timing) on the Theta 2.4L is not a black box. The manual breaks it into three sections: General, Components, Operation Mechanism. It also gives you the failure codes (DTC) in section 3.5. If you see P0011 or P0016, you are looking at an oil control valve or a cam phaser that has offset. The Cautions at CVVT maintenance part is critical — it tells you what to do if you rotate the engine backward. That is the kind of detail you do not get from a generic website. You can cross-reference that with Manual Transmission if you’re doing a full drivetrain pull, but stay focused on the valvetrain first.

EMS (Engine Management System): Relay and Injector Specs

Section 5 of this technical manual covers the EMS — engine control relay, fuel pump relay, injector flow specs, purge control solenoid valve, and A/F ratio compensation. If you are chasing a no-start or a lean code, this is where you turn. The ECM in the Theta uses a 32-bit processor. The manual shows the exact pinout for the ECM connector. No aftermarket wiring diagram can match that level of accuracy. I have seen guys melt injector drivers because they used a generic resistance table. Use this manual instead. While you are at it, check out the related Drogobych Crane КТА-16, КТА-25, КТА-28 2004 Installation Manual if you are also handling heavy equipment, but for this engine stick to the Theta book.

Engine Mechanical: Block, Chain, and BSM

Aluminum cylinder block, timing chain system, balance shaft module (BSM), intake and exhaust manifolds. Section 2 of the manual covers all of it. The timing chain is a silent type — but you need to know the tensioner preload spec. The BSM has an oil pump integrated inside. If you are replacing that module, you have to align the balance shafts. The manual shows the alignment marks and the tightening sequence for the ladder frame. This is not assembly advice from a forum. It is the factory procedure that keeps the engine from vibrating itself apart. The chapter on tightening methods (section 2.7) includes a torque-angle chart. You will not find that in a haynes book.

Why Factory Specs Matter – The Aftermarket Trap

I do not care how many stars a third-party manual has on Amazon. If it does not come from the OEM, it is a copy of a copy. This HMC document is a direct scan from the training center in Chonan. No missing pages, no corrupted torque values. The Ignition System section gives you the exact coil dwell times. The Fuel System chapter (section 2.13) lists fuel pressure and injector flow rates. You want to diagnose a hesitation? Check the accelerator position sensor calibration in section 4.2. That data is OEM-validated. For other engine families, you might need MODULOS DISPONIBLES PARA EL MULTIEQUIPO CJ EURO or Minsk MMVZ-3.11212 Technical Manual, but for the Theta, this is your only reliable source.

If you still think any manual will do, go ahead and use a Haynes on a 2.4L Theta. Then call me when your CVVT is stuck and the ECM won’t initialize. I will be here, working from the factory sheet.

Does this manual cover the fuel system?

Yes. Section 2.13 covers the fuel system, including injector specs and purge control.

Can I use this manual to replace the timing chain on a Theta 2.4L?

Yes — the manual includes the timing chain system (section 2.2) with the BSM alignment procedure and tensioner specs. However, you will also need the proper cam-holding tools and a torque wrench that reads in degrees. The manual tells you the required tool list indirectly by showing the tightening method. Do not attempt the job without seating the chain tensioner properly. I have seen a chain jump after assembly because someone skipped the slack check. The manual’s step-by-step on page 17 walks you through it. Also reference the Camshaft and Valve Train sections (2.8, 2.9) for lash adjustment — the Theta uses Mechanical Lash Adjusters (MLA), so you need a feeler gauge set with 0.001-inch increments. If you are also working on other drivetrain components, the Manual Transmission section of that vehicle might apply, but keep the scope tight on this engine manual for now.

Access the Factory Manual now. No reprints. No guesswork. 57 pages of HMC Theta technical data that belong on your workbench.
