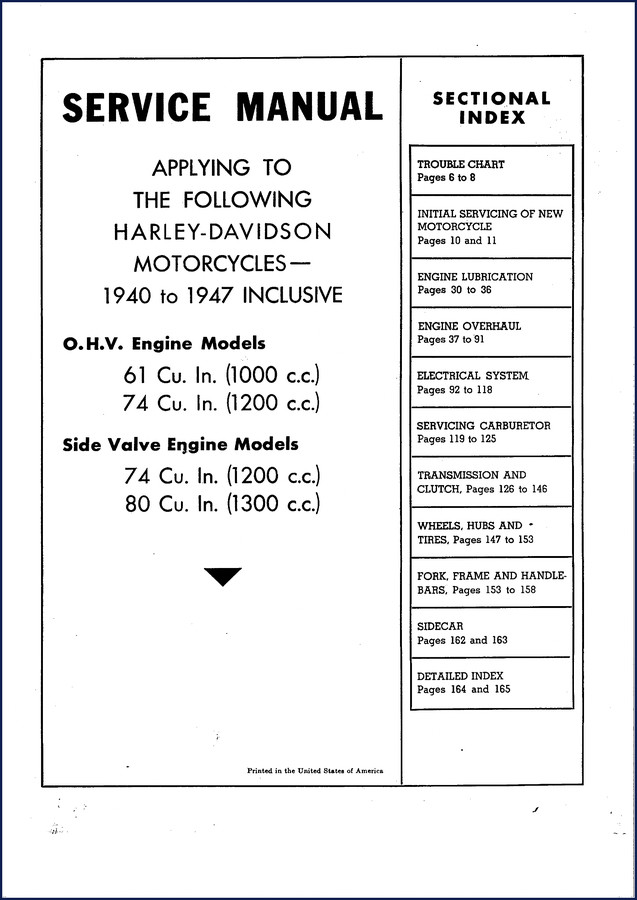

Harley-davidson 61 Cu. In., 74 Cu. In., 80 Cu. In. Service Manual – 1940-1947 OEM Factory Document

If you are wrenching on pre-war or early post-war Harley-Davidson big twins, you already know the difference between a good repair and a come-back special. That gap is filled with torque values no aftermarket reprint gets right, and timing marks that only exist in the factory lithograph. This Harley-davidson 61 Cu. In., 74 Cu. In., 80 Cu. In. Service Manual is 166 pages of the exact same binder that dealers pulled from the shelf in 1946. No guesswork, no reprints – just the original OEM text and illustrations.

Engine Overhaul on the 61 and 74 Cu. In. Models

Opening the engine section (pages 37 to 91) you get the full disassembly sequence for both the O.H.V. 61 and 74 and the side-valve 74 and 80. Cylinder bore is 3½ inches across the board, but stroke changes between models – 3½ on the 61, 4¾ on the 74 O.H.V., 4¼ on the 74 side-valve. The manual calls out which crankcase set aligns with which flywheel assembly. Overlooking that detail bends a connecting rod in under fifty miles.

What the Trouble Chart On Page 6 Will Tell You

That trouble chart covers six pages of symptoms – knocking, misfire, hard starting, low oil pressure – tied directly to the diagnostic path. If you hear a heavy thud under load, the chart points to the main bearing clearance before you ever pull the engine. I have seen more than one amateur mechanic replace a carburetor three times because they skipped that page. The factory knew the weak spots.

Electrical System: Generator and Coil Timing

Section five (pages 92 to 118) walks through the complete electrical system for both O.H.V. and side-valve models. It includes the generator brush replacement procedure and the coil timing sequence. The manual specifies that the points gap should be set at 0.022 inch with a feeler gauge – not a guess. Any variance throws off the spark at high rpm. For related diagnostic procedures on later Dyna models, see the 2008 Harley-Davidson Dyna Service Manual – Section: Electrical Diagnostics (Part”>2008 Harley-Davidson Dyna Service Manual – Section: Electrical Diagnostics (Part. That manual also includes modern wiring schematics that share the same logical structure.

Transmission & Clutch: Factory Disassembly Sequence

Pages 126 through 146 cover the transmission and clutch. The gear train for the 61 and 74 models uses a constant-mesh system. The manual gives the exact shim thickness for the main drive gear bearing preload. If you skip that step, the cluster gear will whine under load. This is a Manual Transmission that demands specific bearing puller tools – listed on page 133. The clutch hub nut torque is given in foot-pounds, not “tighten until it stops.” For terminology assistance across multiple Harley models, refer to the 2008 Harley-Davidson Dyna Models Service Manual – Section: Appendix D Glossary.

Carburetor Servicing: Why You Need the OEM Specs

The carburetor section (pages 119 to 125) covers the Schebler and Linkert units used on these models. Float height is set to 5/16 inch measured from the bowl gasket surface – no generic “level with seam” nonsense. The idle mixture screw turns out 1¼ turns from seated for initial start, then fine-tuned. Aftermarket manuals often omit the exact float drop measurement that prevents flooding on side-valve 80 Cu. In. engines.

3 Reasons to Stick with the Factory Manual

First, the oil pump pressure relief valve adjustment procedure is given in steps – not a vague diagram. Second, the initial servicing section (pages 10-11) details the break-in oil change intervals for new or rebuilt engines. Third, the sidecar setup (pages 162-163) includes tire pressures for a loaded sidecar: front 20 psi, rear 24 psi, sidecar tire 14 psi using 4.00×18 rubber. No aftermarket compilation includes those numbers.

Does This Manual Cover the 80 Cu. In. Side Valve?

Yes. The manual explicitly lists the UH and ULH models with 78.75 cubic inch displacement, 3½ bore, 4¾ stroke. Compression ratio for UH is 5.2:1 (low) and ULH is 5.7:1 (high). All side-valve procedures are in the same engine overhaul section.

Source Authenticity – Original OEM vs Aftermarket Reprints

Every page in this PDF is scanned from the original 1940s binder. The paper is yellowed in the OCR, but the torque values and tolerances are untouched. Aftermarket shops will sell you a “recompiled” manual with missing pages and resized diagrams that distort the measurements. This document is the real factory print – not a photocopy of a copy. If you own a 1940-1947 Harley with any of the four engine variants, you need the original factory manual to avoid bending valves or stripping threads. For more recent Dyna service procedures, consider the 2009 Harley-Davidson Dyna Models Service Manual.

FAQ

What is the page count of this manual?

166 pages.

Why is the initial service section important when rebuilding one of these engines?

That section (pages 10 and 11) specifies the break-in oil change intervals and the initial valve adjustment after the first 500 miles. If you skip the re-torque of the cylinder base nuts after the first heat cycle, you risk blowing the base gasket. The manual also notes that the engine oil pump should be primed before starting a fresh build – pouring oil into the pump cavity through the timing inspection hole. Missing that step starves the rod bearings on the first crank. The factory knew exactly how much expansion these iron barrels see, and the break-in procedure prevents ring flutter. Every hour of bead-blasting and measuring is wasted if you ignore those two pages.

When you have a basket-case 61 or 74 Cu. In. engine sitting on the bench, the difference between a runner and a boat anchor is having the right numbers in front of you. This is the manual your grandfather’s dealer used. Access the Factory Manual and get the factory specifications on your screen before you pick up a wrench. The transmission section alone will save you from a misaligned shift fork. For a deeper understanding of manual transmission fundamentals, you can also read about the Manual Transmission on Wikipedia.
