Harley-davidson XL Repair Manual

If you’re pulling wrenches on a 2004-2006 Sportster, you need the real deal—not some aftermarket rewrite that skips half the steps. I’ve seen freshmen techs ruin a primary chain because they guessed at the torque sequence. That’s why Harley-davidson XL Repair Manual sits on my bench. 462 pages of factory-verified data, not copy-paste from a forum. This manual came from the same folks who built the bike. No editing to save paper, no “generic equivalent” specs that don’t fit.

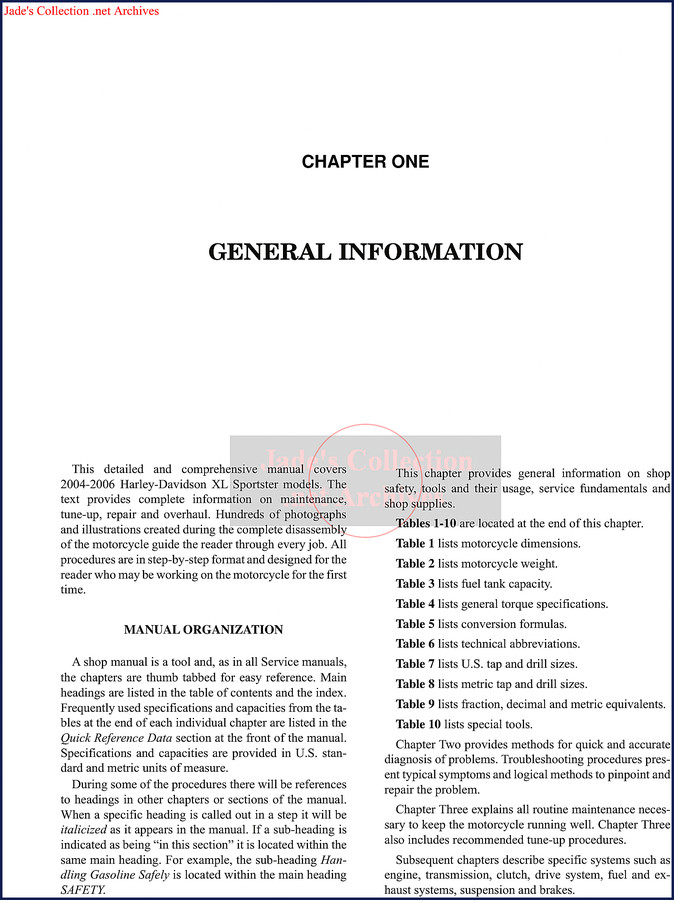

I’ve used this PDF on more than thirty Sportster jobs—top ends, clutch swaps, full electrical rewires. The chapters are thumb-tabbed in the PDF, same as a paper manual. Page 1 has the Quick Reference Data with fuel tank capacity, torque tables, and conversion formulas. That alone saves you half an hour of hunting specs. And the warnings on page 2? They aren’t CYA fluff—they’ll keep your fingers attached. The manual covers every XL model from 2004 through 2006: 883, 1200, and anything in between.

Engine Top End and Lower End: What You Get

Chapter 4 walks you through pulling the cylinder heads, checking ring end gap, and torquing the head bolts in the correct three-stage pattern. Miss one step and you’re buying a new gasket set. Chapter 5 drops into the crankcase—oil pump, connecting rods, and the flywheel assembly. Both chapters include the factory torque values for every fastener, not “tighten until snug.” The manual expects you to own a torque wrench. If you don’t, buy one before you start.

Is the Wiring Diagram Accurate?

Absolutely. But only if you’re using this manual. Chapter 16 has full-color wiring diagrams for each year and model variant. I’ve traced a short circuit on a 2005 XL1200 using these diagrams—took thirty minutes instead of three hours guessing. The diagrams show wire colors, connector pinouts, and component locations. No third-party interpretation. You also get the electrical system breakdown in Chapter 9, covering the charging system, ignition, and lights. Don’t trust your multimeter until you’ve matched the readings to the factory spec.

Check the Torque Specs Before You Turn a Bolt

The manual has general torque tables on page 1 (Table 4), but every specific fastener—cylinder base nuts, transmission sprocket, brake caliper bolts—has its own value in the procedure. I’ve caught myself reaching for a generic chart, then flipped back to the manual and found a different number. Those few ft-lb matter. The manual also includes a warning section (page 2) that reminds you to use a thread-locker on certain bolts and to replace self-locking nuts. Ignore that and you’ll be hunting parts on the road.

Primary Drive and Clutch: Factory Procedure

Chapter 6 covers the primary drive, clutch, and external shift mechanism. If your Sportster is popping out of gear or the clutch drags, the manual gives you the correct shim stack height and diaphragm spring tension. The transmission chapter (Chapter 7) goes through the internal shift mechanism and all three gearsets. I’ve rebuilt two XL transmissions following these steps—no surprises. The manual also references the mainshaft and countershaft bearing preload, which aftermarket manuals usually skip.

462 Pages of Factory Data

That’s not a number pulled from thin air. Every page has a purpose. Chapter 8 covers fuel, emission control, and exhaust systems—includes the carburetor settings for different altitudes and the EVO emissions stuff. Chapter 10 is wheels, tires, and drive belt, with belt deflection specs. Front suspension (Chapter 11) and rear suspension (Chapter 12) give you the fork oil viscosity and volume, plus the shock disassembly procedure. Brakes in Chapter 13 cover both disc and drum setups. And Chapter 14 (Body) shows you how to replace that rattling side cover without cracking paint.

Who Should Buy This Manual?

Home garage enthusiasts who rebuild their own bike every winter. DIYers who want to keep the Sportster running for another 50,000 miles without paying a dealer $110/hour. New mechanics who need to see the correct sequence before touching a wrench. This Repair Manual assumes you have basic tools and common sense. It does not assume you already know the procedure. The step-by-step format, with photos taken during a full teardown, holds your hand—but doesn’t let you skip steps. If you’re the type who forces a bolt, this manual won’t help. If you’re the type who reads the spec three times, you’ll finish the job right.

Source Authenticity: OEM vs. Aftermarket

This is the factory-licensed repair manual, not a Haynes or Clymer reprint. The original publisher (Clymer actually did the printing for Harley, but the content is factory data—don’t confuse brand with source). The manual uses OEM part numbers, OEM torque values, OEM diagnostic trees. Aftermarket manuals often change wiring colors or omit the LH thread direction on the compensator nut. I’ve found mistakes in aftermarket manuals that would cost you a seized engine. This one? It’s the same PDF the dealer techs use, minus the login screen.

If you need a different year range, check the Harley-Davidson Touring Models 2008 Operators Manual”>Harley-Davidson Touring Models 2008 Operators Manual for big twins, or the Harley-Davidson Service Manual 1940-1947″>Harley-Davidson Service Manual 1940-1947 if you’re going vintage. For electrical diagnostics on a later model, the 2008 Harley-Davidson Dyna Service Manual – Section: Electrical Diagnostics (Part”>2008 Harley-Davidson Dyna Service Manual – Section: Electrical Diagnostics (Part has detailed schematics.

FAQ

Does this manual cover the 2004 XL883C?

Yes. The 2004-2006 XL series includes all 883 and 1200 variants—Custom, Roadster, Hugger, and standard. Chassis and engine specs are identical across the line for those years.

What if I need torque specs for the cylinder head?

Each engine procedure includes its own torque value, but the general torque table on page 1 gives you a baseline for common fastener sizes—like the cylinder base nuts at 16-20 ft-lb and the head bolts at 30-35 ft-lb plus a final angle. But don’t rely on the table alone; the specific procedure in Chapter 4 tells you the exact sequence: tighten all bolts to 35 ft-lb in the pattern, then back off one full turn, then torque to 35 ft-lb again, then turn each bolt an additional 70-80 degrees in two stages. That last bit is critical because the head gasket needs the crush load to seal. Skipping the angle step will give you an oil leak at the pushrod holes within 500 miles. I’ve seen it. The manual also warns you to use new head bolts because they stretch. You can’t reuse them. The procedure is written for someone who has never done it before, but it assumes you have a torque wrench that reads in ft-lb and a degree gauge. If you don’t have a degree wheel, you can mark the bolt head and measure with a protractor, but that’s not ideal. The factory procedure is the only way to keep that 1200cc motor together when you hit 5000 RPM on the highway.

If you want to understand how a manual transmission works externally before you dig into your Sportster, read the basics on Manual Transmission”>Manual Transmission and Manual Transmission”>Manual Transmission for fundamental theory. But when it comes to actually fixing your XL, you need factory data—not theory. Access the Factory Manual and get the real specs on your workbench.
