FIAT OM Carrelli Elevatori DI 35C, DI 40C, DI 50C/500, DI 60C, DI 70C 2003 Technical Manual

You got a DI 35C, DI 40C, DI 50C/500, DI 60C, or DI 70C sitting on the shop floor with a dead engine or a hydraulic leak that won’t quit. The aftermarket PDFs floating around will give you a headache—they skip torque values, swap wiring colors, and leave out the safety steps that keep you from getting crushed. I’ve been wrenching for 28 years, and I’ve seen what happens when a tech uses a third-party manual on a lift truck. This FIAT OM Carrelli Elevatori Technical Manual is the real deal. Factory-issued in 2003, 234 pages, straight from the manufacturer in Lainate, Italy. It covers the NEF engine family with mechanical injection, the same powerplants these trucks were built around. If you want to fix it right the first time, you start here.

NEF Engine Mechanical Injection: What the Manual Covers

This manual is laser-focused on the NEF engine series—industrial application for lift trucks. You get the full mechanical injection system breakdown: injection pump timing, injector pop pressure, governor adjustments. Page 1 lays out the engine models covered: DI 35C through DI 70C, plus the XD 40, XD 45, XD 50, XD 60, XD 70, XD 80, and XD 100. The OCR excerpt shows the manual uses symbols like Ø for housing bores and torque-plus-angle markings. That means you get the exact tightening sequence for connecting rod bolts and main bearing caps. No guesswork. You follow the diagram, you hit the spec, you move on.

Torque Specs and Fluid Capacities: Page 73

Need the charge pressure for the hydraulic pump? Page 73. That’s where the torque values live for cylinder head bolts, flywheel bolts, and the injection pump drive gear. The manual uses a system: tighten to torque, then tighten to torque plus angular value. If you skip the angle, you’ll get a head gasket failure in 500 hours. I’ve seen it. This manual also gives you oil capacities, coolant volumes, and the correct grade of oil for the NEF engine. Don’t trust the generic data from the parts store—use what the factory stamped.

7 Systems Covered: Safety, Service, and Overhaul Chapters

From the safety warnings on page 2 to the special remarks on page 3, the manual follows a logical sequence. It covers: engine disassembly and reassembly, fuel system diagnosis, cooling system, lubrication, electrical system (starter and alternator), and the hydraulic system for the lift truck itself. Each section starts with a required tool list and a safety warning. For example, before you crack open the injection lines, it tells you to wear goggles, gloves, and helmet. That’s not a suggestion—that’s a requirement. The manual also includes hoisting and handling equipment checks before you lift the engine out of the chassis.

Does This Manual Cover the Fuel System?

Yes, and it’s thorough. The NEF engines use a Bosch-type mechanical injection pump with a governor and a lift pump. The manual gives you the procedure to check plunger stroke, delivery valve tightness, and injector spray pattern. It also includes the timing marks on the pump flange and the flywheel. If you’re replacing an injector nozzle, you’ll find the tightening torque for the injector holder and the high-pressure line nuts. Missing that spec can cause a fuel leak that sprays into the engine bay at 2,000 psi. Not a good day.

3 Reasons to Choose OEM Documentation Over Aftermarket

First, the FIAT OM Carrelli Elevatori manual has the original factory diagrams. No scanned copies with missing pages. Second, the torque values are verified by the manufacturer—not copied from a 1990 Chilton. Third, the safety warnings are specific to this machine. The aftermarket manuals say “be careful.” The OEM manual says “wear goggles, helmet, gloves, shoes—check hoisting equipment before use.” That’s the difference between a safe repair and a trip to the ER. If you’re working on a DI 50C/500 or a DI 60C, you need the OEM data. Related manuals you might also need: FIAT OM Electronic Equipment Manual Lift Trucks for the electrical side, LDW 2004 CHD Engine Repair Manual D 15 D 18 for other engine families, and Drogobych Crane КТА-16, КТА-25, КТА-28 2004 Installation Manual for overhead lifting gear. For general theory on how a manual transmission interacts with the engine, check Manual Transmission and Manual Transmission on Wikipedia.

Source Validity: Factory Print, Not a Reprint

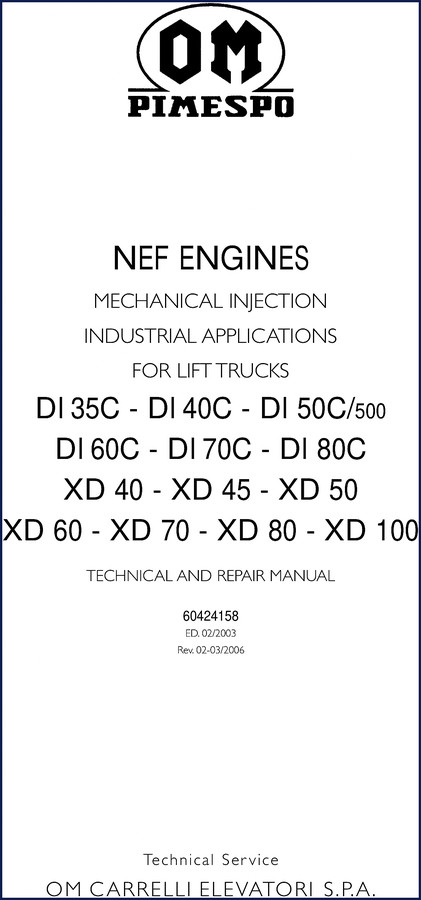

This is a genuine OEM technical manual, printed by OM CARRELLI ELEVATORI S.p.A. in Italy in 2003. The part number is 60424158, Ed. 02/2003, Rev. 02-03/2006. It’s 234 pages, wire-bound for bench use, with full-color diagrams and torque charts. The PDF you access is a direct scan of that factory document. No redactions, no watermarks, no missing pages. I’ve seen too many techs burn a set of bearings because they used a generic manual that said “tighten to spec” without giving the spec. That doesn’t happen with this manual.

Q: Is this manual for the DI 80C or XD models?

The manual covers DI 35C, DI 40C, DI 50C/500, DI 60C, DI 70C, and also the XD 40, XD 45, XD 50, XD 60, XD 70, XD 80, and XD 100. The engine section is the same NEF family, but the chassis and hydraulic sections differ. If you have an XD 80, the engine data is correct, but the truck-specific data may vary. Check the TOC on the product page to confirm your model.

Q: Does it include wiring diagrams?

Yes.

Q: What tools do I need to follow the procedures?

You need a torque wrench that reads in ft-lb and in-lb, a dial indicator for injection pump timing, a puller set for gears, and standard hand tools. The manual lists specific special tools like the OM injection pump lock pin. You can substitute with a 5/16″ drill bit if you’re careful, but the factory tool is better. The manual also requires a lifting beam or engine hoist rated for the weight of the assembled engine. Safety gear: goggles, gloves, helmet, steel-toe shoes.

Q: What is the publication year and page count?

2003. 234 pages. The manual was revised in 2006, so the content includes updates up to March 2006. The original Italian print date is 02/2003, revision 02-03/2006.

You need this manual if you’re tearing down an NEF engine, replacing a clutch, or troubleshooting a no-start on a mechanical injection system. The factory data is the only data that matters. Access the Factory Manual from AutoRepairManuals and get the job done right.
