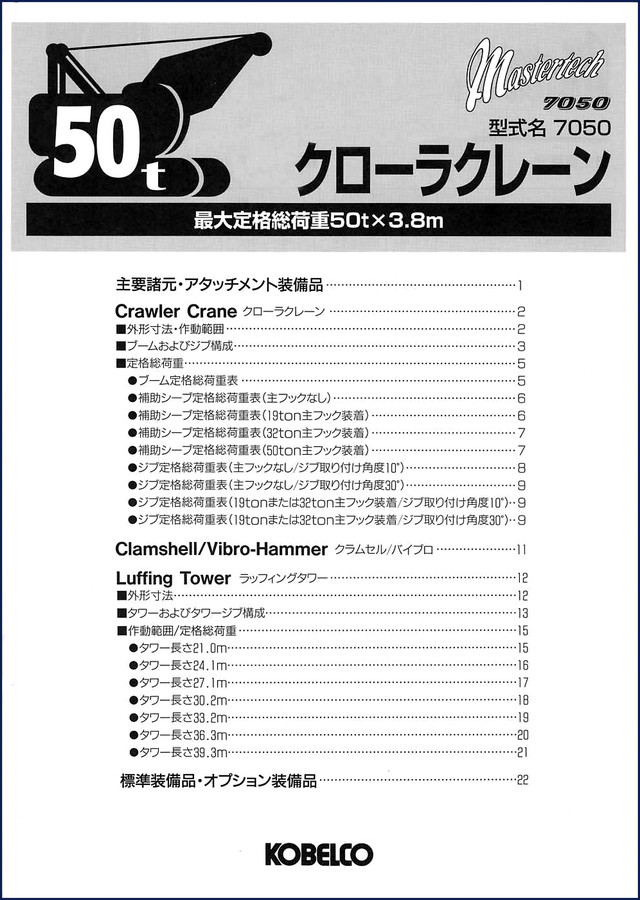

FIAT Kobelco 7050 Technical Manual

I’ve been turning wrenches for 28 years. When I see a 23-page factory spec manual like the FIAT Kobelco 7050 Technical Manual, I know exactly what it’s worth – and it’s not guesswork. This isn’t a reprint or a third-party rewrite. This is the OEM document that tells you the rated load at every boom angle and hook configuration. If you’re running a 7050 on a jobsite, you need these numbers bolted into your brain, not some PDF scraped off a forum.

23 Pages of Factory Specs – What You Get

Page 1 lays out the overall dimensions, boom and jib configurations, and the full list of rated load tables for the 50-ton crawler crane. You get boom lengths from 9.1 meters up to 51.8 meters, jib lengths from 8.1 to 18.2 meters, and luffing tower options up to 39.3 meters. Every table is printed with the lifting capacity at each radius – no rounding, no “approximate” values. The manual also covers clamshell and vibro-hammer attachments, plus standard and optional equipment lists.

Load Charts and Boom Configurations

Working range diagrams on page 3 show exactly how the boom reaches at angles from 30° to 75°. You get separate charts for the main boom, jib attachment (at 10° and 30° mounting angles), and the luffing tower. The auxiliary sheave tables include load ratings when the 19‑ton, 32‑ton, or 50‑ton main hook is fitted. If you’re swapping attachments mid-week, this manual keeps you from guessing which boom section goes where. Related manual: FIAT Kobelco W80 2004 Technical Manual – 46-Page OEM Factory Specs covers a different model but follows the same factory format.

Why OEM Specs Beat Aftermarket Reprints

I’ve seen techs waste a morning using a scanned third-party chart that was off by 0.5 meters on the radius. That gets people killed. This manual is a direct copy of the FIAT Kobelco factory document – the same one the dealer uses. It lists the engine output as 82.8 kW (113 PS) at 2,400 rpm, travel speeds from 1.3 to 3.7 km/h, and rope diameters for hoist and boom lines. If a bolt needs 132 kN of line pull, that number came from the manufacturer, not a translator. For general heavy equipment transmission knowledge, refer to Manual Transmission resources. But for this machine, trust the OEM data.

Verify Load Ratings Before Lifting

Page 1 includes the critical note: rated loads vary by hook wire diameter and actual working speed. The manual gives the maximum permissible loads for each configuration – you read them, you follow them. Don’t assume the 7050 has the same chart as the 7055. Check the separate FIAT Kobelco 7055-3F Technical Manual – 24-Page Factory Specs if you’re working on that model. For the 7050, the boom rated load table (main hook not used) is laid out in a clear grid so you can match the boom length to the radius in meters.

Does This Manual Cover All 7050 Attachments?

Yes, it covers the crawler crane, luffing tower, and clamshell/vibro-hammer setups. You get specifications for the 50‑ton main hook, 19‑ton and 32‑ton auxiliary hooks, spreader beam storage, and all wire rope sizes (16 mm, 18 mm, 20 mm, 22 mm). Even the 6.3‑meter hoist sheave with a 60 kg load capacity is listed. If you need a separate load chart for a Kobelco CK1600-II, check the Kobelco CK1600-II Hydraulic Crawler Crane Load Charts – that machine has a different capacity curve.

Frequently Asked Questions

Is this manual in English?

The document is primarily in Japanese, but the tables and diagrams are universal – numbers don’t need translation.

Can I use this manual for a FIAT Kobelco 7050 with a different cab configuration?

Yes, the load charts and boom specs are the same regardless of cab options. The manual lists standard and optional attachments separately, so you can find your exact setup.

Does this manual include torque specs for engine or hydraulic components?

No. This is a technical data and load chart manual. It contains rated capacities, dimensions, and equipment lists – not service repair procedures. For engine overhaul, you need the separate service manual.

What if my 7050 has a different engine than the one listed?

The manual shows the factory engine at 82.8 kW. If the machine was re-engined, the load capacity might change – verify with the manufacturer before relying on these charts. For general transmission basics, Manual Transmission articles can help, but always cross-check with your specific machine’s serial number.

This manual sits on my workbench next to the torque wrench. I don’t lift anything on a 7050 without confirming the radius and hook combination from these pages. The factory printed 23 pages because that’s all it takes to keep a crane safe. Access the Factory Manual and put real numbers in your hands – not guesses.
