Dieci Pegasus 45.21 Parts Catalog – OEM Spare Part Breakdown

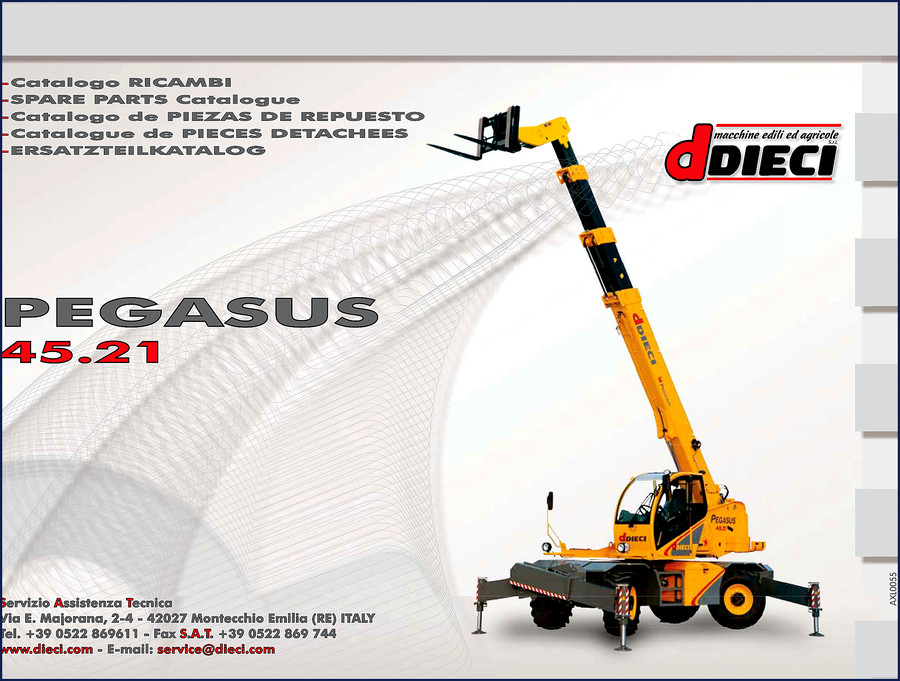

If you are trying to find the correct hydraulic cylinder seal kit for a Dieci Pegasus 45.21 and you are flipping through an aftermarket catalog that shows a generic drawing, you are wasting your time. I have seen guys order three different seal kits before they get the right one, because the aftermarket book used a composite drawing that covers three different telehandler models. That costs you money and downtime. This Parts Catalog – 245 pages of OEM data – gives you the exact exploded view with the Dieci factory part number for every nut, bolt, hose, and piston in that machine. Page 1 shows the four-language header and the first group breakdown. Page 3 explains the symbols: DX (right) and SX (left), and the asterisk for optional items not fitted on the base machine. You need that level of detail if you want to order once and be done.

Group Division and Indexing System

The catalog is divided into groups. Each group holds a set of spare parts tables (tavole ricambi). The tables contain the drawings, and each drawing lists the components with their position numbers, quantities, and original part numbers. Groups are organized by machine sections – engine, transmission, boom, chassis, hydraulics, cab, electrical. If you need the boom cylinder lower pin, you find the boom group, then the cylinder sub-group, and there it is with the Dieci ID. Do not skip the index. Flip to the group index at the front (page 1 outline), find your group number, then go to that section. It is not complicated, but you have to follow the order. I have seen technicians leaf through the whole book because they could not be bothered to read the index. That wastes time.

Exploded Diagrams: What Each Drawing Tells You

Every drawing is a 3D-like exploded view of the component assembly. Parts are numbered with balloons, and the corresponding table below lists the part number, description, and quantity. For example, the braking system group will show the master cylinder, calipers, brake pads, and all mounting hardware. If a bolt is shown but marked with a slash (/) it means that bolt is not supplied separately – you order it as part of a kit or assembly. The asterisk (*) indicates an optional accessory. That matters. If you order a part that is optional without verifying your machine configuration, you are stuck with a shelf queen. Call Dieci support before ordering optional parts; the catalog itself says to contact the assistance office.

Why OEM Parts Catalog Beats Aftermarket Reprints

Aftermarket parts catalogs for European construction equipment like this Dieci Pegasus 45.21 often combine multiple model years into one generic page. They shuffle part numbers, omit superseded parts, and sometimes use old drawings. This catalog is a direct factory PDF – the same document that the Dieci service department uses. Every part number is current as of the publication date. The catalog includes the official Dieci disclaimer that specifications may change, but the parts listed are the ones Dieci will reference when you call in. If you rely on a reprint, you risk ordering a part that has been replaced by a different number. Then you wait another week for the correct part. No.

How to Use the Catalog to Order Parts Correctly

Write down the machine serial number. Open the catalog to the group index. Identify the group containing the part you need. Find the exploded diagram for that sub-assembly. Note the position number and the part number from the table. Double-check the quantity column – some bolts are used in pairs. If the part has a note like “not supplied separately”, refer to the kit part number listed on the same line. Then call your Dieci dealer or use the contact info on page 2 (full address and phone). This process takes five minutes. Doing it blind from memory takes three weeks and a restocking fee.

Audience Fit: Who Actually Needs This Catalog?

If you own a Dieci Pegasus 45.21 telehandler and you do your own maintenance – or if you supervise techs who do – you need this catalog. It is not a service manual. It does not tell you how to remove the cylinder or what torque to use. That is covered in the Dieci Pegasus Telehandler Operators Manual AXH1154/UK – Section: Cleaning The Wi. But the parts catalog is the cross-reference that stops you from ordering the wrong part. Home garage enthusiasts working on farm equipment or small construction sites will find it equally useful, because nobody wants to haul a telehandler to a dealer just to get a part number. The book is 245 pages, printed quality from the factory.

None of that matters if you don’t use it correctly. Read the symbols on page 3. Understand what DX and SX mean – the catalog uses right and left from the operator’s perspective facing forward. If you ignore that, you will order the left-side brake caliper when you need the right-side one. I have seen it happen.

FAQ

Does this catalog include torque specifications?

No. This is a parts catalog, not a service manual. It lists part numbers and quantities.

How do I know if a part listed in the catalog is still available from Dieci?

Dieci reserves the right to modify features and parts in line with product development. The catalog reflects the parts as of the publication date. If a part number has been superseded, Dieci’s assistance office will provide the current number when you reference the old one. You will need your machine serial number and the exact part number from these pages. Contact Dieci service via the info on page 2 – phone +39 0522 869611 or email service@dieci.com. Their parts desk can cross-reference the old number to the new one. Do not assume availability because the part is drawn; check with the factory if the machine is older than five years.
