Caterpillar 416C, 416D, 420D, 428D, 426C 2003 Technical Manual – Bench Test Specs

Description

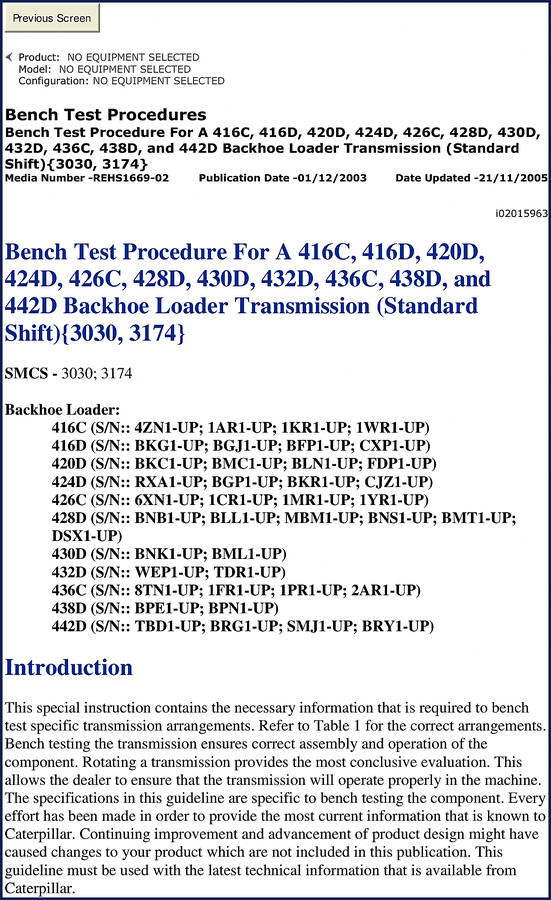

If you’ve ever rebuilt a backhoe loader transmission on a Saturday only to have it slip on Monday, you know the feeling. You missed a spec. Or worse, you trusted a third-party manual that got the charge pressure wrong. This 41-page Caterpillar 416C, 416D, 420D, 428D, 426C 2003 Technical Manual is the factory bench test procedure for the standard shift transmission. No guesswork, no aftermarket shortcuts. Just the specs Caterpillar used when the transmission came off the line.

What the Caterpillar 416C, 416D, 420D, 428D, 426C 2003 Technical Manual Covers

This document is a single-purpose manual: bench testing the transmission. It applies to backhoe loaders like the 416C (S/N 4ZN1-UP) and 428D (S/N BNB1-UP). The manual lists specific transmission arrangements per model. Table 1 on page 2 matches each machine to its arrangement number. For example, a 420D uses 185-7586. A 424D uses either 185-7586 or 185-7585. That level of detail is what you need to order the right seals and gaskets before you pull the transmission. If you need the parts to go with this test, grab the Caterpillar 416C 1999 Parts Catalog for the 416C.

Bench Test Procedures: Rotating the Transmission

The core of this manual is the bench test procedure. It tells you to rotate the transmission for the most conclusive evaluation. This isn’t a static check. You need a test bench that can apply load and verify clutch pack engagement. The manual walks through each step: connecting lines, setting pressures, running through shift patterns. Without these steps, you’re just spinning the input shaft and hoping. For a basic understanding of how a Manual Transmission works, this factory procedure ensures your rebuild meets assembly tolerances.

Collecting Test Data: Averages and Comparisons

Many techs skip the data collection part. The manual emphasizes collecting data from each test bench and maintaining averages from the last 20 transmission arrangements. This is how you catch a worn pump or a sticking valve before the transmission goes back in the machine. If you only test and forget, you lose the benchmark for the next unit. Page 2 shows the data collection procedure. Use it. The manual instructs you to record pressure readings at various points, oil flow rates, and shift timing. Compare each reading against the running average for that transmission arrangement. A deviation of more than 5% means something is wrong. You cannot rely on generic specs from an online forum – every test bench has different plumbing and hose lengths. The factory procedure accounts for that variability by having you establish your own baseline. This is the difference between a rebuild that lasts and one that comes back on a hook.

Safety: Escaping Fluid Under Pressure

One sentence on page 2 should make you stop: “Personal injury or death can result from escaping fluid under press.” That’s not a suggestion. When you pressurize the transmission on the bench, the oil is hot and under hundreds of psi. Leaks can inject hydraulic oil through your skin. This manual includes that warning for a reason. Follow the lockout/tagout procedures and wear proper PPE. Ignore that warning at your own risk.

Transmission Arrangements and Model Coverage

The manual covers eleven machine models: 416C, 416D, 420D, 424D, 426C, 428D, 430D, 432D, 436C, 438D, 442D. For each, it specifies which transmission arrangement to bench test. The 416C and 426C use 107-3762. The 416D and most others use 185-7586. Don’t assume your 428D uses the same arrangement as a 420D – check the table on page 2. This manual eliminates that guesswork. If you work on the 416D often, pair this with the Caterpillar 416D 2004 Parts Catalog for complete rebuild data.

Why This Manual Beats Aftermarket PDFs

Aftermarket manuals often copy the first edition and leave out updates. This is the 2003 Caterpillar Technical Manual with publication date 01/12/2003 and updated 21/11/2005. It includes serial number prefixes so you know if your machine is covered. You won’t find a third-party site that has the exact bench test procedure for a 442D transmission arrangement 185-7586. If you want the same information Caterpillar dealers use, this is it. Unlike a generic Manual Transmission guide, this gives you the numbers for your specific machine.

FAQ

Does this manual cover the 424D?

Yes, it includes the 424D with transmission arrangement 185-7586 and 185-7585.

How do I collect and use test data correctly?

The manual instructs you to record data from your test bench for each transmission arrangement. Since conditions vary between benches, you must collect your own baseline. Then maintain a running average of the last 20 transmissions of the same arrangement. Use that average to compare against current test results. For example, if charge pressure drops below the average by 10 psi, you have a worn pump or a leaking seal. This method catches problems before installation. Always compare data from the same arrangement – that is critical.

You need a manual that gives you the factory test procedure, not a reprint of a reprint. The Caterpillar 416C, 416D, 420D, 428D, 426C 2003 Technical Manual is the real thing. Access the Factory Manual and get the bench test done right the first time. For even more coverage, check the Caterpillar 416D 2003 Parts Catalog to complete your service library.
