Caterpillar 3100, SMCS – 3000 2003 Repair Manual – What You Actually Get

You’ve got a transmission shaft with grooves worn into it. The dealer says replace it. The third-party manual you obtained last week says “just measure and grind” with zero torque values. That’s how you end up with a $4,000 rebuild that fails in 500 hours. This Caterpillar 3100, SMCS – 3000 2003 Repair Manual is the factory document Caterpillar wrote for their own dealership shops. 30 pages, no padding, no guesswork.

Reuse And Salvage – What the Manual Covers

This isn’t a general overhaul guide. The manual focuses on one thing: salvaging transmission, torque converter, and torque divider shafts that show wear. Page 2 spells out the whole approach – chrome plating or metal spray to build up worn surfaces, but only where bearing rollers don’t run directly. Miss that notice? You’ll get early failure and internal damage. The Summary section (same page) tells you exactly when to use the procedure and when to walk away.

Transmission Shaft Grinding – Page 3 Procedure

You want torque? You need the procedure for grinding before plating. Page 3 says: install the shaft in an external grinder, set it to zero TIR (Total Indicator Reading), then grind to remove all wear marks. The manual doesn’t give torque values for bolts here because this is a salvage operation, not an assembly job. But the torque specs you need for reassembling those shafts? They come from the Caterpillar 3100 HEUI Diesel Truck Engine Service Manual or the matching factory engine manual.

Does This Manual Cover the Fuel System or Engine?

No. The SMCS code 3100 points to “Transmission, Torque Converter – Gear” and 3000 is “Power Train”. This is strictly about repair of transmission, torque converter, and torque divider shafts. If you need the whole drivetrain, get the Caterpillar 3500B 2002 Repair Manual – Factory Specs and the Caterpillar C7 On-Highway Engines Disassembly & Assembly. But for shaft repair, this is the only OEM source.

3 Reasons to Choose OEM Documentation Over Aftermarket

First, aftermarket manuals often lift specs from generic databases – they’ll tell you to apply chrome to a bearing race surface, which this manual explicitly warns against. Second, the charts in this manual list specific part numbers and dimensional diagrams. Third, the Manual Transmission repair procedures in third-party books skip the “Procedure for Grinding after Plating” section entirely. You need both grinding procedures to control final shaft OD.

Source Validity – It’s an Original Caterpillar Print

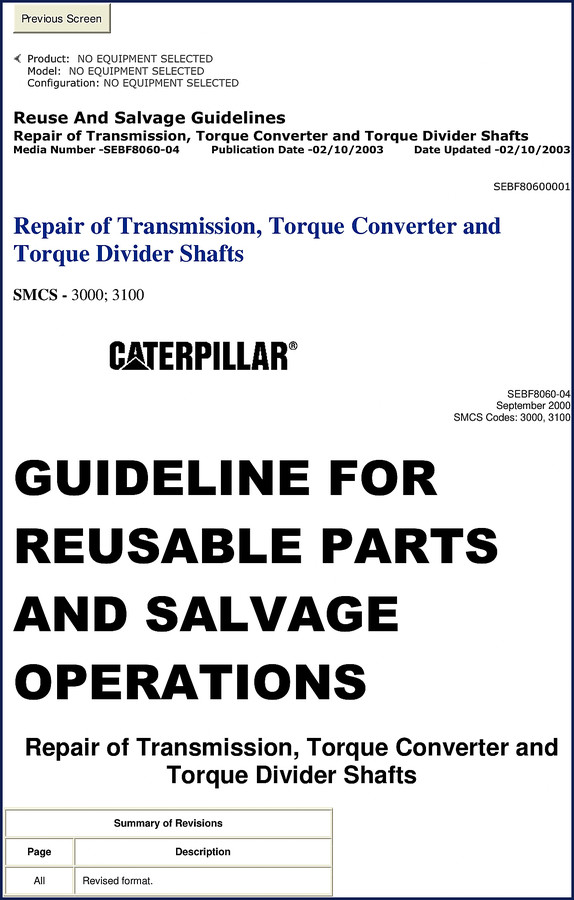

The publication date is February 2003, media number SEBF8060-04. The “Summary of Revisions” on page 1 says “All – Revised format” so this is the latest release for that part number. I’ve used Caterpillar salvage guidelines for twenty years; they update them when factory specs change. This is not a photocopy of a photocopy. The OCR even shows the original Caterpillar® trademark. If you’re serious about keeping a transmission alive past a rebuild, you use this.

FAQ – 4 Questions Techs Actually Ask

What torque values are in this manual?

None directly on the shaft repair pages. The manual covers grinding and plating procedures, not bolt torque. You need the appropriate engine or transmission assembly manual for those values.

Can I use this manual for a Manual Transmission?

No. This is for off-road machine powershift transmissions, torque converters, and torque dividers. A manual transmission uses different shaft geometries and loading.

Does the 30-page count include the charts?

Yes. The charts and diagrams take up about half the pages. You get dimensional specs, part numbers, and grinding tolerances for each shaft assembly.

I’m a home garage guy. Is this too advanced?

If you can set up an external grinder and measure TIR to zero, you can use this. It’s written for dealer techs but uses plain specs. Skip it if you don’t have a grinder or a micrometer.

Look, I’ve got a bay full of jobs waiting. I don’t have time to argue about aftermarket manuals that leave out the critical warnings. This 30-page booklet costs less than the shipping on a new shaft, and it keeps a salvageable part out of the scrap bin. If you’re rebuilding a Caterpillar drivetrain with 3100 or SMCS – 3000 components, Access the Factory Manual now and stop guessing.
