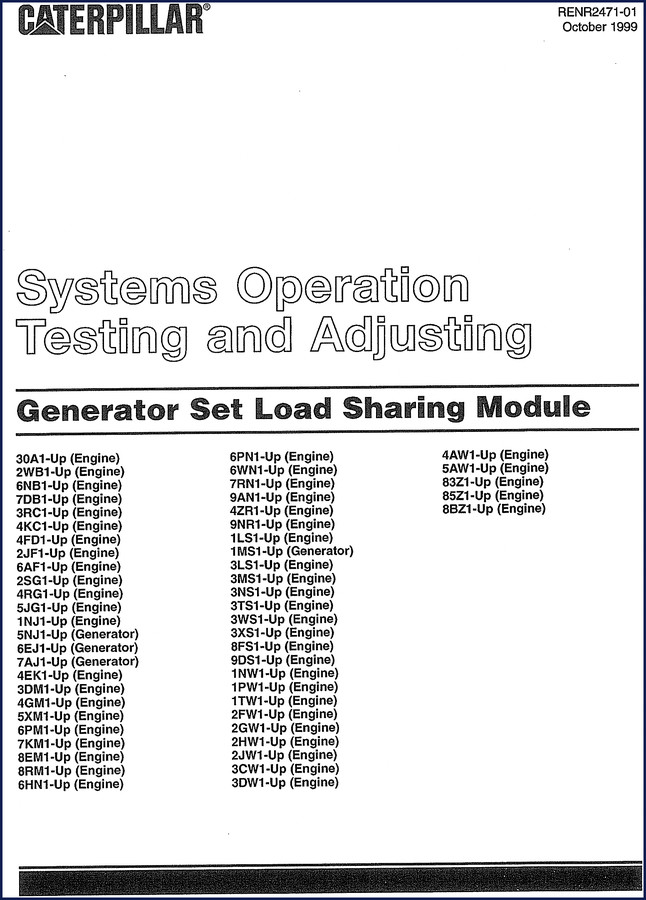

Caterpillar 30A1, 6NB1, 7DE1, 8KC1, 4KC1 1999 Technical Manual

You’ve got a generator set that won’t share load. The aftermarket PDF you obtained says ‘adjust droop’ but doesn’t tell you the damn steps. That’s where this Caterpillar 30A1, 6NB1, 7DE1, 8KC1, 4KC1 1999 Technical Manual comes in. Straight from Caterpillar, 20 pages of factory procedures that cover the load sensor from start to finish. No guesswork. I’ve been turning wrenches for 28 years, and I’ll tell you right now: if you’re working on these engines, you need the OEM data. Not some copy.

Inside the Caterpillar 30A1, 6NB1, 7DE1, 8KC1, 4KC1 1999 Technical Manual

Twenty pages. That’s it. But those twenty pages contain exactly what you need to diagnose, adjust, and test the generator set load sensor. The Systems Operation section starts on page 4 with General Information, then walks you through how the load sensor actually works. Page 7 kicks off the troubleshooting procedures—six specific scenarios, each with its own step-by-step test. After that, Testing and Adjusting covers installation requirements, phasing checks and adjustments (pages 12-13), droop and load gain adjustments (page 16), and a full wiring diagram on page 17. No fluff, just factory workflow.

Why 20 Pages of Factory Data Matter

Every time I see a guy trying to resurrect a Cat generator with a third-party manual, I cringe. Aftermarket books leave out the safety warnings, they guess at torque values, and they don’t have the sequence right. This manual has the original Caterpillar safety information from page 2—the stuff that keeps you alive. The troubleshooting trees are written by the engineers who designed the system. Page 7, for example, walks you through “Engine Does Not Share Load – Troubleshoot” with specific voltage checks at the load sensor terminal. You need that precision. If you’re working on a 30A1 or 6NB1 engine, don’t waste time on generic guides.

6 Troubleshooting Procedures for Load Sensor Problems

This manual doesn’t leave you hanging. It lists six separate troubleshooting routines: Engine Does Not Share Load (page 7), Engine Will Not Operate in Parallel (page 8), Unstable Speed Decrease with Load Increase (page 9), Erratic Operation of Load Sensor (page 9), Load Signal Voltage Is Low (page 10), and Engine Does Not Properly Share Load (page 10). Each one gives you the exact test points and expected readings. I’ve used this on a 7DE1 on a job site in San Antonio—found a bad potentiometer in twenty minutes because the manual told me what voltage to look for at the sensor output. Try that with a generic schematic.

Phasing and Droop: Adjustments That Keep Generators Online

If you’ve ever had a generator drop offline under load, you know the frustration. The phasing check on page 12 is critical: it tells you how to verify the load sensor is synced with the generator output. Then you go to page 13 for the phasing adjustment procedure—a three-step sequence using a phase rotation meter. Droop adjustment on page 16 is where most people screw up. This manual gives you the proper potentiometer resistance settings and the load test procedure. Pair this with the Caterpillar Generator Set Load Sharing Module Manual and you’ll have a fully parallel system that stays stable.

Does This Manual Cover the Load Sensor Wiring?

Yes. The wiring diagram on page 17 is a full-color schematic (in the original print, at least) showing all connections between the load sensor, the engine control module, and the generator master control. It includes pin numbers, wire colors, and test points. If you need to verify a harness or install a replacement sensor, you won’t have to guess. For more engine-specific specs, check the Caterpillar 3116, 3044C, 3114, 3408 Technical Manual | Piston Specs or the Caterpillar 3406E and 3456 Engines Specifications. But for the load sensor on the 8KC1 and 4KC1, this is the one.

Workbench Use: Real-World Application for the 30A1, 6NB1, etc.

I keep a printed copy of this manual in my toolbox drawer for the 30A1 jobs. The installation requirements on page 12 are a checklist I run every time I install a load sensor on a new generator set. You need to know the minimum distance from the output terminals, the grounding requirements, and the maximum cable length. Miss one detail and you get phantom load sharing issues. The troubleshooting section saved me on a 6NB1 last month—load signal voltage was low, traced it to a corroded connector. The manual told me the exact voltage range. No wasted time. If you’re a DIY farm mechanic or a shop owner with Caterpillar generators, you need factory documentation. Don’t rely on aftermarket photocopies.

For general understanding of how load sensors interact with engine controls, you can read about Manual Transmission systems—but that’s a different animal. The wiring here is specific to Caterpillar generator sets, not vehicle drivetrains. Same goes for Manual Transmission fundamentals; they don’t apply to load sharing. Stick with OEM.

Does this manual cover engine overhaul or internal engine specs?

No, it focuses on load sensor systems only.

What is the most critical adjustment in this manual?

The droop and load gain adjustments on page 16. If those are off, your generator will never share load correctly. The step-by-step procedure includes checking the potentiometer with a digital multimeter and setting it to the factory spec. Miss that step and you’ll chase ghosts for hours. I’ve seen guys replace entire load sensors because they skipped the droop adjustment. This manual stops that waste.

Stop wasting time with incomplete instructions. Access the Factory Manual and get the real data Caterpillar engineers intended for these generators. Your 30A1, 6NB1, 7DE1, 8KC1, or 4KC1 will thank you. I’ve got the torque specs memorized, but I still pull this manual every time—because I trust the source.
