Caterpillar 304C CR, 305C CR 2008 Training Manual

I’ve seen too many guys pull a head gasket set off the shelf and start wrenching with a generic “service manual” they found online. Then they call me asking why the boom drifts or the swing motor won’t release. The answer is always the same: you didn’t start with the right specs. This Caterpillar 304C CR, 305C CR 2008 Training Manual is the one you want on the bench if you’re touching either of these mini excavators. It’s 91 pages of OEM training material, not a third-party rewrite.

Hydraulic System: Main/Pilot Pump Group Operation

Flip to page 44. That’s where the training manual breaks down how the main and pilot pump group works on these machines. If you’ve ever had a 304C CR that won’t swing under load, that section tells you exactly where to look — compensator pressure, pump displacement, and the crossover relief. The manual doesn’t assume you know which test port to use; it shows the schematic and the expected pressure. No guesswork.

What Does the Monitoring System Cover?

The operator compartment chapter starts on page 11 and includes the monitoring system. That’s the cluster of warning lights and the coolant temp gauge. The manual explains how the ECM triggers those alarms and what to check before you condemn a sensor. For a DIY mechanic, that’s the difference between replacing a $80 coolant sensor and finding a broken wire in the harness. The OEM wiring colors are listed — not the “close enough” colors aftermarket manuals use.

3 Sections You’ll Use Repeatedly

• Service Areas (page 22): Fluid capacities, filter part numbers, and lube intervals. The 305C CR takes 34.5 quarts of hydraulic oil. That’s a specific number, not “about 8 gallons”.
• Starting and Charging System (page 35): Starter wiring, alternator output, and battery test procedures. If the machine cranks slow, the manual gives you the load test values.
• Individual Hydraulic Circuits (page 61): Boom swing, stick, bucket, blade, and travel. Each circuit has its own flow path and pressure setting. The blade circuit, for instance, uses a priority valve — the manual explains why it shifts and what happens when the spool sticks.

Get the Right Torque Data from Service Areas

The service areas chapter covers more than just drain intervals. It lists bolt torque values for the track frame, swing gear case, and hydraulic pump mounting. I don’t care how many years you’ve been turning wrenches — you don’t memorize every torque spec. That section on page 22 is where you verify before you tighten. One stripped M10 bolt on a pump flange costs you a whole Saturday.

Boom Circuit: How the Valve Group Works

The main control valve group for the 304C CR and 305C CR is covered starting on page 53. That’s where they show you the valve stack layout — boom, stick, bucket, blade, swing. Each section has a cutaway view and a description of the spool operation. If you’re rebuilding a leaking boom control valve on a 2008 305C CR, this is the only source you trust. The manual calls out the specific O-ring part numbers and the torque for the valve body bolts. Aftermarket manuals often skip that step and you end up with internal leaks.

Source Authenticity: OEM Training vs Aftermarket Hacks

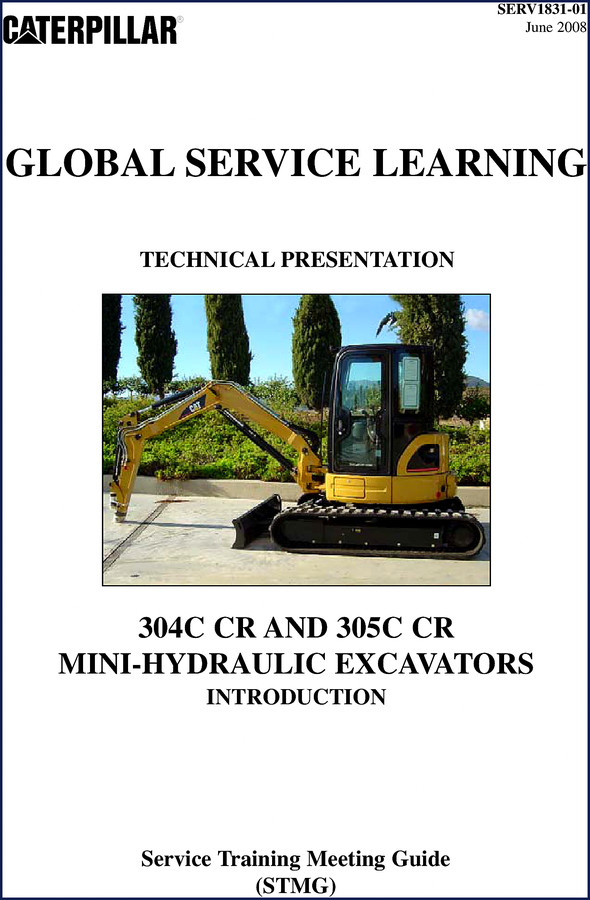

This isn’t a reprint of some third-party CD. It’s an original Caterpillar Training Manual with the SERV1831-01 part number and a June 2008 date stamp. The schematic on the last pages includes a color code for hydraulic lines — nobody does that in a generic manual. When I train a junior tech, I make him read this cover to cover before he touches a Cat mini excavator. The difference in diagnostic time alone pays for the manual ten times over.

Related manuals worth looking at: Caterpillar 994F, 994D, 992G 2005 Training Manual Review covers the big iron, but the hydraulic logic is similar. For another compact machine, check Caterpillar 307D, 308D CR Mini-Hydraulic Excavators. And if you need skid steer basics, Caterpillar C Series Skid Steer Loaders Training M has the same Caterpillar approach to system operation.

For background on how hydraulic controls compare across machines, read up on Manual Transmission theory — it’s not directly the same but the valve logic shares concepts. And if you’re new to hydraulic schematics, Manual Transmission explanations of pressure drop help.

Does this manual include torque specs for the swing gear?

Yes. Torque values are listed in the service areas section.

What’s the difference between the 304C CR and 305C CR hydraulic circuits?

The main pump displacement is larger on the 305C CR — the manual covers both on page 53 with separate control valve group operation. The 305C CR uses a different compensator spring in the main relief valve. If you swap a 304C CR control valve onto a 305C CR, the boom will lift slower and the swing will feel sluggish. The training manual explains exactly which spool bores and sleeves differ, including the part numbers. That level of detail is why you don’t substitute parts by eye.

You’re not going to find a better factory reference for these machines. The 91 pages are packed with schematics, torque values, and troubleshooting procedures that will keep you from burning billable hours. Access the Factory Manual now and get the OEM data on your bench before you touch a wrench.
