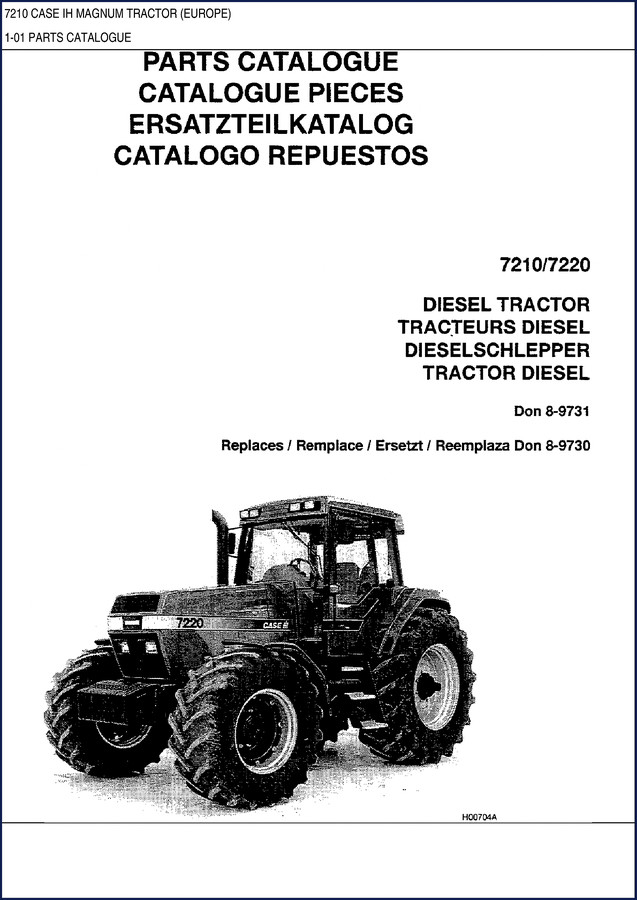

CASE IH 7210, 7220 Parts Catalog – What You Need on the Bench

If you’re pulling a hydraulic pump off a 7210 or 7220 and you don’t have the factory parts list in front of you, you’re gambling with your customer’s uptime. I’ve seen guys order the wrong seal kit three times because they didn’t check the serial number break. This CASE IH 7210, 7220 Parts Catalog takes the guesswork out of ordering. It’s 507 pages of OEM exploded views, part numbers, and quantities that match what came from the factory. No aftermarket consolidation. No “interchange” lists that might get you a metric bolt where you need a Grade 8.

Serial Number Decoding: Where to Find It

Page 3 of this catalog tells you exactly where to find the engine serial number, product identification number (PIN), cab serial number, front axle serial number, and transmission serial number. Every model has multiple build changes. Without matching your machine’s serial number to the correct parts list, you risk ordering a part that doesn’t fit. I’ve had a 7220 come in with a wrong transmission filter because the previous owner guessed. That’s a $600 mistake plus downtime. Use the serial number tables on page 3 and 4 before you touch a wrench.

What Does This Parts Catalog Cover?

This is a Parts Catalog, not a service manual. It covers every replaceable component on the Magnum 7210 and 7220 tractors built for the European market (Don 8-9731). You get exploded-view illustrations (they call them “exploded views” on page 5) with reference numbers that tie directly to the parts list. The list gives you the CASE IH part number, description in English, French, German, and Spanish, plus quantity needed per tractor. If a part is not used on a particular model, they mark an “x” in the quantity column. That’s the kind of clarity that saves you a return trip to the dealer.

3 Reasons to Use OEM Parts Lists Instead of Aftermarket

First, aftermarket catalogs often combine superseded numbers without telling you. A dealer gave me a “cross-reference” once that led me to a part that was discontinued for a reason. Second, OEM part numbers are tied to engineering updates. If the factory changed the seal material, the number changes. Third, the exploded-view layout shows the relationship between parts. You see that a certain bracket is used only with a specific hydraulic pump combination. Aftermarket catalogs skip that detail.

Order Parts Correctly: Use Case IH Numbers

Page 5 has a bold caution: “Reference numbers should not be used when ordering parts. ALWAYS use Case IH part numbers or description when ordering.” That means every illustration has a small reference number (1, 2, 3…) but that number is for index matching only. You order by the actual part number (like 18114019944). Then check the numerical index at the back of the catalog to verify you’re on the right unit. I keep a highlighter in my shop and mark the part number column before I call the parts counter.

Navigating the 507-Page Document

The catalog uses thumb tabs and group indexes. The key page lists all groups. Each group has its own index to units. You can also use the Numerical Index at the back. If you need the radiator group, go to the group index, find the unit (like “Cooling System”), then look at the illustration. This is faster than scrolling through a digital PDF that wasn’t OCR’d correctly. And because it’s a factory scan, the part numbers are crisp—no blurred numbers like you get from a third-party reprint.

For more CASE IH parts guides, check the CASE IH JX 70U MX 80C 2008 Parts Catalog for smaller utility tractors, the STEIGER 385 / 435 Radiator and Hoses Parts Catalog for the big articulated stuff, and the CASE IH STX425 Tractor Pictorial Index Transmission for transmission internals.

Want to understand the engine family better? Read the Automotive Industry Overview for context on diesel Tier changes, and Internal Combustion Engine basics if you’re training a new guy.

FAQ

Can I use this catalog to look up service procedures like torque specs?

No. This is a parts catalog only. It lists parts and quantities, not repair instructions. You need the separate service manual for torque values and overhaul steps. The parts catalog helps you order the correct components before you start the job.

Is the serial number list complete for all 7210 and 7220 variants?

Yes, up to the publication date of Don 8-9731. If your tractor was built after that revision, check for a later edition.

Access the Factory Manual now. You’ll have the same exploded views and part numbers that dealership parts counters use. Get the PDF, print the serial number page, and keep it in your service binder. When the next 7220 rolls in with a blown seal, you’ll order the right part the first time.
