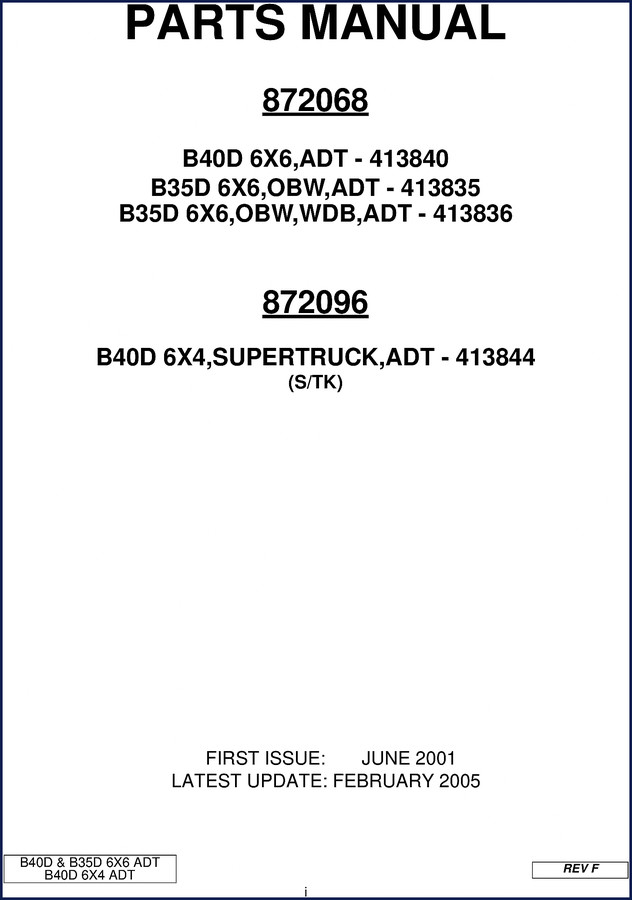

BELL Equipment B35D, B40D 2005 Parts Catalog

If you’ve ever stared at a pile of wrong gaskets and seals because you grabbed aftermarket parts books instead of the factory breakdown, you know exactly why this 618-page Parts Catalog from BELL Equipment matters. BELL Equipment B35D, B40D 2005 Parts Catalog is the only source that matches the hardware on your machine. Aftermarket catalogs leave out revisions and kit variations. This one doesn’t.

Why You Need the BELL Equipment B35D, B40D 2005 Parts Catalog

Every afternoon I see someone in my shop with a photocopied parts list from a third-party site that shows a part number that was superseded three revisions ago. That costs you time and money. This catalog was issued by BELL Equipment’s own Technical Documentation Department. It shows the exploded views and part numbers for every system on the B35D 6X6 ADT and B40D 6X6 ADT (including the B40D 6X4 Super Truck variant). Page 1 lists the exact model numbers and serial ranges it covers. You match your unit’s serial plate to that page and you’re done guessing.

Does This Catalog Cover Engine Internals Like Crankshaft and Camshaft?

The Engine section runs from Base Engine through the Cylinder Head, Crankshaft & Flywheel, Connecting Rods & Pistons, and Camshaft. You also get breakdowns for the Injection Pump, Fuel Lines, Fuel Filter, and all the ancillary gear like the Turbocharger, Air Compressor, and Alternator. Whole fuel system is there: the Fuel-Water Filter Unit, Depth Fuel Filter, and the optional Bin Heating Kit. For ordering a new camshaft or a set of pistons, you need the exact part number from the factory illustration. This catalog gives you that.

7 Major Systems Documented

The table of contents is organized into six major sections plus the General Information preface. Section 2 is Engine (including cooling, exhaust, air intake). Section 3 is Drivetrain – that covers the transmission (main housing, shafts, planetary sets, torque converter, control valves, oil coolers, wiring harness, shift selector), drop box, park brake, front/middle/rear axles with WDB or caliper brakes, final drive kits, and wheel sets for B40D and B35D Super Truck. Section 4 is Hydraulics: the VOAC block, steering, bin tip, cab tilt, brake pedal, emergency steering pump. Section 5 is Pneumatics (air dryer, reservoir, tip lever, pneumatic block). Section 6 is Electrical – the engine harness, power harness, chassis electrical kits. That’s seven if you count the separate General Information section. You won’t find a more complete exploded-view parts list for these ADTs anywhere else.

Get the Right Part Numbers for Your Drivetrain

Drivetrain parts are expensive and heavy. Order the wrong axle flange and you’re down for a week. This catalog breaks down the drop box into input shaft, idler shaft, rear output shaft, and front output diff assemblies. It lists the final drive kits for WDB axles, caliper axles, and Super Truck axles separately. The disc brake kits, wet disc brake kits, and caliper hydraulic component kits are all spelled out with individual part numbers. You can order exactly what you need from the Bell dealer without having to pull a sample or guess the casting number.

Fuel and Electrical: Factory Diagrams for Ordering

Fuel system stuff: the Fuel-Water Filter Unit, Depth Fuel Filter, and the whole engine fuel system kit are broken down. Electrical section lists the front chassis harness, engine harness, power harness, and the main electrical kits. If you’re tracing a short or replacing a harness, you need the exact routing and connector part numbers. The catalog shows the assembly layout so you don’t order the wrong sub-harness. Page 3 carries the disclaimer that BELL updates designs continuously – that’s why you want the 2005 edition, not a reprint from a generic website that doesn’t track revisions.

Order the right parts.

FAQ

Can I use this parts catalog for B30D models?

No, this covers B35D and B40D only.

How are part numbers organized in the manual?

The parts are grouped by system (Engine, Drivetrain, Hydraulics, Pneumatics, Electrical) with exploded-view illustrations. Each illustration has a numbered key that matches the parts list on the same page or facing page. You’ll also find reference numbers for kits (e.g., Final Drive Kit for WDB Axles) and assemblies. The first page of each section identifies which models and serial number ranges the parts apply to. This structure lets you find the exact component you need without flipping through dozens of unrelated pages.

Stop guessing on part numbers and get the factory source. Access the Factory Manual from AutoRepairManuals today.
