ATSG L3N71B Technical Manual – What You Get on the Bench

I’ve seen more than a few guys come into the shop with a transmission spread across the bench and a printout from some forum that says “tighten until it feels right.” That’s how you turn a core into a boat anchor. The ATSG L3N71B Technical Manual is the opposite of that. It’s 52 pages of factory-sourced procedures, torque values you can trust, and teardown steps that don’t skip the critical details. If you’re rebuilding a Nissan L3N71B three-speed rear-drive automatic with a converter clutch, this is the document to root on your tablet before you touch a single bolt.

Description and Identification – Page 5 Sets the Stage

Flip to page 5 and you get the full description of the unit: a three-element hydraulic lock-up torque converter, two planetary gear sets, multiple-disk clutches, a band brake, and a one-way clutch. The manual also shows exactly where to find the transmission identification plate – right-hand side of the case – and how to decode the serial number. That month-of-production code (1=Jan, 2=Feb, Y=July, etc.) matters when you’re ordering parts, because running changes happen. ATSG didn’t guess; they used Nissan’s own illustrations for this booklet.

3 Major Sections That Save You a Comeback

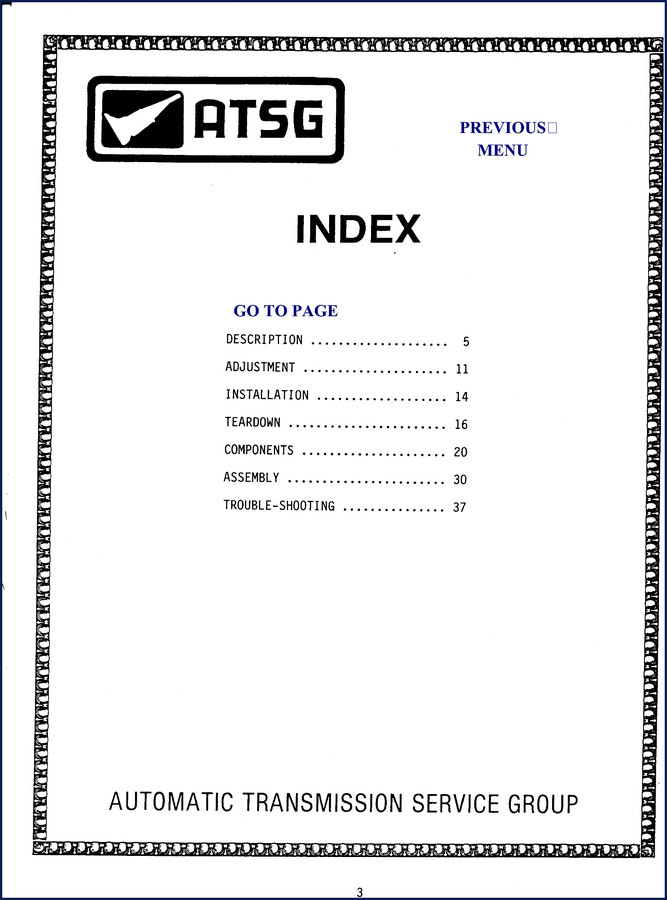

The manual is laid out in the order you work: ADJUSTMENT (page 11), INSTALLATION (page 14), TEARDOWN (page 16), COMPONENTS (page 20), ASSEMBLY (page 30), and TROUBLE-SHOOTING (page 37). Each section has the step-by-step sequence you’d expect from a shop manual – no filler, no “refer to dealer.” The adjustment section covers band and clutch clearances with the correct tool callouts. The installation section includes torque converter seating depth and drive plate alignment. Miss that and you’ll burn the front pump on startup.

Torque Specs – What the Factory Wants

Page 5 lists the tightening torque for the transmission case bolts and converter housing: 39–49 N·m (29–36 ft-lb) for the main case bolts. That’s not a “finger tight plus a grunt” range. It’s a spec you set your torque wrench to. The manual also gives bolt identifiers (A, B, etc.) that correspond to the exploded view in the COMPONENTS section. If you’re working on a customer’s car, that torque number is your insurance against a leaking case or a stripped thread. I keep a copy of this manual in the bay because aftermarket data often rounds those values, and that’s how you get comebacks.

Teardown and Assembly – Factory Sequence Matters

When you get to TEARDOWN (page 16) and ASSEMBLY (page 30), the manual shows the disassembly order for the pump, clutches, planetary sets, and one-way clutch. It also includes the correct direction for the sprag and the seal installation orientation. I’ve watched guys flip a seal and then wonder why the converter won’t fill. The assembly section cross-references each clutch pack clearance with the number of steel and friction plates. You won’t find that level of detail in a generic “how to rebuild an automatic” video.

Trouble-Shooting – Diagnose Before You Dump Parts

The TROUBLE-SHOOTING section (page 37) is worth the price of the manual alone. It lists symptoms like no forward, no reverse, harsh shift, or converter shudder, and gives the hydraulic circuit path to check. Instead of throwing a valve body at it, you can isolate a stuck shift valve or a leaking gasket. This section also references the lock-up control valve and speed oil valve – two common failure points on the L3N71B. If you’ve got a late-80s Nissan truck with a slipping converter clutch, this is where you start.

Who Should Buy This Manual?

If you’re a home-garage guy who’s done a few manual transmissions and wants to tackle an automatic, this manual holds your hand through the parts you can’t see. If you’re a pro shop that sees a lot of Nissan 4x4s or older rear-drive cars, you need this on the shelf next to your transmission jack. The ATSG L3N71B Technical Manual isn’t a textbook – it’s a workbench reference that tells you exactly what to measure, what to torque, and what to replace. No guesswork.

Source Validity – Why OEM-Backed Data Matters

ATSG has been publishing transmission service information since the 1970s, and they license factory illustrations directly from Nissan Corporation. The manual you’re buying is a reprint of that licensed material – not a scanned copy, not a third-party rewrite. The intro even thanks Nissan for the drawings. When I compare this to some aftermarket CD I picked up at a swap meet, the difference is night and day: the OEM artwork shows oil passage locations and check ball positions accurately. That matters when you’re assembling a valve body.

For additional ATSG coverage, check the ATSG JR403-E Electromatic Transmission Manual”>ATSG JR403-E Electromatic Transmission Manual or the ATSG Manual de Servicio Transmision Automatica C-5″>ATSG Manual de Servicio Transmision Automatica C-5. If you work on older GM automatics, the ATSG 350C Transmission Service Manual Spanish”>ATSG 350C Transmission Service Manual Spanish is also available. For broader context on automatic transmission evolution, the Automotive Industry Overview”>Automotive Industry Overview provides background, and if you want to compare manual versus automatic theory, see also Manual Transmission”>Manual Transmission.

Does the manual cover the torque converter clutch diagnosis?

Yes. The TROUBLE-SHOOTING section covers converter shudder, clutch slip, and the lock-up control valve circuit.

What page has the torque specs for the oil pump bolts?

Page 5 lists the tightening torque for the transmission case and converter housing bolts. The pump bolt spec is called out in the ASSEMBLY section with the valve body bolt torques.

Is the manual printed in color?

The manual is black-and-white, but the illustrations are clear line drawings that show oil passage routing and seal orientation without needing color.

Can I use this manual on a Nissan D21 pickup with the L3N71B?

Yes. This transmission was used in many rear-drive Nissan vehicles including D21, 720, and early Pathfinders. The serial number decoding helps you confirm the exact build.

Access the Factory Manual now and get the 52-page ATSG document that belongs on your bench – not a dusty shelf.
