ATSG JR403-E Technical Manual

If you are a DIY mechanic staring at a JR403-E Electromatic transmission that won’t shift right, you already know the problem. The aftermarket data is vague. The wiring diagrams look like they were drawn from memory. You need the actual factory-sourced information that ATSG compiled from GMC and Isuzu manuals. That is what this ATSG JR403-E Technical Manual delivers: 119 pages of real specs, not guesswork.

Self Diagnosis and Code Retrieval: Where the Manual Starts

The JR403-E uses the instrument panel ECONOMY light as a pattern monitor lamp during self diagnosis. Page 3 shows you exactly how to retrieve codes without a scan tool – turn the ignition ON, watch the lamp blink. If it blinks rapidly, you have a fault. The manual then walks you through code interpretation and the electrical component check that follows. Generic OBD scanners won’t read these old electronic transmissions; you need this procedure.

Line Pressure Chart and Solenoid Shift Chart

Two charts in this manual are worth the price alone. The solenoid shift chart tells you which solenoids (shift, line pressure, converter clutch, overrun clutch) are energized in each gear. The line pressure chart gives you the expected pressures at each solenoid state. Without these, you’re guessing at hydraulic problems. They are not in any aftermarket summary I have ever seen.

Disassembly to Reassembly: 7 Sub-Sections Covered

Starting at page 22, the manual covers unit disassembly, then sub-assembly overhaul, valve body removal and inspection, check ball and orifice locations with filter positions, and finally unit reassembly. That is seven distinct sections – each with step-by-step instructions that follow the factory sequence. The valve body section alone has a friction application chart on page 21 that shows which clutches and bands apply in each gear range. You need that chart before you pull the pan.

Who Needs This Manual? The DIY Transmission Rebuilder

Home garage enthusiasts who have pulled a transmission before but never tackled a fully electronic automatic will find the electrical component check crucial. Beginners should not jump into a JR403-E rebuild without this manual – the overrun clutch solenoid circuit and the fluid temperature switch can lock you out if you miss a step. Professional mechanics who bill by the hour will appreciate having the factory torque specs for the valve body bolts and the oil pump. One wrong torque and you have a leak or a cracked bore.

OEM Data, Not Aftermarket Compromise

ATSG compiled this manual from GMC and Isuzu factory repair manuals. The disclaimer on page 1 says the part numbers come from industry sources known for reliability, but the technical content is reprinted with permission from General Motors Corp., Service Technology Group. That matters. Aftermarket manuals often transpose solenoid resistances or skip the line pressure test procedure. This one does not. For a background on how automotive transmissions evolved, see Automotive Industry Overview. And unlike a Manual Transmission, the Electromatic relies on solenoids and a control unit – you need the correct electrical diagnosis sequence.

Frequently Asked Questions

Does this manual cover the 1988 GMC Tiltmaster?

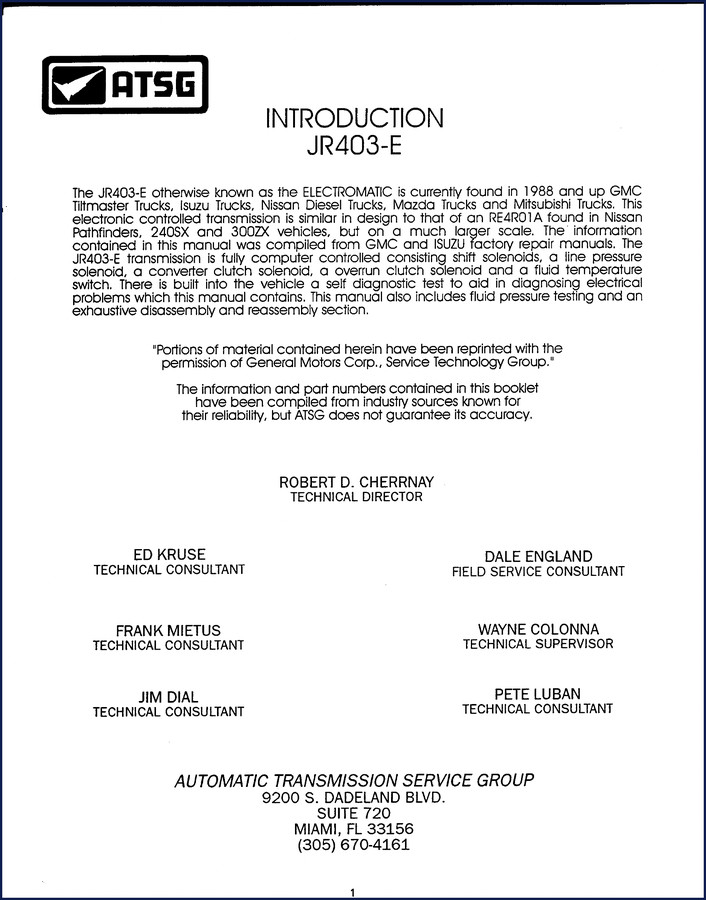

Yes. The introduction lists 1988 and up GMC Tiltmaster Trucks, Isuzu Trucks, Nissan Diesel Trucks, Mazda Trucks, and Mitsubishi Trucks as vehicles that use the JR403-E Electromatic transmission. The self-diagnosis section on page 3 specifies 1988 vehicles and describes the ECONOMY light pattern monitor lamp procedure. If your vehicle is a 1988 or later model with a JR403-E, this manual applies.

Are torque specs included for the valve body bolts?

Torque values are listed in the sub-assembly overhaul and reassembly sections. ATSG does not publish a separate torque chart – you follow the step-by-step sequence. The manual uses inch-pounds and foot-pounds as required.
