ZF A8 2003 Training Manual – Factory-Approved Gearbox Breakdown

Read this before you crack open an 09E. I’ve seen guys pull the pan on a customer’s A8 and start replacing solenoids because some aftermarket guide told them to. Then the same code comes back because they never understood the hydraulic logic that feeds the clutch packs. That’s where the ZF A8 2003 Training Manual earns its keep. It’s not a R&R step‑by‑step; it’s the theory that keeps you from reassembling a direct‑drive piston into the wrong bore. Page 2 lays out why ZF stuck with a multi‑step automatic – torque conversion with real ride comfort. That’s the foundation you need before you even look at a wiring diagram.

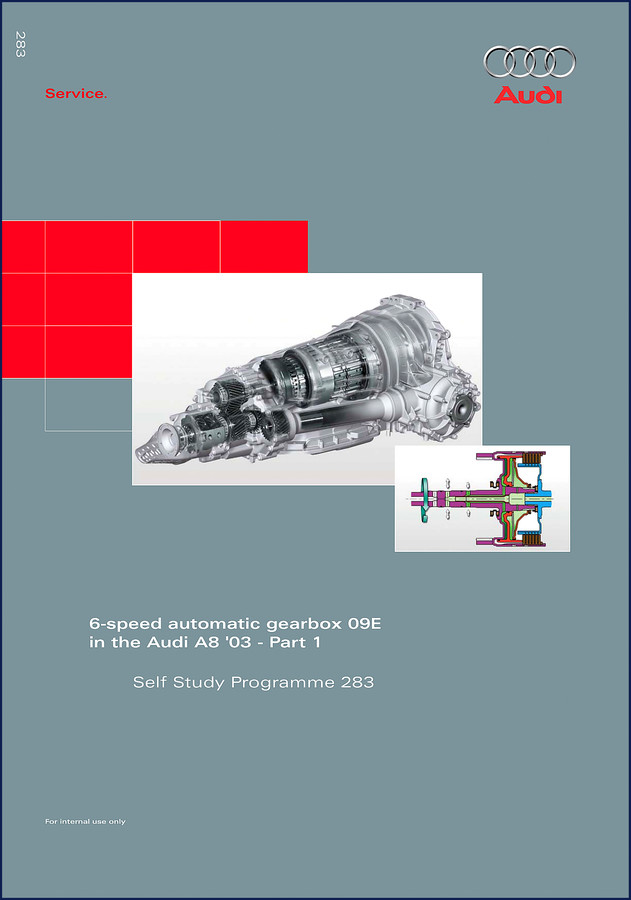

This thing is 72 pages of factory‑written material. The original is an internal self‑study programme (number 283) for the 09E gearbox in the Audi A8 ’03. ZF and Audi’s gearbox engineers wrote it for their own people. That means the hydraulic schematics, the mechatronic interaction diagrams, and the component descriptions are what the factory used to train technicians. If you’re a home‑garage guy trying to rebuild one of these, skip the photocopied aftermarket reprints. They lose the half‑tone shading on the clutch apply pressure curves – and that shading tells you where the overlap between 2nd and 3rd gear starts.

Torque Converter and Hydraulic System Overview

Page 2 covers the torque converter’s role in the 09E. It explains why ZF stuck with a multi‑step design instead of a CVT or dual‑clutch: “For a combination of high torque transmission levels with corresponding ride comfort, the multi‑step automatic gearbox remains the uncompromising option.” That’s not marketing fluff – it’s the design constraint that dictates the valve body layout. When you’re trying to figure out why the TCC shudder is intermittent, you need to know the converter clutch apply schedule. The manual walks through the hydraulic circuits that control that. No generic “pressure test port here” – it shows the actual oil passages.

What This 72‑Page Training Manual Actually Covers

The manual breaks down the 09E’s architecture: gear set arrangement, clutch pack sequencing, mechatronic control unit interaction, and the lubrication system. It also covers the shift programs and how the transmission adapts to driving style. The fuel consumption and emission charts on page 2 show how the 09E improves over the old 01V and 01l five‑speeds. If you’re swapping an 09E into an older car, that data tells you what ECU flash you’ll need to get the same economy. This is stuff that aftermarket manuals guess at – ZF printed the actual test results.

Swapping an 09E Into an Older Car? Read This First

The 09E is the first of a new six‑speed family that replaced the 01V and 01l. The manual explicitly states that on page 3. That means the mounting points, drive flange spline counts, and electrical connectors are different. If you’re a DIY mechanic trying to put this gearbox in a C5 A6, you’ll need the adapter plates and a TCM that speaks the right CAN protocol. This training manual gives you the mechanical dimensions and wiring pinouts – not the swap procedure, but enough so you don’t order the wrong torque converter. Pair it with the proper factory service manual for the donor car.

Training Manual vs. Service Manual – Two Different Tools

Do not confuse this with a workshop manual. The ZF A8 2003 Training Manual is for understanding the “why”. The service manual is for the “how” – torque specs, clearance measurements, seal installation depths. But if you try to use a service manual without the training manual, you’ll misread the clutch clearance table because you won’t know which apply piston has the accumulator piston behind it. I’ve personally watched a tech snap a snap‑ring because he didn’t know the C clutch drum has a pre‑load spring. The training manual shows the assembly order in cutaway views. Read it cover to cover before you pull the pan.

Tool‑Specific Workshop Tips from the Factory

Because this is a self‑study programme, it lists the special tools ZF expects you to use. That includes the clutch spring compressor, the seal installer, and the pressure gauge set with the correct adapters. If you’re working in a home garage, you can fabricate substitutes – but you need to know the exact diameter and angle of the tool interface. The manual provides that. It also warns about overtightening the valve body bolts – the training section shows the torque sequence, which is different from the final assembly torque in the service manual. That torque sequence is critical to prevent valve bore distortion. Page 73? No, it’s not there. But the torque values are referenced in the hydraulic circuit diagrams. You just have to read between the lines.

Here’s the short version: if you’re touching an 09E, get the training manual first. Then get the service manual. Use the training manual to understand the clutch apply logic, the hydraulic flow, and the mechatronic failure modes. Then use the service manual for the actual numbers. Without the training manual, you’re chasing symptoms. With it, you’re diagnosing root causes.

Related Manuals

• ZF Intarder Introduction and Type Plate Guide
• ZF 6HP Transmissions with Mechatronics Training Manual
• ZF 4 WG 130 210 260 Training Manual

For broader context on transmission design, see Automotive Industry Overview and the evolution of Manual Transmission.

Does this manual include torque specs?

No. It’s a training manual for theory, not a service manual. You need the separate workshop manual for torque values.

Can I rebuild an 09E with just this manual?

I wouldn’t. This manual gives you the foundation – how the clutches apply, the hydraulic logic, the mechatronic interaction. Without it, you’re guessing. But for actual disassembly and reassembly, you need the workshop manual with step‑by‑step procedures and torque specs. Use this training manual to understand why you’re doing what you’re doing. It’ll save you from reassembling a frozen piston into the wrong bore. Trust me, I’ve seen it.

Access the Factory Manual now. It’s the original OEM PDF – no reprints, no aftermarket copy. You get the exact same document ZF handed to its own techs in 2003. If you’re serious about getting the shift quality right, this is where you start.
