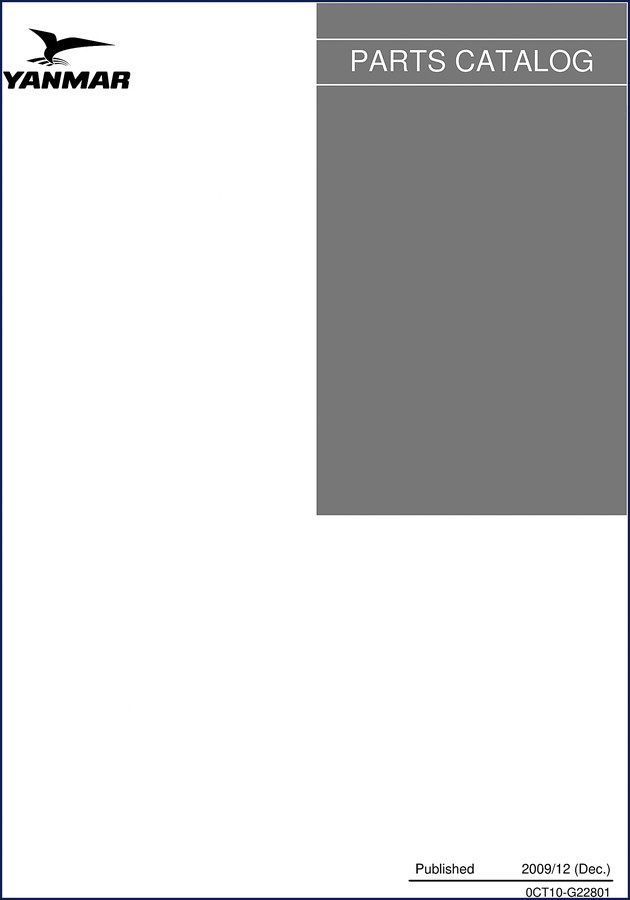

Yanmar YM186, YM186D 2009 Parts Catalog

I’ve rebuilt more Yanmar diesel engines than I can count, and the single biggest waste of time in this shop is a mechanic ordering the wrong part because he trusted a third-party parts list instead of the factory catalog. If you’re working on a Yanmar YM186, YM186D 2009 Parts Catalog, you need the exact OEM breakdown – not some recompiled list from a website that’s never seen an engine label. This 172-page catalog from Yanmar covers every nut, bolt, gasket, and casting for the YM186 and YM186D tractors built since February 1980. Published in December 2009, it’s the most current factory source for part numbers, compatibility codes, and color designations. No guesswork, no cross-referencing aftermarket databases.

Look at page 2 of this catalog. Yanmar tells you straight: when ordering parts, write down the tractor model and the name and number of each part. That’s it. If you skip that step and just send a blurry photo to the dealer, you’ll get the wrong piece. I’ve seen it happen with Cylinder head gaskets, Camshaft bearings, and Crankshaft seals. The catalog’s exploded diagrams make it obvious which part you’re holding. Page 4 covers color coding – ten variations (K, M, P, Q, R, X, Y, U) so you know your fender should be red (R) or your hood black (X). Suffix the color code to the part number when you order. If you ignore that, you’ll get a green hood on a tractor that needs black.

Engine and Drivetrain Breakdown – What’s Inside

The catalog is organized by assembly groups. You’ve got sections 1 through 91 covering everything from the block to the tires. For the Engine, sections 1 through 22: Cylinder Block, Gears Housing, Cylinder Head & Bonnet, Air Cleaner, Silencer, Camshaft, Crankshaft & Flywheel, Piston & Connecting Rod, Lube Oil System, Cooling Water System, Fuel Injection Pump, Fuel Injection Valve, Fuel Oil System, Governor, Electric Starting Device, Thermostart, Labels, Starter (12V-1.3kW), Generator, Gasket Sets, and Repair Kits. Every part number is tied to a Yanmar OEM number. If you need a Valve stem seal or a piston ring set, it’s in there with compatibility symbols (N, Q, R, S, W, Z, F, K) so you know if the new part supersedes the old one. That’s stuff aftermarket catalogs never tell you.

Does This Catalog Cover the Fuel System?

Absolutely. Sections 11, 12, and 13 go deep: Fuel Injection Pump, Fuel Injection Valve, and Fuel Oil System. If you’re chasing a hard-start or smoke issue, you need the correct nozzle part number. The catalog lists pump assemblies, delivery valves, and injection pipe sets. It also includes the Governor (section 14) – critical for setting idle and max rpm. Don’t trust a generic parts list for these. Yanmar changed pump specs based on serial number breaks; the catalog’s implementation marks (A through F columns) show exactly which engine serial numbers get which pump. Page 3 explains the implementation symbol system – you’ll see entries like (A=E00185) meaning the change applies from engine number 00185 onward.

3 Reasons to Stick with OEM Documentation

First, the part numbers are verified. Aftermarket catalogs frequently renumber parts or leave out superseded items. This catalog uses Yanmar’s own 12-digit part numbers. Second, the color codes are only in the OEM catalog. Third, the compatibility symbols (N, Q, R, etc.) tell you if a new part can replace an old one without mods. Aftermarket lists skip that info. I’ve had a customer order a water pump that looked identical but had a different pulley offset – the catalog’s implementation mark would have caught it.

How to Use the Parts Index and Ordering Info

At the back of the 172-page catalog is a PartsNo Index. Find your part number numerically, then flip to the appropriate section. The illustrations are keyed to reference numbers that match the list. If you’re working on a YM186D (4WD model), the front axle sections 30 and 46 cover the casing and front drive. For 2WD YM186, section 29 has the front axle. The catalog breaks out regional variations: USA, France, England, New Zealand. So if you have a US-spec tractor, use the US sections – like sections 56 (Electric Parts Floor U.S.A.) and 57 (Column U.S.A.). Don’t guess which one applies; the catalog tells you explicitly.

Related Manuals You Might Need

If you’re also working on compact Yanmar equipment, check these OEM parts catalogs from AutoRepairManuals: Ammann Yanmar B12 B17 Parts Catalog for smaller engines, Yanmar YB271, B27 1994 Parts Catalog – OEM Factory Specs for the B-series, and Yanmar YB301 YB351 1991 Parts Catalog – 248 Pages OEM for the larger power units. Each is the same style – factory part numbers, no aftermarket shortcuts.

FAQ – Yanmar YM186/YM186D Parts Catalog

Is the text in this catalog English or Japanese?

Most of the headings and part names are in English. The notes on implementation symbols and compatibility are in Japanese, but the part numbers and illustrations are universal. If you can read a parts diagram, you’ll be fine.

Does it include torque specifications for parts?

No. This is a parts catalog, not a service manual. It lists part numbers and assembly relationships only. You’ll need the Yanmar service manual for torque values.

How do I find a part number if I only have the old part in hand?

Flip to the PartsNo Index at the end. If the old part has a Yanmar number stamped on it, look it up there. If not, find the exploded diagram for your assembly group – the illustrations are detailed enough to match shape and position. Then confirm the number from the list.

What does the compatibility symbol “N” mean in the catalog?

“N” means the new part is forward-compatible with the old part – you can install the new part in place of the old one, but you cannot go backward. So if your tractor has the old part and you order the new part (marked N), it will fit. If you have the new design and try to install an old stock part, it won’t work. The catalog shows these symbols next to every changed part. This is critical for engines where Yanmar updated camshafts or injectors mid-production. Ignoring the symbol means you might buy a part that doesn’t fit your serial number range.

Stop ordering parts by footprint alone. The YM186 and YM186D have regional variations, production breaks, and color codes that only the factory catalog captures. Whether you’re rebuilding a Cooling system, replacing a Camshaft, or tracking down a Fuel injection valve, this 172-page OEM document gives you the exact Yanmar part number. For a broader view of how these tractors fit into the equipment world, check the Automotive Industry Overview on Wikipedia for context on diesel engine evolution. And if you need to compare part numbers across other Yanmar models, the Automotive Industry Overview page isn’t a substitute for a real catalog – but it helps to understand the industry standards. Access the Factory Manual now.
