Yanmar YB271, B27 1994 Parts Catalog

Ordering parts for a Yanmar crawler backhoe without the OEM parts catalog is a recipe for getting the wrong seal, the wrong hose, or a bracket that doesn’t fit. I’ve seen too many DIYers and even shop guys waste a whole afternoon because they trusted an aftermarket parts lookup that didn’t have the real factory breakdown. This Yanmar YB271, B27 1994 Parts Catalog is the original 234-page document that Yanmar used to stock their dealers. It has the exact part numbers, the exploded views, and the wiring diagram you need to identify what you’re pulling off that machine. No third-party interpretation. Just the raw OEM data.

How to Read This Parts Catalog

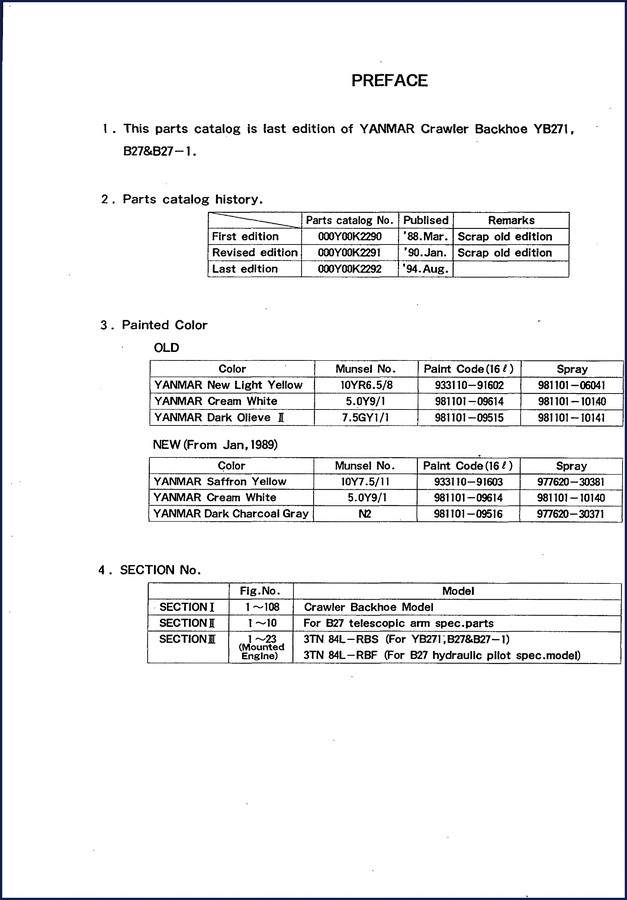

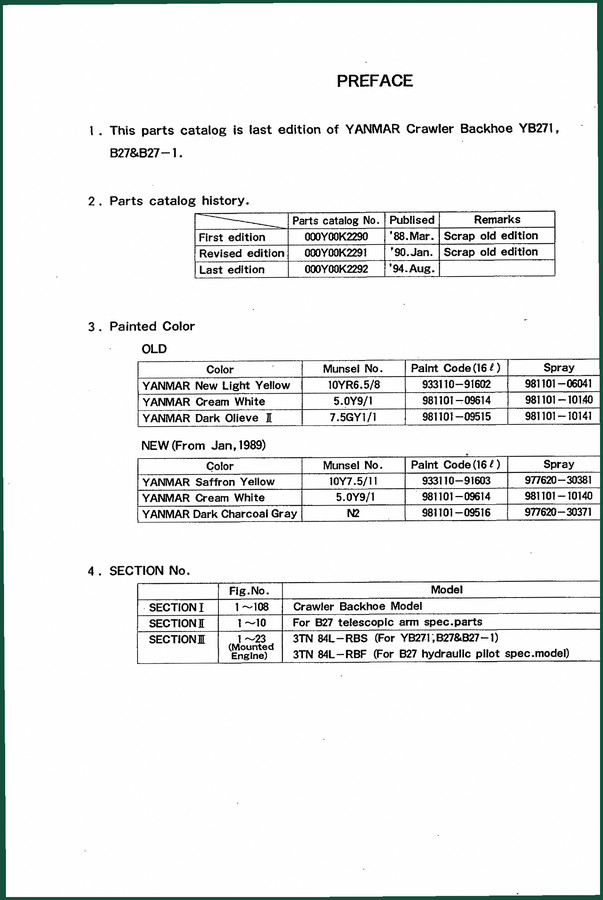

Open the manual’s preface first. Page 1 of the OCR shows the applied model columns for YB271U, YB271Z, and multiple B27 variants. Understanding these columns is critical—order a part for the wrong variant and it won’t fit. The catalog uses a matrix of model codes and part numbers. Take the time to read the “How to read this Parts Catalog” section. It explains the abbreviation codes: AE for arm end piping, AS for Australia, C for cabin, etc. Get familiar with it.

Memorize that matrix.

Verify Part Numbers Against Your Machine

Before you order anything, find your machine’s model code. The table on page 1 lists over 30 variants. Your YB271 might be a U, UR, UZ, or UZR. The B27 can be C, CR, P, PR, with various suffixes like MULTI, PLT, V-AE. Cross-check your serial number against the column. Then look up the part in the catalog’s parts name index. That index lists every component group—engine, hydraulics, undercarriage, etc. The catalog does the work for you; you just have to match the code.

Specifications: Engine, Dimensions, and Capacities

Flip to the SPECIFICATIONS pages. Engine is a 3TN84L-RBS, 3-cylinder water-cooled diesel. Transport length 4485 mm, width 1470 mm, height 2360 or 2385 mm depending on model. Std bucket capacity 0.07 m³, width 450 mm. Max digging depth 2650 mm (2800 with blade). Max cutting height 4620 mm, dump height 3250 mm. Max reach at ground level 4430 mm. Min swing radius 1640 mm (right swing 1240). Boom swing angle left 50°, right 90°. Max digging force 2050 kgf. Travel speed 2.2 km/h. Gradability 30°. These numbers matter when ordering undercarriage parts or hydraulic cylinders. Page 2 in the OCR covers them.

Wiring Diagram: Factory Routing Without Guesswork

Wiring is where most aftermarket catalogs fall apart. This manual includes a full wiring diagram section. The diagram shows the harness routing, connector locations, and wire colors as Yanmar designed them. It also includes connector pinouts, wire gauges, and fuse locations. If you’re troubleshooting a no-start, trace the circuit from key switch to starter relay to fuel shutoff solenoid. The factory diagram shows the exact path, not a generic one. Use it with a multimeter and you’ll find the open circuit in minutes rather than hours. The wiring diagram follows standard Automotive Industry Overview color coding, so refer to the Automotive Industry Overview for general conventions when interpreting wire functions.

What Does the 234 Pages Cover?

Every major assembly is exploded in this 234-page catalog: engine, transmission, final drive, hydraulic pump, control valve, swing mechanism, undercarriage, bucket and attachment options. The parts name index (another bookmarked section) lets you jump directly to the group you need. No flipping through generic sections. Each illustration has a parts list with part number, quantity, and notes. This is the same document Yanmar dealers use to fill orders. If you need the pilot valve seals for the B27 PR, you’ll find them in the hydraulic group. If you need the rubber crawler for the YB271 UR, it’s in the undercarriage section. The catalog even breaks down optional equipment like multi-charge hydraulics and third valves. That level of granularity is what separates a factory catalog from a parts lookup website.

Can I use this parts catalog for the B27 model?

Yes. The catalog covers both YB271 and B27 variants.

Does this include torque specs for assembly?

This is a parts catalog, not a service manual. It lists part numbers and specifications like engine type, dimensions, fluid capacities, but does not include repair procedures or torque values. For assembly torque specs, you need the factory service manual. The parts catalog is strictly for identifying and ordering the correct parts. It includes the wiring diagram and exploded views to help you distinguish which part goes where. That’s its job, and it does it well.

Stop ordering parts blind. The Ammann Yanmar B12 B17 Parts Catalog and other related manuals are available, but for your YB271 or B27, this is the one you need. Access the Factory Manual and keep it on your tablet next to the machine.
