Yanmar BT, BTD 2005 Parts Catalog – What You Get When OEM Matters

I’ve seen too many guys slap a used camshaft into a BT engine using a part number they guessed from a third-party website. Then the decompression lever doesn’t line up, the valve timing is off, and they’re pulling the head again. That’s wasted Saturday. If you’re working on a Yanmar BT, BTD 2005 Parts Catalog, you need the actual OEM part numbers – not a cross-reference from some forum. This 147-page factory catalog gives you the exact drawing, the official Yanmar part code, and the assembly notes that tell you if a part supersedes an earlier version. You get that right, you don’t reorder.

I’m Mike Callahan – I’ve torqued more head bolts than most people have had hot meals. When I see a parts list that doesn’t match the engine’s original numbering system, I walk away. This one matches. It’s the real 2005 publication from Yanmar, printed in Portuguese/Spanish editions, but the part numbers and diagrams are universal. If you’re rebuilding a BTD22.92250 or any BT-series engine, this is the reference you keep on the bench, not on a tablet screen that’s got greasy fingerprints all over the index.

Engine Core: Cylinder Block and Crankshaft Coverage

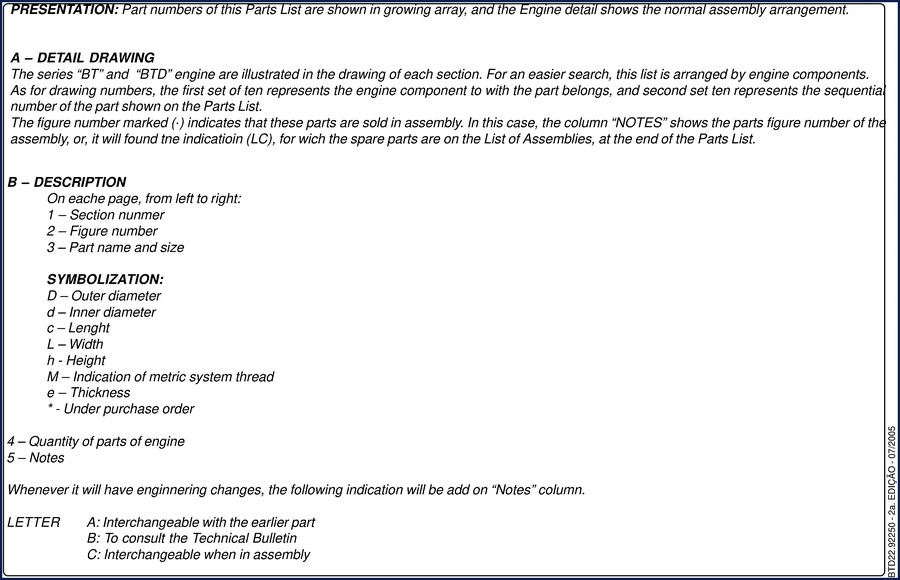

Section 01 covers the Cylinder block and its components – the block itself, liners if applicable, plugs, and fittings. Section 21 dives into the Crankshaft, flywheel, pulley, and tyre coupling. You get the full exploded view with each part numbered sequentially. On page 1 of the catalog, the presentation explains the numbering system: the first two digits of the drawing number identify the engine component (e.g., 01 for cylinder block), the next digits are the sequential part number. That’s the kind of specificity I want when I’m ordering a main bearing or a crank seal. Miss the suffix letter in the Notes column and you might get the wrong bearing clearance – the column shows letters (A, B, C) that flag engineering changes. Ignore that and you’re buying a part that doesn’t fit.

Camshaft, Valve, and the Decompression System

Section 14 is Camshaft – Tappet, Valve – and Section 03 is the Decompression System. These two are close cousins. The decompression mechanism on older Yanmar BT engines is a manual lever that lifts the exhaust valves to reduce compression for starting. If you’re ordering a new camshaft, you need to know which tappet type matches the decompression actuator. The catalog lists the camshaft as an assembly, but the Notes column tells you if the parts are sold separately or only as a set (marked with a dot). For example, the camshaft gear might be a separate line item. I’ve had guys order a camshaft and forget the thrust plate – the catalog shows the plate right there in the drawing. Don’t skip the diagram.

Beyond the Engine Block – Cooling, Fuel, and Electrical

This Parts Catalog isn’t limited to the short block. Section 42 covers the engine cooling water pump and heat exchanger water pump – both separate section numbers but grouped. Section 51 is the fuel injection pump, Section 53 the fuel injection valve, Section 60 the governor and its components. You also get the starting motor and alternator (Section 77), and the panel, starting key, and test lamp (Section 91). For a complete overhaul or a rebuild, you need every gasket, seal, and zinc anode. Section 09 is the protecting zinc – that’s the sacrificial anode inside the cooling system. If you don’t replace it, you’ll get electrolysis eating the heat exchanger. The catalog lists the exact Yanmar part number. No guesswork.

There’s also the gear reducers: RD33A/33B (Section 81), MR22P (Section 82), and the speed reverser gear BTDM – MR33A/33B (Section 83). These are for the PTO and drive systems on tracked machines. You might not need them for an engine-only build, but if you’re restoring a whole machine, the part numbers for reduction gears and bearings are right there. The index on page 2 lists all sections from 01 to 83, plus the List of Assemblies at the end – that’s where you find sub-assemblies sold as a unit (like a complete cylinder head with valves installed).

Why You Need Factory Parts Numbers, Not Aftermarket Guesses

I know aftermarket catalogs are cheaper upfront. But they often use generic drawings that don’t match the exact Yanmar casting revisions. This catalog is from the OEM – Yanmar themselves. Every part number is the one stamped on the original packaging. When you call a dealer, you can read the number from the page and they’ll ship the correct part. The catalog also shows quantities per engine: how many bolts, how many seals, how many rings. That’s critical when you’re ordering a piston ring set – Section 22 shows the ring set as an assembly, but the quantity column tells you there are three rings per piston (oil ring, compression ring, etc.). The third-party catalog might list a “set” without telling you how many pieces. Waste of time.

For background on how these engines are used in construction equipment, see the Automotive Industry Overview on Wikipedia. It gives context on the Yanmar industrial engine lineage. Also check related catalogs: Ammann Yanmar B12 B17 Parts Catalog covers similar small diesel engines, and Yanmar YB271, B27 1994 Parts Catalog – OEM Factory Specs is for older models. For a more recent variation, Yanmar YB301 YB351 1991 Parts Catalog – 248 Pages OEM gives broader coverage.

Another external resource: Automotive Industry Overview may be useful for understanding manufacturing tolerances in engine components.

Audience Fit – Who Benefits Most from This Catalog

DIY mechanics rebuilding a Yanmar BT or BTD engine in a home garage need this because one wrong part number means a week of waiting for a correction. Construction equipment owners who maintain their own fleet will use it to order seals, gaskets, and bearings without pulling the engine apart first. Even professional shops that work on multiple engine lines need the factory catalog to cross-check when a customer brings in a machine with a swapped block. The diagrams are clear enough for a first-timer – each section has a figure number and a parts list with dimensions (outer diameter D, inner diameter d, length c, etc.). That helps you verify you’re not ordering a piston that’s 0.5mm oversize when you need standard.

Frequently Asked Questions

Does this Parts Catalog include torque specifications for the cylinder head bolts?

No. This is a parts catalog, not a service manual. It lists part numbers and quantities. You need the separate Yanmar service manual for torque values, clearance specs, and assembly procedures.

How do I use the Notes column when ordering a part marked with a dot (•)?

The dot means the part is sold only as an assembly – you cannot buy the individual sub-components separately. The Notes column will either reference the assembly figure number (e.g., “see Fig. 5”) or say “LC” which directs you to the List of Assemblies at the end of the catalog. There you find the breakdown of that assembly with its own part numbers. If you need, say, a single valve guide from a cylinder head assembly that’s only sold as a whole head, you might have to source it separately because Yanmar doesn’t sell it alone. The catalog makes that clear. Always check the Notes column before ordering – that’s where engineering change letters (A, B, C) also appear, telling you if the part has been superseded and is interchangeable.

Look, I don’t sell paper for the sake of having a stack on the shelf. This catalog saves you the headache of ordering wrong parts and waiting two weeks for a return. The exploded drawings on each section show you exactly how everything goes together – no need to disassemble the whole engine just to find a part number on a worn casting. Access the Factory Manual and keep it on your bench. Your time is worth more than guessing.
