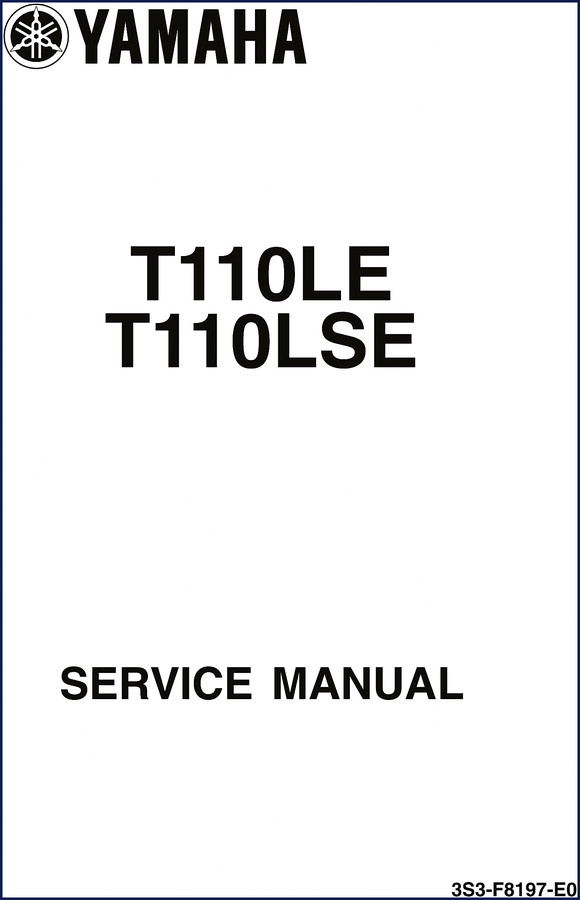

Yamaha T110LE, T110LSE 2005 Service Manual – Factory Torque Specs & Engine Repairs

Guys, I’ve been twisting wrenches in San Antonio long enough to recognize a reprint from across the bay. You grab some aftermarket PDF off the internet, and the torque specs are rounded off or missing altogether. That’s how you get a head gasket that weeps at 500 miles. This Yamaha T110LE, T110LSE 2005 Service Manual is not that. It’s the real factory binder – 308 pages, printed by Yamaha Motor Co., Ltd. in 2005. You get the exact numbers Yamaha engineers wrote. No guesswork.

Torque Specs and Fluid Capacities: Where the Specs Live

Every fastener on these bikes has a designated torque in the GENERAL TIGHTENING TORQUE SPECIFICATIONS section. Page 73 lists the critical values for the cylinder head, crankcase bolts, and clutch hub nut. I’ve seen a stripped M8 on the oil pump cover more times than I can count – always from someone using a universal “tight” instead of a wrench. This manual gives you the ft-lb numbers. Use a click-type torque wrench, and you won’t be chasing oil leaks on a Sunday afternoon.

Yamaha XT350 1985 Service Manual – Factory Specs & Torque Data covers a different platform, but same principle: OEM data beats aftermarket every time.

Engine Removal and Cylinder Head: A Test of Patience

The ENGINE chapter starts with removal steps and moves straight into the cylinder head, camshaft, and valves. You get the bolt sequence for the head – it’s cross-pattern, three stages. Miss the second stage and you’ll warp the deck. The manual includes a table of valve clearance specs, shim sizes, and the special tool numbers for the valve spring compressor (P/N: YM-01992). For the camshaft timing, they show the alignment marks on the sprocket and crankcase. If you’re rebuilding a top end on a T110LE, this is the only document you should trust.

Electrical System Diagnostics: Omit the Guesswork

The ELECTRICAL SYSTEM section covers the ignition system, electric starting system, charging system, lighting, and signaling. There’s a full switch continuity chart and bulb condition check procedure. The wiring diagram at the back of the manual is color-coded and includes the color codes for every wire – something aftermarket manuals always screw up. If your T110LSE won’t start, you trace the starter circuit with their flowchart. It’ll tell you whether it’s the starter motor, relay, or a bad ground. I’ve used it to diagnose a failed CDI unit in under ten minutes. Yamaha YZF600RJ 1996 Service Manual – Factory Specs & Repairs also has a solid electrical section if you work on sport bikes, but for fan-cooled singles this one’s your match.

7 Systems Covered: From Carburetor to Drive Chain

This manual breaks down into 7 major systems. The CARBURETOR chapter includes the air induction system, jetting specs, and float height adjustment. The CHASSIS chapter covers front wheel and brake disc (T110LSE), front wheel and drum brake (T110LE), rear brake, front fork, handlebar, steering head, rear shock, swingarm, drive chain and sprockets. Each procedure lists the required tools – like the steering nut wrench YM-01455 – and the torque values for every bolt. For the drive chain, they specify the slack range (30–40 mm) and how to adjust the rear axle nut to 45 ft-lb. Ignore those numbers and you’ll either eat a chain or snap a sprocket.

Periodic Maintenance Intervals: Follow Them or Pay Later

Page 26 of the PERIODIC MAINTENANCE AND LUBRICATION INTERVALS table shows every service point at 600-mile, 4,000-mile, and 8,000-mile intervals. Oil change every 4,000 miles (SAE 20W-40, 1.0 qt). Valve clearance check at 8,000 miles. Spark plug replacement every 8,000 miles. These schedules come straight from Yamaha’s reliability testing. You skip them and you’ll be pulling the cylinder head to replace a burned exhaust valve. Not a fun afternoon.

Yamaha YZF-R1S YZF-R1SC 2003 Service Manual – Factory Torque Specs is for a different engine, but the philosophy is identical: factory intervals keep bikes on the road.

Source Authenticity: Why OEM Documentation Matters

Look at the warning on page 4 of this manual: “Repair and maintenance work attempted by anyone without this knowledge is likely to render the vehicle unsafe and unfit for use.” That’s a real liability statement from Yamaha. Aftermarket manuals strip those warnings. They also simplify wiring diagrams and omit special tool references. This PDF is a direct scan of the official Yamaha service manual – no reprints, no third-party summaries, no lost chapters. You get the same binder that dealer techs work from. That’s the difference between a clean repair and a come-back job.

If you need background on how manual transmissions function, check out Manual Transmission basics on Wikipedia. The T110LE and T110LSE use a constant-mesh 5-speed – same principles apply. And for a deeper dive into gearbox internals, Manual Transmission theory will help you understand shift fork wear patterns.

Audience Fit: Who Should Buy This Manual?

Home garage mechanics who own a T110LE or T110LSE and want to do their own valve adjustments, carburetor rebuilds, and brake overhauls. Professional shop owners who need a reference file for intermittent customers. Beginners? Only if you’ve already done a few oil changes and learned basic safety. This manual assumes you understand the difference between a socket and a wrench. If you’re new, pair it with a factory service manual for a smaller single-cylinder – the procedures are detailed enough to follow, but you’ll need to know which end of a torque wrench to hold.

Does this manual cover the 2005 T110LSE model?

Yes. Covers both T110LE and T110LSE.

What’s the most common mistake when following the engine removal section?

People forget to disconnect the ground wire from the starter motor before pulling the engine. The manual lists it on page 52 as step 5, but if you skip it, you’ll yank the wiring harness and snap the terminal. Then you’re buying a new starter motor. Also, they don’t put a drip pan under the carburetor – gasoline spills on the garage floor. Read the warning about fuel on page 53. It’s there for a reason.

Stop flipping through blurry aftermarket PDFs. Get the real Yamaha data – the same sheets dealer techs use, with factory torque specs, wiring diagrams in color, and every special tool number you need. Access the Factory Manual now and keep your T110LE or T110LSE running the way Yamaha intended.
