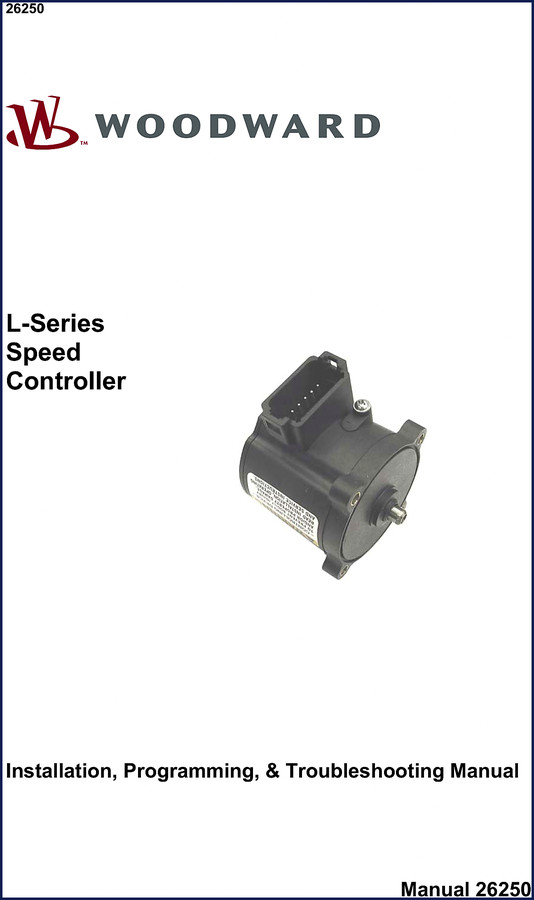

Woodward L-Series Speed Controller 2004 Installation Manual

If you’re staring at an aftermarket PDF for a Woodward L-Series controller and wondering why your installation is throwing faults, I’ll tell you: you’re using the wrong document. I’m Mike Callahan, ASE Master, and I’ve seen more miswired governors than I care to count. This 118-page factory Woodward L-Series Speed Controller 2004 Installation Manual is the only one you should trust. It was published in 2004 by Woodward Governor Company, and it covers everything from mechanical mounting to fault codes. No guesswork, no generic diagrams – just the OEM data your job needs.

Don’t Ignore Electrostatic Discharge Precautions

Page v of this manual spells out the ESD warnings that most techs skip. Woodward gives you a clear procedure: discharge body static before handling the control, avoid plastic and Styrofoam near the board, and never touch components with bare hands. I’ve seen controllers fried because someone grabbed the board without grounding. This isn’t a suggestion – it’s a requirement printed in the manual. Follow it.

Does This Manual Cover the Electrical Installation?

Chapter 3 runs from page 14 through the I/O descriptions on page 17. It covers shielded wiring, proper grounding, and every pinout for the Woodward L-Series Speed Controller. If you’ve ever chased a ground loop in a genset controller, you’ll appreciate the detail on shield termination. The wiring diagrams are factory-original, not redrawn by some third party. That matters when you’re tracing a 0–5u202fV speed signal.

Check the Regulatory Compliance Notes First

Page iv lists regulatory compliance notes and warnings. Most guys flip past this. Don’t. The manual tells you exactly what overspeed shutdown device is required, and that it must be independent of the control system. That’s a liability issue. If you skip this page and someone gets hurt, the lawsuit won’t care that you “thought” it was covered. Woodward prints it for a reason.

Starting the Engine: Factory Procedure

Chapter 4, Description of Operation, includes the exact sequence for starting the engine with the L-Series controller. Page 27 walks you through system power-up, pre-start checks, and the fuel limit logic. The manual explains how the speed control dynamics adjust for different load types. If you try to wing it with a generic manual, you’ll chase hunting or instability for hours. This document gives you the proportional and integral gain values to dial in the response.

Fault Detection and Annunciation: Understanding the Codes

Pages 40–41 list every fault the controller can flag – from position feedback loss to temperature sensor failure. Each fault has a root cause and recommended corrective action. This isn’t a vague trouble‑shooting table; it’s the same list Woodward sends to their field service techs. If you’re working on an emergency generator or a critical pump, you can’t afford to guess what code 41 means. The manual tells you.

For the full setup documentation, pair this manual with the Woodward L-Series Position Controller Product Manual. If you’re integrating with a generator controller, the Woodward EGCP-2 Engine Generator Control Installation Manual covers paralleling and load sharing. Older Woodward governors are still in the field – the Woodward 3161 Governor Operation Manual 03107B gives you the legacy perspective. For external reference on related vehicle systems, the wiring interfaces shown in this manual can connect to a Vehicle Speed Sensor for road‑speed limiting, and the throttle linkage guides match the Manual Transmission configurations found in industrial trucks.

Is this manual the same as the one Woodward sold in 2004?

Yes. This is the exact factory PDF from Woodward Governor Company, published in 2004. 118 pages, no edits or abridgements. It matches the original printed manual.

What if I need torque specs for the mounting bolts?

The mechanical installation section starting on page 5 gives the torque values for the L-Series controller mounting fasteners and the drive coupling hardware. Use those numbers – I’ve seen stripped threads from people using aftermarket specs. Woodward’s values are the only ones guaranteed to hold the controller under vibration.

Access the Factory Manual now and get the same information Woodward shipped with every L-Series controller. No reprints, no third‑party errors – just the OEM data that keeps your installation reliable.
