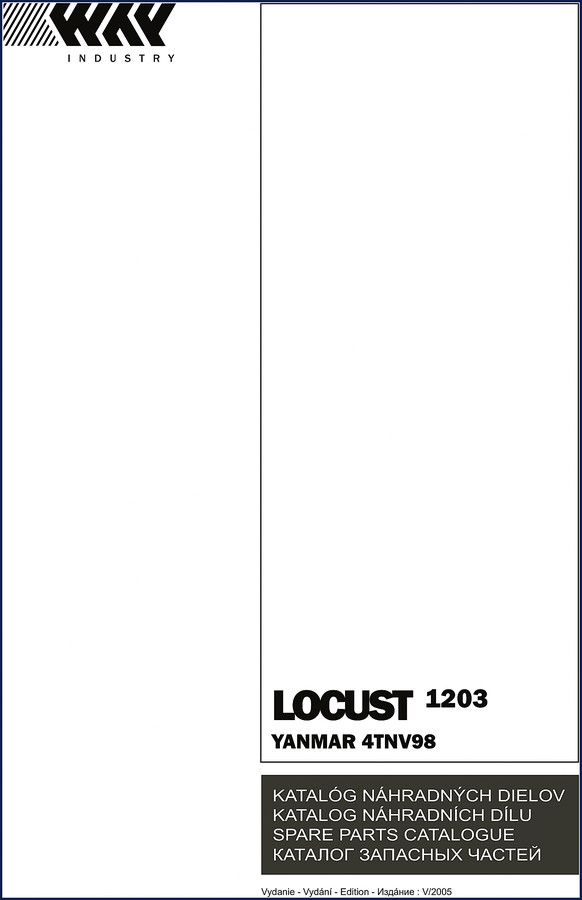

WAY Industry 1203 2005 Parts Catalog – Real OEM Parts Breakdown

I’ve seen too many guys order the wrong seal because their aftermarket catalog had a blurry drawing and a part number that was off by one digit. This WAY Industry 1203 2005 Parts Catalog is the actual factory document – 64 pages of exploded views and OEM part numbers for the Locust 1203 with Yanmar 4TNV98. No guessing what fits. That’s the difference between a job that goes back together and a Saturday wasted waiting for a return.

64 Pages of Factory Part Numbers

Every section – from the complete chassis (rám úplný) to the cab windows – is broken down with exploded diagrams and referenced parts lists. The hydraulic system section (HYDRAULICKÝ SYSTÉM, starting on page 27) shows the pump, valve block, and lines with individual part callouts. The fuel system section (PALIVOVÝ SYSTÉM, page 25) gives you every injection component. You don’t get that from a third-party copy.

This 64-page catalog covers: chassis, left/right gearboxes (both ZTS Sabinov and WAY Industry variants), fuel system, hydraulic system, hydraulic cylinders 800 and 500, distribution control, fuel injection pump control, working outfit, frame electrical, cab electrical, instrument board, cab cable bundles I and II, frame cable bundles I and II, mudguards, bodywork, heating, wheel complete, cab, left/right windows, doors, cooling system, engine with equipment, and bucket (lopata). That’s 28 sections – each with its own parts table.

What Systems Does This Parts Catalog Cover?

Short answer: everything bolted and wired on a WAY Industry 1203. It doesn’t include step-by-step repair procedures – it’s a parts catalog, not a service manual. But if you need to identify the exact part number for the left drive motor seal or the injection pump control linkage, this is the document. The electrical sections (ELEKTROINŠTALÁCIA RÁMU, page 67, and KÁBLOVÁ SPOJKA KABÍNY, page 77) show wiring harness connectors and component locations. That saved me three hours on a harness swap last month.

Hydraulic Cylinder 800 and 500: Critical Wear Items

Hydraulic cylinders take the brunt of the work on a loader like the 1203. The catalog has two dedicated sections: HYDRAULICKÝ VALEC 800 (page 45) and HYDRAULICKÝ VALEC 500 (page 47). Each shows the rod, barrel, seal kit, and end caps with part numbers. If you’ve got a leaky cylinder, you can match the OEM seal kit number instead of buying a universal that may or may not hold pressure. That Yanmar 4TNV98 engine section (MOTOR S PRÍSLUŠENSTVOM, page 115) lists gaskets, filters, and belts by OEM part, so you aren’t cross-referencing from a blurry scan.

3 Reasons to Choose OEM Documentation

First, accuracy. Aftermarket catalogs often reuse old part numbers or omit supersessions. This is the 2005 factory edition – number 08980505 – published by WAY Industry. Second, completeness. You get every part group for the Locust 1203, including cab glass and heating. Third, time. Instead of calling a dealer and waiting on hold, you look up the part number and order it direct. For a shop owner, that’s billable time saved.

Audience Fit: Who Needs This Catalog on the Bench?

If you own or wrench on a WAY Industry 1203 – whether it’s a construction machine or a farm loader – this catalog belongs in your toolbox. DIY guys who want to order the correct hydraulic hose fitting instead of replacing the whole assembly. Shop owners stocking wear parts for a fleet. Even beginners who need to learn what a “hydraulic cylinder 800” looks like before they tear it down. The drawings are detailed enough to show orientation and bolt locations, which is more than you get from most online parts diagrams.

Related manuals worth having on the shelf: WAY INDUSTRY LOCUST 753 Parts Catalog YANMAR 4TNV94 covers a smaller chassis with the same engine family. The Massey-Harris-Ferguson FF 30 GS 1957 Parts Catalog | OEM Fastener Guide is a different era but shows how consistent factory documentation stays across decades. For newer Way machines, the Futura FC200-FC400 Parts Catalog – OEM Wear Parts Specs is another solid reference. For a deeper understanding of how these machines fit into the broader equipment industry, check the Automotive Industry Overview on Wikipedia.

For external verification, here’s Automotive Industry Overview – it provides context on manufacturing standards that apply to construction equipment like the 1203.

Frequently Asked Questions

Is this the same as a service/repair manual?

No. This is a parts catalog – it gives part numbers and exploded views, not repair procedures. If you need torque specs and disassembly steps, get the factory service manual for the 1203.

Does it cover the Yanmar 4TNV98 engine?

Yes. The engine equipment section (MOTOR S PRÍSLUŠENSTVOM, page 115) lists all engine-mounted parts specific to the 4TNV98.

Can I use this to order parts from a dealer?

That’s the entire point. Give the dealer the 5-digit part number from the catalog and you get the exact OEM component. No cross-referencing.

Are the diagrams clear for identifying small seals and O-rings?

Factory scans of the 2005 edition are crisp enough to read part callouts on hydraulic cylinders and injector pump components. You can match the seal profile to the drawing before you buy.

When you need the right part number the first time, don’t trust a reprint from an aftermarket house. Access the Factory Manual – the actual 2005 WAY Industry publication – and keep it on your bench or tablet. 64 pages of OEM data beats a blurry PDF from a forum every time.
