Description

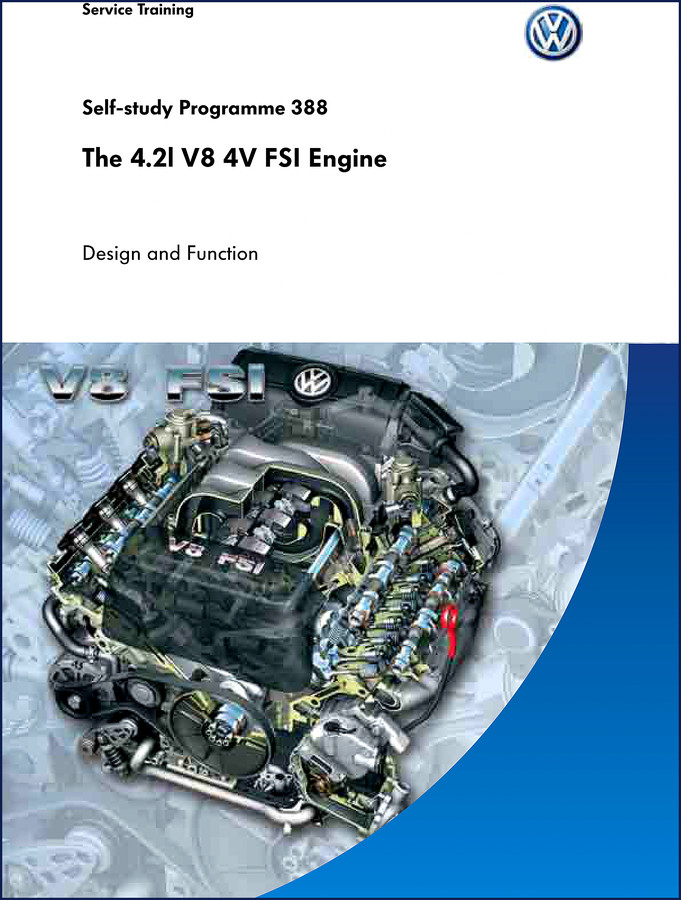

Volkswagen Group (implied By Audi/touareg) 4.2L V8 4V FSI Training Manual

You’ve got a Touareg or an Audi Q7 in the bay with that 4.2L V8 4V FSI engine. Maybe it’s a ticking noise from the chain drive, maybe a fuel pressure complaint. The aftermarket manuals will give you generic diagrams and torque values that match nothing. This 40-page factory training manual from Volkswagen Group (implied By Audi/touareg) is the real engineering doc – it tells you why the engine was built the way it was, not just where to put the wrench. I’ve been turning wrenches since before some of you were born, and I’ll tell you straight: if you skip understanding the design, you’ll chase ghosts for hours.

Engine Mechanics and Chain Drive

Page 6 lays out the chain drive layout for this 90° V8. Two chains – one for the camshafts, one for the oil pump. The tensioner routing is specific; get it wrong and you’ll have a rattle that sounds like a diesel. The manual shows the exact path of the chain and the location of the guide rails. I don’t care how many timing jobs you’ve done – if you haven’t seen the factory diagram, you’re guessing. The ancillary unit drive on page 7 includes the belt routing for the alternator and water pump. No aftermarket chart in my shop beats this OEM print.

Cooling Circuit and Fuel System

FSI engines are temperature-sensitive. The cooling circuit diagram on page 17 shows the coolant flow through the block, heads, and the separate circuit for the intake manifold. You need that print to purge air properly after a water pump job. The fuel system chapter (page 18) covers the high-pressure pump and direct injection rail. If you’re swapping injectors, the training manual explains the fuel pressure sensor feedback loop – that’s the difference between a running engine and a hydro-locked one.

CAN Networking and Sensors – Page 24

Modern engines talk to each other through CAN. Page 24 details the CAN networking between the engine control unit, transmission, and ABS. When you probe a sensor and get no signal, you need to know which bus it lives on. Sensors (page 25) include the knock sensors, camshaft position, and the wideband oxygen sensor. The manual gives you the expected resistance ranges and signal patterns. Ive seen guys replace a crankshaft sensor three times because they didn’t check the wiring harness ground – the OEM wiring diagram would have saved them two hours and a lot of swearing.

Service and Test Yourself – Page 38

Page 38 lists service intervals – oil change, chain tension inspection, coolant replacement. Page 39 is a self-test section. Yes, a training manual that quizzes you. If you can’t answer the questions, you shouldn’t be tearing into this engine yet. That’s the kind of honesty you get from factory literature. This isn’t a sales brochure; it’s a teaching tool.

Why OEM Beats Aftermarket Every Time

I keep a stack of aftermarket manuals in the shop for reference, but I always start with the OEM training manual. The reason is simple: the specs aren’t filtered through a third-party editor who thinks “about 30 ft-lbs” is acceptable. This manual comes straight from the engineers who designed the 4.2L V8 4V FSI. The torque values, the clearances, the timing marks – they’re exact. If you’re doing a head job on this engine, you need the factory data on cylinder block (page 10) and cylinder heads (page 11). Aftermarket manuals often skip the material specifications for the block, which matters when you’re deciding whether to helicoil a stripped spark plug thread.

Who Should Buy This?

DIY home garage guys who own a Touareg or Audi Q7 with this engine. Also professional techs who want to understand the FSI direct injection system before pulling the intake manifold. The manual covers engine mechanics, intake system, oil supply, crankcase ventilation, and exhaust. If you’ve ever had a mysterious lean condition on a 4.2L V8 FSI, the exhaust system chapter (page 19) shows the routing of the secondary air injection – a common cause of check engine lights that most backyard mechanics miss.

Related manuals you might need: the Hyundai Kia Transaxle Training Manual covers the drivetrain side if you’re doing a full powertrain swap. For heavy equipment guys, the Gottwald HMK 260E Training Course Manual 2003 is a whole different animal. And if you work on big trucks, the Meritor Wabco ACTROS Training Manual – 39 Pages OEM EBS is gold for brake systems. For background on how manual gearboxes work with this engine, read about the Manual Transmission basics, and if you’re swapping in a different gearbox, check the Manual Transmission adapter plate specs.

Is this a repair manual or a training manual?

Training manual. It covers design and function – not step-by-step repair. Use it to understand the system before grabbing a service manual.

Does it include torque specs?

Yes, for critical fasteners like cylinder head bolts, but the manual focuses on design. For full repair specs you need the workshop manual – this is the companion.

Will this help me diagnose a misfire on my 2008 Audi Q7 4.2?

Absolutely. The sensors chapter (page 25) and CAN networking (page 24) give you the signal patterns to confirm each cylinder’s function. Without understanding the fuel injector control, you’ll waste time swapping coils.

How many pages?

40 pages. Tight, dense, every page counts.

You can get this factory training manual right now. Access the Factory Manual and put it on your tablet next to the engine stand. The first page saves you one mistake. That’s worth the price of a cheap torque wrench.
