Volvo Trucks TEA 2, TEA 1 Technical Manual – What Every Tech Needs to Know About ECU Networks

If you’ve ever stared at a Volvo TEA 2 with twenty fault codes from different ECUs and wondered where to start, you know the problem. The old days of isolated function groups are gone. Now one bad speed sensor can light up the dash on every box – EECU, VECU, EBS, you name it. This 54-page Technical Manual is the factory document that explains how these systems talk to each other. It’s not a generic wiring book. It’s the original Volvo Trucks material that covers TEA 1 and TEA 2 architecture, including J1939 and J1587 datalinks, signal sharing, and the cross-dependency that makes chasing electrical gremlins a nightmare without it.

System Communication – Why This Manual Starts on Page 1

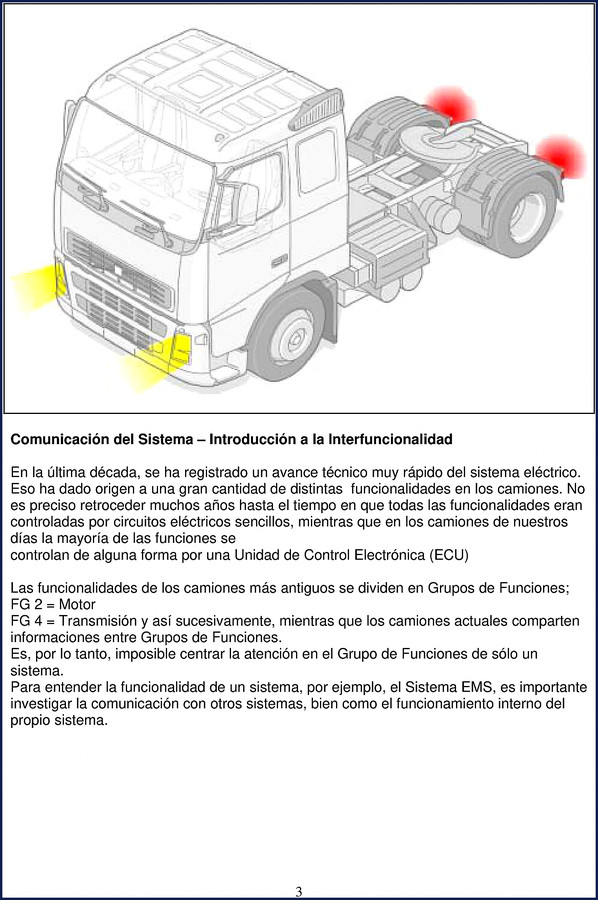

Page 1 of this manual dives straight into Comunicación del Sistema – Introducción a la Interfuncionalidad. That’s a fancy way of saying: if you don’t understand how ECUs share data, you’ll chase ghosts. The manual explains why modern Volvo trucks can’t be diagnosed by looking at one system in isolation. Example from the text: the speed signal comes from both the EBS and VECU, then gets used by EMS, ECS, LCM, TECU, and more. So when that signal drops, you get codes in every controller. This manual shows you the relationship map – not just a list of pins.

Interoperability of ECUs – TEA 2 vs TEA 1

There’s a reason the manual covers both versions. TEA 1 started the shift toward interdependent control units. TEA 2 took it further, using existing components as part of multiple functions. The manual breaks down examples like the retarder function: the functionality lives in RECU and EECU, but the calculations happen in VECU and EBS. On page 3 it spells out another example – the accelerator pedal. In TEA 1 and TEA 2 the pedal function is in EECU and VECU, but the data processing is in VECU. Miss that nuance and you’ll replace the wrong box.

Rastreo de Averías – The Hard Part? The Manual Tells You Where to Look

Troubleshooting these trucks is the main reason this manual exists. The factory acknowledges the downside: complex cross-ECU dependencies make fault tracing harder. A single sensor fault can trigger 20 to 30 codes across multiple systems. The manual doesn’t just list codes – it explains which ECUs participate in each function and where to start your diagnostic. If you’re working on a Volvo that won’t communicate on the J1939 bus, you need this. Pair it with a good Manual Transmission diagnostic guide when the driveline is involved, and you’ll cut your diagnostic time in half.

7 ECU Systems Covered – What’s Inside the 54 Pages

This isn’t a repair manual for replacing water pumps. It’s a technical deep-dive into the electronic architecture. You get the factory explanation of how the VECU, EECU, EBS, RECU, LCM, TECU, and instrument cluster exchange data. The manual shows signal flow, calculation points, and the exact role each controller plays in common functions like retarder control and accelerator pedal interpretation. For the steering and suspension side of a related Volvo platform, grab the Volvo Trucks 850 1995 Technical Manual – Steering & Suspension. For injector waveform diagnosis on the same engine family, the Volvo Trucks 850 1995 Technical Manual – Injector Waveform Guide will fill in the gaps. And if you’re working on a heavy excavator with similar ECU logic, the Volvo EC700B 2005 Technical Manual – Factory Delivery Specs helps cross-reference signal patterns.

Who Needs This Manual and Why It’s Not a Wiring Diagram

If you’re a DIY shop owner or a fleet mechanic who’s seen the inside of a Volvo cab, you know the difference between an aftermarket binder and a factory OEM manual. This one is factory-printed material from Volvo Trucks, not a third-party rehash. The language is dense – it’s in Spanish, which matches the original factory release, but the diagrams and signal flow charts are universal. You don’t read it cover to cover; you use it as a reference when the troubleshooting tree hits a dead end. Beginners will need to study the system communication chapter twice because it rewires how you think about electrical diagnosis. Professionals will appreciate the buried detail on J1587 vs. J1939 priority handling. For transmission diagnostics, combine this with the Manual Transmission section from a matching year manual to see how the TECU shares data with the driveline.

Does this manual include torque specs for engine components?

No. This is a system communication and interoperability manual, not an engine rebuild guide. It focuses on ECU networks, signal flow, and diagnostic procedures. For torque values you need the specific engine or chassis repair manual.

What years and models does it cover?

The manual covers Volvo TEA 1 and TEA 2 electronic architecture. Those systems were used in Volvo trucks from the mid-2000s through 2010s approximately. Exact model years vary by region; check your VIN against the system identifiers in the manual.

Is the manual in English?

The original file is in Spanish. The technical diagrams and part number references are language-independent. If you read Spanish, you get the full context. If not, the illustrations still communicate signal paths and ECU relationships clearly.

Can I use this to fix a transmission shifting problem?

Indirectly. The manual explains how the TECU communicates with the VECU and EBS via J1939. If your shift problem traces to a loss of speed signal or a CAN bus fault, this manual tells you how to isolate the fault. For mechanical transmission repairs, you’ll need a separate transmission-specific manual.

You’ve got a 54-page factory document that shows you how Volvo intended these systems to work together. No guesswork, no aftermarket shortcuts. Access the Factory Manual from AutoRepairManuals and get the interoperability data that keeps your diagnostic time billable, not wasted on swapping parts.
