Volvo Trucks EC700B 2005 Technical Manual

You’re a dealer tech or a field mechanic and you’ve got a brand-new EC700B sitting on the yard, waiting to be prepped for a customer. The factory says you need a delivery procedure, not a guess. I’ve seen too many machines leave the shop with misaligned tracks, wrong counterweight clearance, or a boom that hits the cab because somebody used a generic spec. That’s not how Volvo Trucks works. The Volvo Trucks EC700B 2005 Technical Manual is the only document that tells you exactly what’s required. 24 pages, straight from Volvo Construction Equipment Korea. No reprints, no aftermarket garbage.

Purpose: Why This Manual Exists

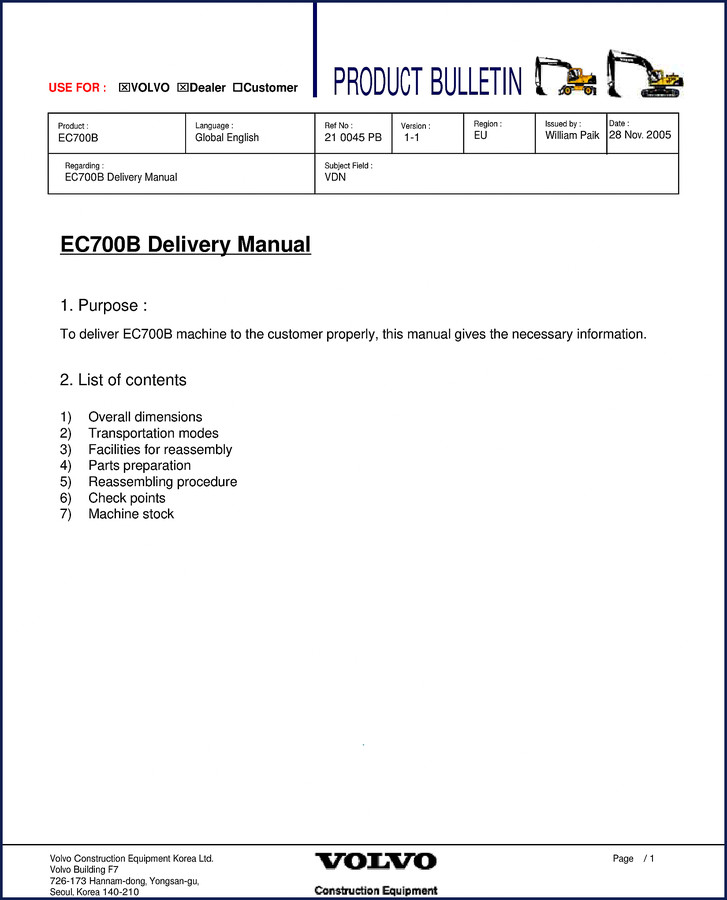

Page 1 opens with a single purpose: “To deliver EC700B machine to the customer properly, this manual gives the necessary information.” That’s it. Not a service manual – a delivery manual. It covers everything from uncrating to final inspection. If you’re doing a reassembly after transport, this is your roadmap. Skip it and you’re fixing something you shouldn’t have broken.

Overall Dimensions: Know Your Machine’s Footprint

Page 2 gives you the full dimension table for the EC700B with 650mm (26-inch) shoes. Overall length ranges from 12,200 mm (40 ft 0 in) with a 6.6m boom to 13,320 mm (43 ft 8 in) with a 7.7m boom. Tail swing radius? 4,090 mm (13 ft 5 in). Counterweight clearance? 1,507 mm (4 ft 11 in) – and that’s with shoe grouser. You need these numbers before you roll the machine onto a lowboy or into a shop bay. One inch off and you’re buying a new overhead door.

Transportation Modes: Moving the EC700B Safely

Page 3 diagrams four transport modes, each with its own weight distribution. Mode 1 weighs 66,300 kg (146,000 lb) – that’s with the 650mm shoe retracted. Width varies by shoe: 3,400 mm (11 ft 2 in) for 650mm, up to 3,650 mm (12 ft 0 in) for 900mm. If you’re loading onto a trailer, you need the right tie-down points and axle loads. The manual notes weight and dimensions change with spec – so don’t assume. Measure.

Reassembling Procedure: Don’t Skip Step 5

The manual’s table of contents lists seven sections. Section 5 is “Reassembling procedure.” That’s where you’ll find the sequence for putting the boom, arm, counterweight, and tracks back together after transport. I’ve watched techs try to bolt a boom without supporting the base – that’s how you strip threads. Follow the factory sequence. Torque values aren’t in this bulletin, but the reassembly steps call out bolt torque specs elsewhere in the Volvo parts system. Don’t mix brands: use only genuine fasteners.

Check Points: The Final Walk-Around

Section 6 is “Check points” – your pre-delivery inspection list. Hydraulic levels, track tension, swing bearing bolts, boom pin retention. Each item is a step, not a suggestion. If you skip the “Parts preparation” (section 4) – cleaning threads, greasing pins, inspecting seals – you’ll be doing a warranty repair before the customer leaves the lot.

Who Needs This Manual and Why It Matters

This PDF is built for two groups: dealer technicians who receive an EC700B in pieces, and shop owners who certify transport configurations. If you’re a DIY owner-operator reassembling after a lowboy trip, you need this. Aftermarket manuals will give you generic excavator dimensions – they won’t tell you that the EC700B’s counterweight clearance with a grouser shoe is 1,507 mm. That’s an OEM number, verified at the factory in Korea. I don’t trust third-party prints on anything with a hydraulic system this size.

Source Validity: OEM vs Aftermarket

I’ve been under hoods longer than most of you have been driving. Aftermarket books have cost me billable hours because they transpose a “–” into a wrong figure. This manual is a scanned OEM bulletin from Volvo Construction Equipment Korea Ltd., document number 21 0045 PB, dated 28 Nov. 2005. Every dimension is in millimeters and feet-inches on the same table – no unit conversion errors. The file is 24 pages, bookmarked, searchable. That’s the kind of document you keep in your tablet case, not the glovebox.

Frequently Asked Questions

Does this manual cover engine or transmission torque specs?

No. It’s a delivery manual – dimensions, transport modes, reassembly steps. Torque specs for major components like final drives or boom pins are in separate Volvo service manuals. If you need engine or drivetrain data, look for the corresponding Technical Manual for that system. Check the Volvo Trucks 850 1995 Technical Manual – Steering & Suspension for steering specs on older platforms.

Can I use this manual for a different Volvo excavator model?

No. This is EC700B-specific. Dimensions, transport weights, and reassembly steps change with model. Using it for an EC460 will get you a torn-down machine that doesn’t fit the trailer.

What if I lose the bolt pattern diagram during reassembly?

Check page 2 for the overall dimensions table – it shows boom and arm lengths that dictate which bolt pattern applies. For the actual pattern, you’ll need the Volvo service manual for the boom assembly. The delivery manual tells you the sequence, not the pattern.

Why should I pay for an OEM manual when there are free aftermarket PDFs online?

Because a free PDF that claims to cover the EC700B but shows a generic track tension chart will cost you an hour of idle time when the track throws. The OEM manual has Volvo’s exact transport modes, verified counterweight clearance, and part preparation steps that aftermarket shops don’t know exist. One wrong dimension on a 66-ton machine means a bent boom or a cracked frame. The 24 pages of this manual pay for themselves the first time you avoid a $5,000 repair. Also, aftermarket copies often miss the “Facilities for reassembly” section – that’s the table on page 2 that lists required overhead clearance. You need that.

You’ve got the EC700B on your lot or your trailer. Don’t trust a generic guide. Access the Factory Manual and keep the reassembly on spec.
