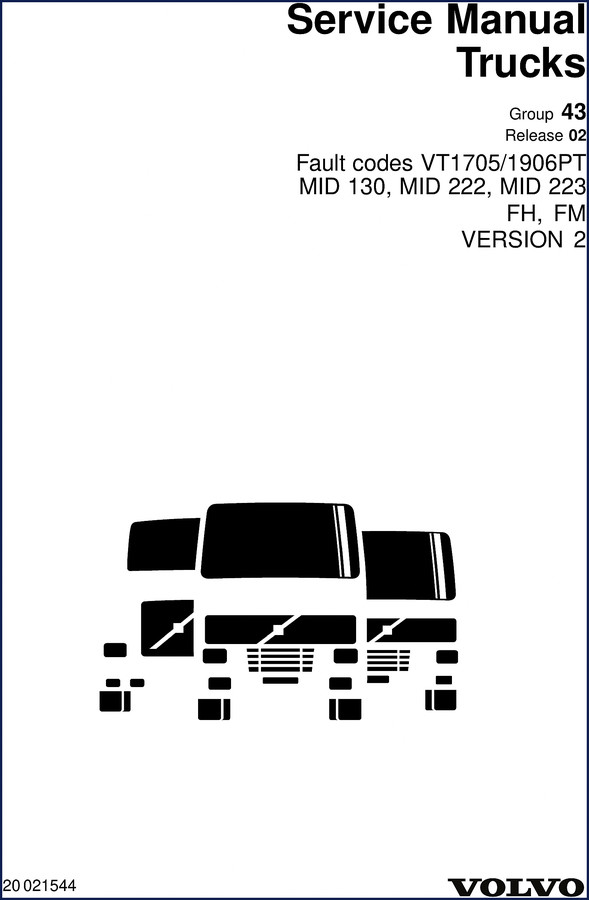

Volvo Trucks FM, FH, VT1705, 1906PT 2005 Service Manual

If you have ever chased a ghost fault on a VT1705 or VT1906PT with a generic code reader, you know exactly why this manual exists. You don’t need a reprint or a third-party summary. You need the factory document that Volvo Truck Corporation released in 2005 – 118 pages of fault code tables, electrical diagrams, and signal descriptions that let you pin down which solenoid valve or sensor is lying to you. My name is Mike Callahan. I have a six-bay shop in San Antonio, TX, and I have torqued enough head bolts to rebuild a fleet. When you crack open this manual, you will see exactly what a real OEM service manual looks like: no fluff, no editorializing, just the engineering data that gets the truck back on the road.

The core of this manual addresses the gearbox control unit (MID 130), the gear selector control unit (MID 223), and the range/engine control units (MID 222). It is designed for FM, FH, VT1705, and 1906PT models equipped with I-Shift or similar automated transmissions. The Volvo Trucks FM, FH, VT1705, 1906PT 2005 Service Manual is not a general guide – it is a diagnostic weapon aimed at the 43 fault code families listed in Group 43. If you skim the Table of Contents, you will see every PID and SID from oil level (PID 124) to solenoid valve S1 through S5, including the PWM valves for lock-up and brake pressure. This is the kind of specificity that saves you from swapping parts that are not broken.

Fault Code Diagnostics for the Gearbox Control Unit

Dive into MID 130 and you will find each fault code broken down with an FMI table. Take PID 124 Oil Level, gearbox: the manual gives you the FMI 1 condition, the symptom, and the expected system response. Same for PID 127 Oil Pressure, gearbox – FMI 1 and FMI 5. Page 4 shows you component locations for sensors like the turbine speed sensor (B08A) and the oil temperature sensor (B09). That page alone saved a local fleet operator four hours of chasing a false low-oil-pressure alarm. The manual does not assume you know which valve block feeds which solenoid – it lists them by name and function.

What Electrical Diagrams Are Included?

One of the biggest pain points for any technician is tracing a wiring fault without accurate schematics. This manual includes the internal circuit diagram for the gear selector control unit (MID 223), plus the breakout box connections for both the gearbox control unit and the gear selector control unit. You get pin-by-pin signal descriptions for the breakout box adapter connected to MID 130 and MID 223. If you have ever stared at a J1939 data link interruption code (PSID 200), you know that a generic wiring diagram is useless. The factory diagram shows you exactly where the interruption occurs and what the control unit expects to see on that circuit.

7 Systems Covered by Fault Code Tables

The manual organizes the fault code table by MID (Message Identifier) and then by PID/SID/PSID. You will find coverage for:

• Oil level, oil pressure, oil temperature, battery voltage
• Input shaft speed, output shaft speed, engine RPM
• Solenoid valves S1–S5, S7 forward clutch, S8 reverse clutch
• PWM valves S11 main pressure, S13 brake pressure, S14 lock-up
• J1939 and J1708 data links
• Brake/clutch slipping, lock-up clutch slipping
• PTO solenoid valve and calibration memory (EEPROM)

Each fault code includes a General Information section and a Fault Code subsection with the corresponding FMI. That is the level of detail you need when the transmission throws a FMI 5 (current below normal or open circuit) on solenoid valve S3 – you do not have to guess whether the coil is shorted or the wiring is chafed.

Verify Solenoid Valve S1 Through S5

Let me tell you about solenoid valves S1–S5. These control speed gear selection in the VT1705 and VT1906PT gearboxes. The manual gives you the specific FMI codes for each valve – FMI 5 and FMI 6 appear repeatedly. FMI 5 means current below normal – often a broken wire or a corroded connector at the Y30C valve block. FMI 6 means current above normal – a short to ground or a failed solenoid coil. With the breakout box connection diagrams on page 5, you can backprobe the control unit connector and confirm the signal without disconnecting anything. That is the difference between an hour of diagnosis and an afternoon of unnecessary disassembly.

OEM vs Aftermarket: Why Factory Specs Matter

I have seen aftermarket manuals that claim to cover Volvo fault codes but list only 12 codes and skip the electrical diagrams entirely. This is a direct scan of the original Volvo Truck Corporation document – order number 20021544. It includes the warning levels (Note, Caution, Warning, Danger) exactly as Volvo wrote them in 2005. If you follow the diagnostic procedures here, you avoid the liability of guessing. The manual also references Volvo Standard Times (V.S.T.) for operation numbers in service procedures – something no third-party reprint ever bothers to retain.
