Volvo Trucks L190 1990 Parts Catalog

If you’ve ever spent an afternoon on a loader that’s down because the parts guy sent you the wrong seal kit, you know why this catalog belongs on your bench. The Volvo Trucks L190 1990 Parts Catalog is the one piece of paper that kills the guesswork when you’re staring at a broken machine. I’ve been turning wrenches for twenty-eight years, and nothing burns my time like a misordered part. This catalog stops that cold.

What This Parts Catalog Actually Contains

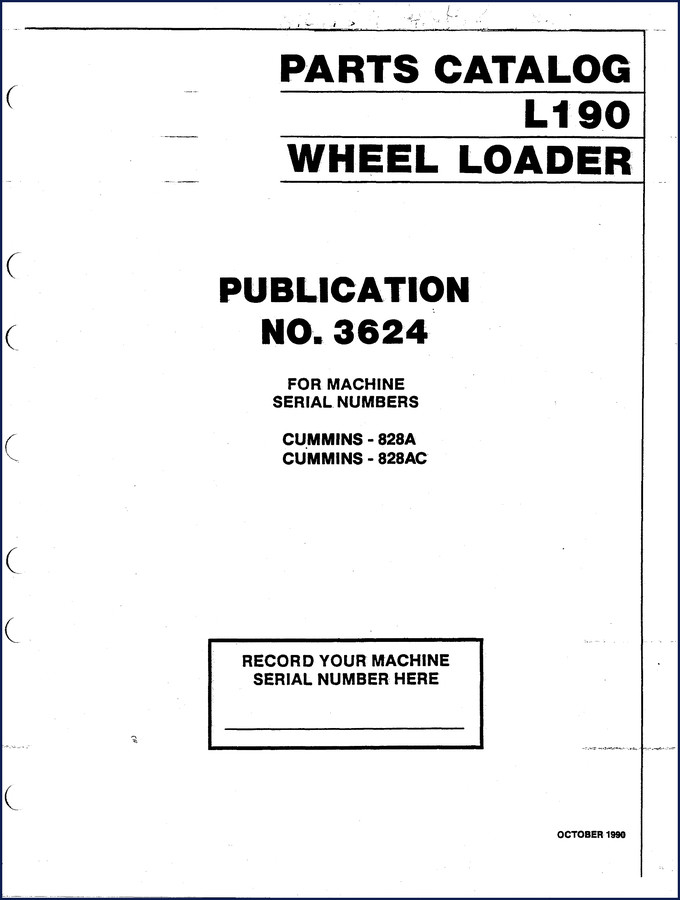

The publication number is 3624, printed October 1990, and it covers L190 wheel loaders with Cummins 828A and 828AC engines. Inside you get 590 pages organized by group numbers – not some sloppy aftermarket rehash. Each page carries an issue date at the bottom, and the first three numbers tell you the revision level. That matters because Volvo Trucks updated supersessions without warning. The catalog includes an alphabetical index up front to find group numbers fast, plus a numerical index in the rear. You look up a part number, and it spits back the group and illustration reference. No flipping through twenty pages of generic diagrams.

590 Pages of Factory Specs

That’s not filler. Every page is a scanned original from VME – the group that built these loaders. The illustrations show typical arrangements; they are not assembly guides, so don’t use them to torque bolts. But they are dead-on for identifying which hydraulic line bracket you need or which O-ring fits the steering cylinder. The serial number range is printed on page 1: Cummins 828A and 828AC. Record your machine serial number right there. When you call a dealer with that number and the part number from this catalog, you get the right box. Every time.

OEM Documentation vs Aftermarket: Why It Matters

Aftermarket parts catalogs renumber things. They drop superseded numbers and skip illustrations. This Volvo Trucks L190 Parts Catalog gives you the original part numbers – not a cross-reference that “might” fit. Page 3 states it plainly: “Order by Part Number, Description and Quantity.” If you feed a dealer an aftermarket number that’s been re‑mapped, you’ll get a return label instead of a seal kit. I’ve seen it happen. This catalog also tells you to furnish “complete SHIPPING INSTRUCTIONS” – that’s the kind of detail that keeps a shop from waiting three extra days because the address line was wrong.

Who Needs This Catalog?

DIY mechanics who own an L190 and want to buy their own fuel injector parts without paying markup. Fleet owners who need to stock common wear items. Mechanics who get handed a machine with missing tags. If you have an L190 with a blown hydraulic pump and you don’t have this catalog, you’re going to spend hours disassembling just to get a casting number that might be obsolete. With this catalog, you flip to the group number for pumps, trace the illustration, and order the correct rebuild kit.

Using the Alphabetical and Numerical Indexes

The alphabetical index is your first stop. Look up “steering” and you get group numbers. Then go to those pages. The numerical index in the rear works backwards – find a part number you pulled off the old piece, and it tells you which group it belongs to and the illustration key. This catalog even explains the symbols on a separate page. Read that page once. It saves you from interpreting a dashed line as “optional” when it actually means “not shown in this view.”

Related Manuals You Might Need

If you work on other Volvo loaders, check these OEM catalogs: Volvo Trucks L480 1990 Parts Catalog – OEM Factory Specs, Volvo L270B Wheel Loader Parts Catalog Pub. 3767, and Volvo L140 Wheel Loader Parts Catalog Publication No. 3678. Each one follows the same group-number system. Keep them all on the same tablet or binder, and you’ll swap parts between models without a second trip to the dealer.

For a broader look at off‑highway vehicle systems, see Automotive Industry Overview. If you want background on the engine itself, start with Internal Combustion Engine. But for the L190 specifically, this catalog has everything you need.

Does this catalog include repair procedures or torque specs?

No. This is a Parts Catalog only – illustrations and part numbers. You need the separate service manual for torque values and assembly steps.

Can I use it for an L190 with a different engine?

This edition covers only Cummins 828A and 828AC. If your machine has a different powerplant, you need the catalog that matches your serial number.

How do I confirm a superseded part number?

Page 3 explains that each page has a revision date. The first three digits indicate the revision level. If a part was superseded after 1990, you’ll need the latest dealer supersession list. This catalog gives you the base number.

Is this an original factory publication or a reprint?

This is a scan of the original October 1990 VME publication, not a re‑typed aftermarket copy. The page numbers, group numbers, and part numbers are exactly as Volvo released them.

You don’t need a subscription or a dealer login to get the right part number. Access the Factory Manual and keep it on your phone or tablet. Next time a hydraulic hose bursts, you’ll have the group number, the illustration, and the part number before you even walk to the machine.
