Volvo Trucks L480 1990 Parts Catalog – OEM Factory Specs

If you work on a Volvo Trucks L480 1990 Parts Catalog machine, you know the pain of ordering a part that doesn’t fit. You waste time, the machine sits, and the boss is breathing down your neck. This is the factory catalog – 500 pages, published September 1990, straight from VME. It tells you exactly which part number to order, by group number and serial number range. No aftermarket guessing. No translation errors.

Group Number System: How to Find Parts Quickly

The catalog is laid out by group numbers in consecutive order. Every component – engine, hydraulics, drivetrain – gets its own group. Turn to the alphabetical index to find the group you need. Page numbers? Not as critical here; the group number is your anchor. For example, need a fuel injection line? Find the engine group, then look up the part. The illustrations are typical examples, not assembly guides. Use them to identify the part, not to reassemble the damn thing.

Alphabetical and Numerical Indexes

Two ways in: the alphabetical index at the front lets you search by component name. The numerical index in the rear lets you look up a part number to see what machine groups it’s used in. That’s a hell of a lot faster than flipping through the whole catalog. Keep the serial number of your L480 handy – the catalog lists parts for Cummins 829A and 829AC engines. Cross-reference before you order.

3 Reasons to Use OEM Replacement Parts

First, fit. Factory parts are machined to the same tolerances as the original. Second, durability. Aftermarket steel might save a few dollars, but it won’t hold up under load. Third, safety. A brake line that bursts because the thread pitch was off? That’s on you. VME recommends Original Equipment Replacement Parts for a reason. Your machine, your liability.

What About Aftermarket Catalogs?

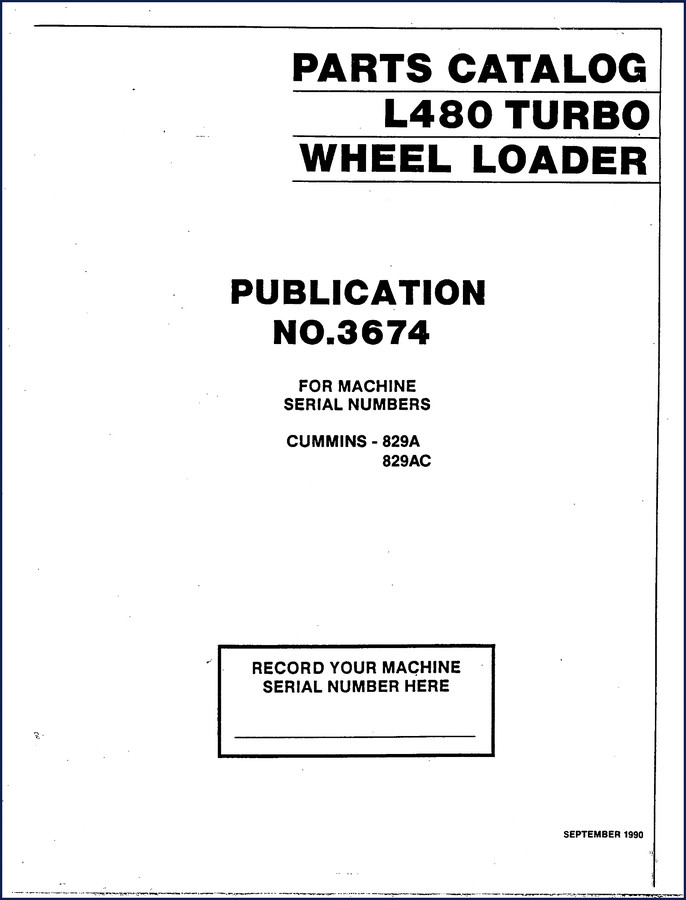

I’ve seen third-party parts books that lump multiple models together and leave out critical serial number breaks. This catalog is specifically for the L480 Turbo Wheel Loader (Publication No. 3674). The issue date at the bottom of each page tells you the revision level – that matters when Volvo updates a part. You won’t get that from a scanned copy off some forum. Compare that to the Internal Combustion Engine basics you already know – the devil is in the details.

Related manuals you might need: Volvo L270B Wheel Loader Parts Catalog Pub. 3767, Volvo L140 Wheel Loader Parts Catalog Publication No. 3678, Volvo L270 Wheel Loader Parts Catalog 1991.

FAQ

Does this catalog include torque specs or repair procedures?

No. This is a parts catalog – part numbers, illustrations, ordering instructions only. For torque specs and repair steps, you need the service manual. This catalog gets you the right part; the service manual tells you how to install it.

How do I use the numerical index?

Look up a part number in the index. It will show which group numbers use that part. Then go to that group page to see the illustration and order details.

Access the Factory Manual. Stop wasting hours with wrong parts and bad info. Get the OEM catalog that the dealer uses – it’s the same 500-page book printed in 1990. Your L480 will run right, and you’ll sleep better knowing the part number is correct.
