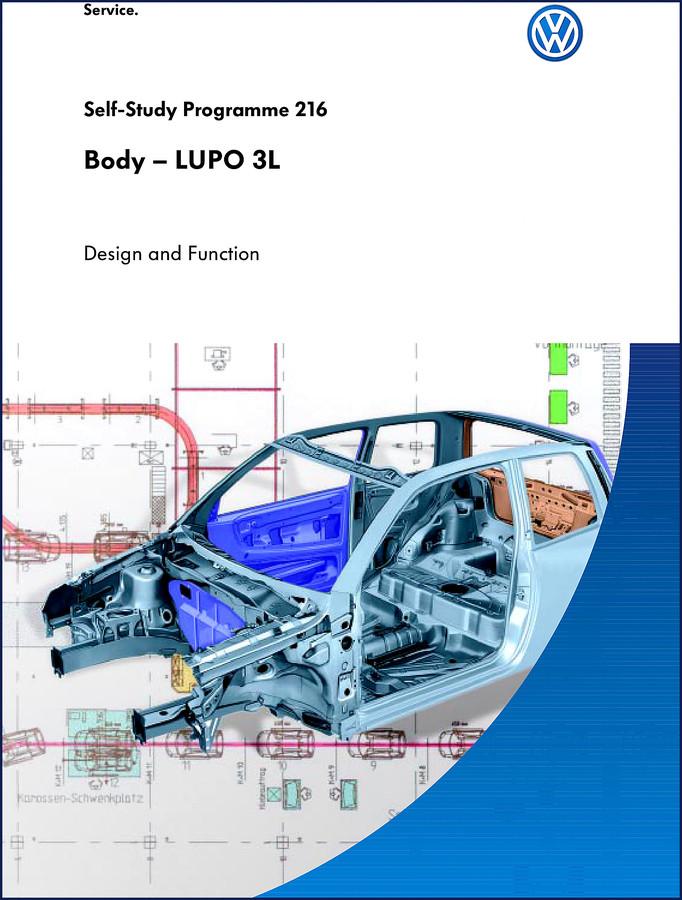

Volkswagen Lupo 3L Training Manual

I’m Mike Callahan, 28-year ASE Master Tech. I’ve seen what happens when someone tries to diagnose a Lupo 3L using a generic aftermarket PDF – stripped threads, misread wiring diagrams, hours wasted. That car has 80% redesigned parts from the standard Lupo, and the factory Volkswagen Lupo 3L Training Manual is the only document that explains why those parts work the way they do. This is not a workshop manual – the first page says it – but without it, you’re guessing on system logic. 56 pages of pure Volkswagen engineering.

The Trendsetter – What VW Changed for the 3-Liter Car

Section starts on page 4 with “The trendsetter.” Volkswagen didn’t just slap a small engine in a Lupo. They redesigned roughly 80% of the parts: lighter body, electro-mechanical power steering, a dedicated 1.2L TDI with pump injection, and the DS085 electronic manual gearbox. If you’re working on one of these, you need to know why the running gear is different from a standard Lupo. The manual lays out the design philosophy – essential for any tech who doesn’t want to break something that looks familiar but isn’t.

Specifications – Page 13 Has the Numbers You Need

Page 13 is where the raw data lives: engine power, torque curves, fuel consumption targets, gear ratios, weights. I don’t trust aftermarket spec sheets – they copy each other’s typos. This is the original Volkswagen data printed for dealer training. Need the exact displacement of the 1.2L TDI? It’s there. Want to know the curb weight of the Lupo 3L? Page 13. Write it on a sticky note and tape it to your toolbox.

1.2L TDI Engine: What the Training Manual Reveals

The engine chapter runs from page 14 to page 21. Covers the pump injection system (unit injectors), the cylinder head design, the turbocharger layout, and the engine management. The manual explains the two-cylinder running strategy during idle – that’s a unique feature of the 3L. If you’re troubleshooting a misfire or a no-start, you’ll find the sensor locations and the logic flow. OEM torque specs for the cylinder head? They are in the service manual referenced here, but this training manual tells you why the head bolts are tightened in that sequence. That understanding keeps you from breaking a bolt.

DS085 Electronic Manual Gearbox – Factory Procedure

Section starts on page 22. The 085 gearbox is a manual with an automated clutch – no torque converter. This training manual shows the hydraulic clutch actuation, the control unit logic, and the sensor inputs. Want to see the shift actuator assembly? Page 24. The manual explains the self-adjusting clutch mechanism. A beginner can get lost in the wiring; this document gives you the signal flow. Pair it with the Volkswagen Bora Golf Passat Trailer Guide 2009 Service for a broader view of VW electrical practices, but for the Lupo 3L, stick to this SSP.

The Electrical System – Page 41 Starts the Wiring Logic

Page 41 kicks off the electrical system chapter. The Lupo 3L uses a CAN-bus network, a battery management system, and a reduced wiring harness weight. The manual covers power distribution, control unit locations, and the electro-mechanical power steering (also covered in SSP 225). If you’re chasing a parasitic drain or a CAN communication fault, this chapter shows the bus topology. You don’t get color-coded wiring diagrams here – those are in the workshop manual – but you get the system block diagrams that let you diagnose without guessing. Volkswagen SSP 216 Body – LUPO 3L Design and Function covers the body electrical; this training manual covers the powertrain electrical.

Does This Manual Cover Heating and Air Conditioning?

Yes, from page 46. The Lupo 3L uses a compact HVAC unit with a separate coolant heater to reduce engine warm-up time. The manual explains the control flap positions, the refrigerant circuit, and the heating strategy. For a home garage enthusiast, this section is critical if you’re swapping a compressor or diagnosing weak heat. No torque specs for A/C lines here, but the system overview prevents you from assuming it’s the same as a standard Lupo. It isn’t.

Service – 5 Pages of Maintenance Pointers

Page 52 through 56 cover service intervals, special tools (VAS 5051, etc.), and inspection points. The manual lists the required tool numbers for jobs like belt tensioning and clutch adjustment. I’ve seen guys try to use a generic scan tool on the 3L and then complain the control unit won’t communicate. That’s because the 3L uses a specific diagnostic protocol. This manual tells you which tester to use. Volkswagen 2.3-ltr. V5 Training Manual – OEM Factory Specs is another factory document for a different engine family – same level of detail.

Audience Fit – Who Needs This Training Manual?

Home garage enthusiasts who own a Lupo 3L and want to understand why their car behaves differently. DIY mechanics who are swapping engines or upgrading the electrical system. Beginners who need to learn the differences between the 3L and standard Lupo before they pick up a wrench. Professionals like me who need the design rationale to diagnose odd symptoms. If you’re in any of those groups, this 56-page self-study programme is the foundation. Don’t expect repair procedures – go to the service literature for that. Expect to understand the system logic so you can work faster and safer.

Source Validity – Why OEM Training Manuals Matter

Every torque spec, every wiring diagram, every design note in this manual came from Volkswagen’s engineering department. Aftermarket documentation for the Lupo 3L is rare, and when it exists, it’s riddled with errors. I’ve opened third-party manuals that list the wrong fuel injection timing. This SSP was printed for dealer training – it’s the same material VW techs studied before they touched a 3L. Automotive Industry Overview shows how factory standards protect both techs and vehicles. Manual Transmission is a general reference; this training manual gives you the specific transmission details for the 085 gearbox.

7 Systems Covered – Quick Reference

1. Trendsetter (design overview)
2. Specifications (page 13)
3. 1.2L TDI Engine (page 14)
4. DS085 Electronic Manual Gearbox (page 22)
5. Running Gear (page 32)
6. Electrical System (page 41)
7. Heating & Air Conditioning (page 46)

Each chapter builds on the last. Start with the trendsetter, then hit specs, then dive into the engine. You’ll understand the 3L’s fuel economy targets before you look at the injection system.

FAQ – Questions from the Workbench

Is this a workshop manual with repair steps?

No. Page 2 states it’s a self-study programme. Use the service literature for actual repairs.

What can I learn from this 56-page manual that I can’t find online?

This manual explains the engineering decisions behind the Lupo 3L – why the engine runs on two cylinders at idle, how the automated manual gearbox shifts, where the control units are located, and which special tools are required. Online forum posts often contradict each other; this is the original Volkswagen source. For example, the electrical system chapter on page 41 shows the CAN-bus topology that isn’t published anywhere else. If you skip this manual, you’ll waste time reverse-engineering systems that VW already documented.

Does it include torque specifications for the engine?

Not directly – the training manual points to the service literature for torques. It does list component weights and pressure specs that help you understand the system.

Can a beginner use this to fix their Lupo 3L?

Yes, as a learning tool. Pair it with the workshop manual and you’ll understand both the how and the why. Start with the trendsetter chapter, then read the engine section before you open the hood.

If you’re serious about working on a Lupo 3L without breaking things, this factory training manual is where you start. Access the Factory Manual from AutoRepairManuals and get the design logic straight before you turn a wrench.
