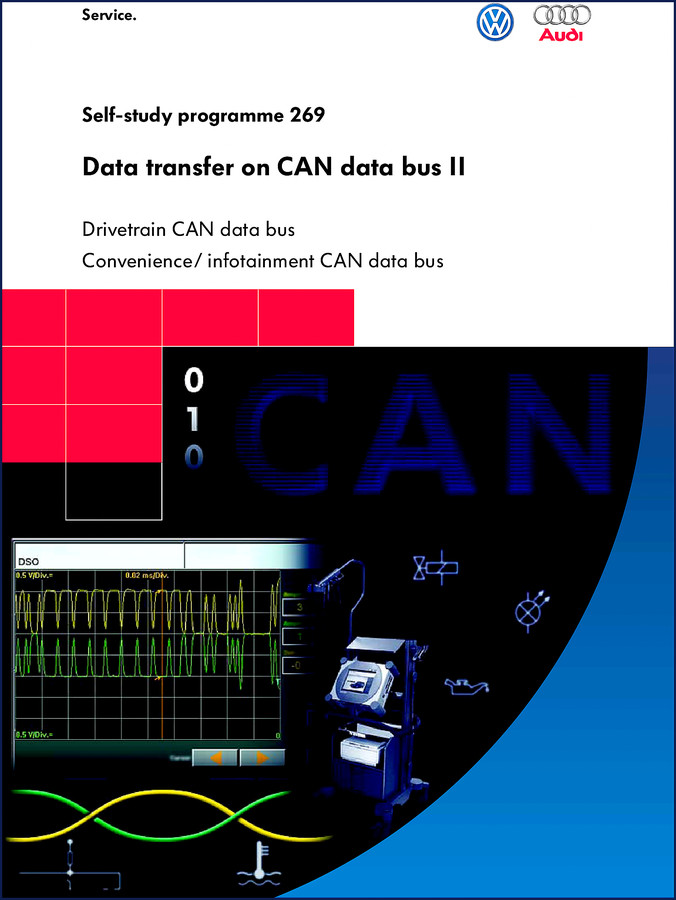

Volkswagen Audi, Volkswagen Training Manual – SSP 269 CAN Data Bus II

If you’ve ever had a Volkswagen or Audi come in with a CAN bus fault that left you chasing ghosts, you already know the pain. The spec sheets from aftermarket sources? They’re half-wrong. This Training Manual from the factory – 60 pages of real VW and Audi data – is what you need on the bench. Every voltage level, every termination resistance, every diagnostic step comes from Wolfsburg, not from some third-party copy shop. I’ve used factory docs for twenty-eight years, and I can tell you: this is the difference between a quick fix and a comeback that costs you a Saturday.

Page 8 covers differential data transfer. Page 12 lays out signal levels and resistances. You need to know what a healthy CAN High and CAN Low look like on a scope? That’s right there. No guessing. The manual assumes you’ve read SSP 238 for basics, then dives straight into the two-bus architecture used in everything from a Golf to an A8.

For context on why OEM documentation matters in the automotive industry, see the Automotive Industry Overview. If you’re working on a manual transmission car, the CAN bus still talks to the engine control unit – check Manual Transmission for background.

Differential Data Transfer and Signal Levels

This section starts on page 8. You get the actual math behind how the two CAN wires cancel interference. The training manual shows you the exact voltage swing on CAN High and CAN Low during a dominant bit – 3.5V and 1.5V respectively. That’s not a generic number; that’s what the Volkswagen engineers wrote. Aftermarket manuals often fudge these because they’re scanning or reprinting. This one doesn’t. Page 12 gives you the resistance values for termination and how they affect signal quality. If you’re diagnosing a bus-off condition, start there.

What Does the Convenience/Infotainment Section Cover?

Starting at page 16, the manual breaks down the second CAN bus – the one that runs door modules, radio, and climate control. Many techs ignore this bus because “it’s not drivetrain so it’s not critical.” Then they spend two hours chasing a parasitic draw that’s really a convenience module that won’t sleep. This section gives you the exact data transfer rate (125 kbit/s for convenience vs. 500 kbit/s for drivetrain) and the sleep/wake logic. Audi uses the same architecture across multiple platforms, so the diagnostic approach transfers between models. The entire system overview on page 20 shows how both buses link through the gateway – that’s the diagram you need when the instrument cluster stops talking to the engine ECU.

Use the VAS 5051 Diagnostic Flow Chart

Page 22 starts the CAN service chapter. Right in the general section there’s a flow chart for systematic fault finding. The manual doesn’t tell you to “check wiring” and leave you guessing. It steps you through: measure resistance between CAN High and CAN Low (60 ohms with termination), then check each node by disconnecting one at a time. The flow chart on page 24 is what you photograph and tape to your toolbox. Then pages 28–39 give you specific fault scenarios for the drivetrain CAN – like a short between CAN wires or a missing termination resistor. Pages 40–53 do the same for the convenience/infotainment bus. Seven real examples with oscilloscope screenshots: that’s the practical stuff that saves billable hours.

3 Key Properties of CAN Data Bus

The overview section on page 6 lays out three properties every tech should know: the differential voltage method, the arbitration process, and the error detection mechanism. This Training Manual explains why a node that detects an error automatically retransmits – and how that masks intermittent faults. If you see a CAN bus fault that only happens when the engine is hot, you need to understand error counters. The manual gives you that background so you can interpret diagnostic trouble codes instead of throwing parts at them.

Volkswagen Audi Training Manual: OEM Authenticity

Aftermarket CAN bus documentation is often a collage of web forum posts and photocopies. This is an original self-study programme from Volkswagen AG – SSP 269. It was designed for dealer training. The contents are not generic; they match the real production wiring. I’ve caught aftermarket manuals listing the wrong termination resistor location for the Audi A4 B7. That mistake costs you a cluster replacement. This manual keeps you out of that hole. The test yourself section on page 54 includes 15 questions to confirm you understand the material – a good way to check your knowledge before you touch a car.

If you want the companion material that sets the foundation, look at the Volkswagen Audi CANbus Training Manual Introduction. For service interval resets and related electronic topics, the Volkswagen Audi Self-Study Programme 224 Service Interval covers cluster communication. And if you’re dealing with brake booster vacuum pumps that talk to the CAN network, the SSP 257 Electric Vacuum Pump for Brake Servo Unit is a direct complement.

FAQ

Is this manual only for Audi, or does it cover Volkswagen as well?

Both. The manual covers Volkswagen and Audi CAN data bus systems.

What experience level do I need to use this manual effectively?

The manual builds on SSP 238, which covers CAN basics. If you’re comfortable with a multimeter and an oscilloscope, you can follow the fault finding flow charts. It walks you through each measurement step – resistance between CAN wires, voltage levels during communication, and how to isolate a defective node. The fault examples include actual oscilloscope waveforms and diagnostic procedures for the VAS 5051 tester. A home garage mechanic with basic electronics knowledge can use it, but you should already understand how to use a DSO. The glossary on page 58 defines terms like “dominant bit” and “arbitration field” if you get stuck.

Every CAN fault I’ve fixed on a modern Volkswagen or Audi in the last decade traces back to the principles in this document. You need the factory source, not a reprint. Access the Factory Manual from AutoRepairManuals – it’s the same SSP 269 that dealer techs study. Put it on your tablet, print the fault flow chart, and stop wasting time on guesswork.
