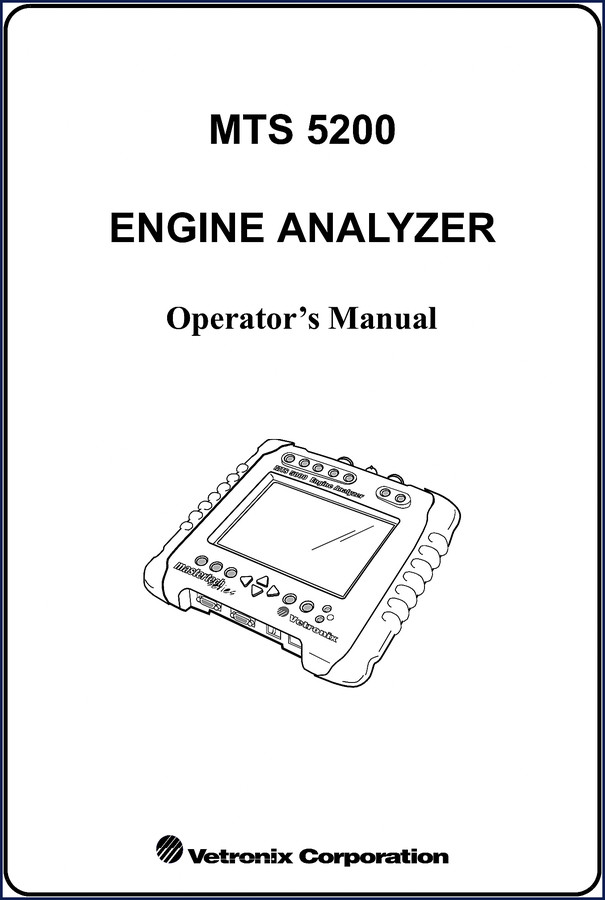

Vetronix MTS 5200 2006 Operators Manual

If you own a Vetronix MTS 5200 2006 Operators Manual, you already know the machine is a beast on ignition diagnostics. But without the factory documentation, you are flying blind. I have torqued enough head bolts to know that guessing on scope lead connections or trigger settings wastes billable hours and can fry expensive modules. This 222-page operator’s manual is what Vetronix shipped with the MTS 5200 in 2006. It is not a reprint or a third-party summary. It contains the exact procedures the factory engineers used when they designed the analyzer.

Page 3 of this manual spells out the safety warnings you need before connecting leads to a running engine: always block the drive wheels, proper ventilation, no exhaust inhalation. That is the kind of real-world caution that keeps you and your customer’s car intact. The rest of the book dives straight into the 4-channel oscilloscope, primary and secondary ignition patterns, cranking kV tests, cylinder balance, and the graphing multimeter. Every section walks you through lead hookups, pattern display modes, and active button functions. No fluff. Just the data.

Understanding the 4-Channel Oscilloscope

Chapter 2 of the manual covers the oscilloscope from the ground up. It explains manual setup vs. component selection vs. signal finder. It details volts/division, offset, AC/DC coupling, and time/division. If you have ever struggled to get a clean pattern on a Coil On Plug ignition system, the section on COP primary ignition testing—page 1 sets the stage—will save you an afternoon of guesswork. The manual also includes glitch capture, snapshot, and cursor controls. These are not generic instructions; they are specific to the MTS 5200 keypad and touch screen operation.

Does This Manual Cover Cylinder Balance Testing?

Yes, Chapter 8 is entirely dedicated to cylinder tests. The manual breaks down manual vs. automated balance tests, how to connect leads, how to calibrate the vacuum probe, and how to set the ignition disable duration. It even includes a Failed Cylinder ID section that walks you through clearing DTCs, entering VIN numbers, and evaluating test results in three display modes: Test Results, Cylinder ID, and Test Log. That is the kind of depth you need when a customer’s engine misfires intermittently and you cannot afford to throw parts at it.

7 Major Diagnostic Functions

This operator’s manual covers seven core diagnostic modes: 4-Channel Oscilloscope, Primary Ignition, Secondary Ignition, Secondary Quick Check, Vacuum Waveform, Cranking kV Test, and Cylinder Tests. Each chapter includes connection diagrams, pattern display options, and active button summaries. The Cranking kV Test chapter (Chapter 7) alone gives you live Min/Max/Avg data, a pass/fail indicator, and a settable kV threshold. If you are chasing a no-start condition, that test alone can pinpoint weak coils or bad plug wires in minutes.

Get the Right Lead Connections

Connecting leads wrong on a COP or DIS system can backfeed voltage into the analyzer and damage the input. The manual’s sections on Distributor Ignition (DI), Electronic Ignition (DIS), Coil Near Plug (CNP), and Coil On Plug (COP) show you exactly which adapter leads to use and where to clamp. There is also a chapter on Vacuum Waveform testing that includes calibration of the vacuum probe—a step most aftermarket guides skip. Do not rely on YouTube videos for this; use the factory spec from page 3’s safety notes and the detailed lead routing diagrams.

Primary Ignition Testing: What the Manual Reveals

Chapter 3 dives into primary ignition pattern interpretation. You can select Single Cylinder, Parade, Raster, or Superimposed displays. The manual explains how to adjust Volts/Division and Time/Division to see the coil saturation ramp and firing line clearly. It also covers the Firing Volts Barchart—a quick way to compare cylinder performance without scrolling through waveforms. For a beginner, this chapter alone justifies the purchase. For a pro, it’s a reference for those rare ignition systems that behave differently than the textbook.

Related manuals that pair well with the MTS 5200: Vetronix MFT Pro Series Operator’s Manual for multi-function tester operation, and Vetronix MTS 4000/4100 NVH Analyzer Manual if you also do noise/vibration/harshness diagnostics. For gas analysis, the MTS 1100 Gas Analyzer Operator’s Manual covers exhaust emissions testing. External resources: see Automotive Industry Overview for modern ignition trends, and Manual Transmission for related drivetrain information (though this manual focuses on engine diagnostics).

Source Authenticity – Why It Matters

Aftermarket manuals for the MTS 5200 often paraphrase or omit critical calibration data. Vetronix printed this manual in March 2006 in the USA. It bears part number 08002903, version 1.1. The proprietary statement on page 2 makes it clear that reproduction without permission is illegal. That means the copy you get from AutoRepairManuals is an original OEM scan, not a reprint. If you have ever chased a ghost waveform because an aftermarket guide told you the wrong trigger edge setting, you will appreciate having the factory PDF open on your tablet while you probe.

Frequently Asked Questions

Is this manual specific to the MTS 5200 or does it cover other Vetronix models?

This operator’s manual is written exclusively for the MTS 5200 Engine Analyzer. It does not cover the MTS 1100 or MFT Pro Series.

Does the manual include wiring diagrams for the analyzer itself?

It includes pinout and connection diagrams for standard and optional leads, but not full schematics of the internal circuits. For repair of the unit itself, you would need a service manual.

Can I use this manual to learn automotive ignition diagnostics from scratch?

Yes, the first chapter explains the interface and safety, and subsequent chapters teach ignition pattern interpretation step by step. However, some basic knowledge of ignition systems helps—the manual assumes you are a trained technician.

What is the format and how do I access it after purchase?

It is a downloadable PDF file, 222 pages, searchable, with OCR text. You can use it on any device. Access the Factory Manual from your account page immediately after payment.

You have spent good money on a Vetronix MTS 5200 analyzer. Do not cheap out on the documentation that unlocks its full capability. This 2006 operator’s manual gives you the exact test sequences, lead configurations, and safety protocols that Vetronix intended. Whether you are a home garage enthusiast trying to diagnose a rough idle or a shop owner equipping your techs, this is the only guide that matches the machine. Access the Factory Manual and keep it on your bench next to your scope leads.
