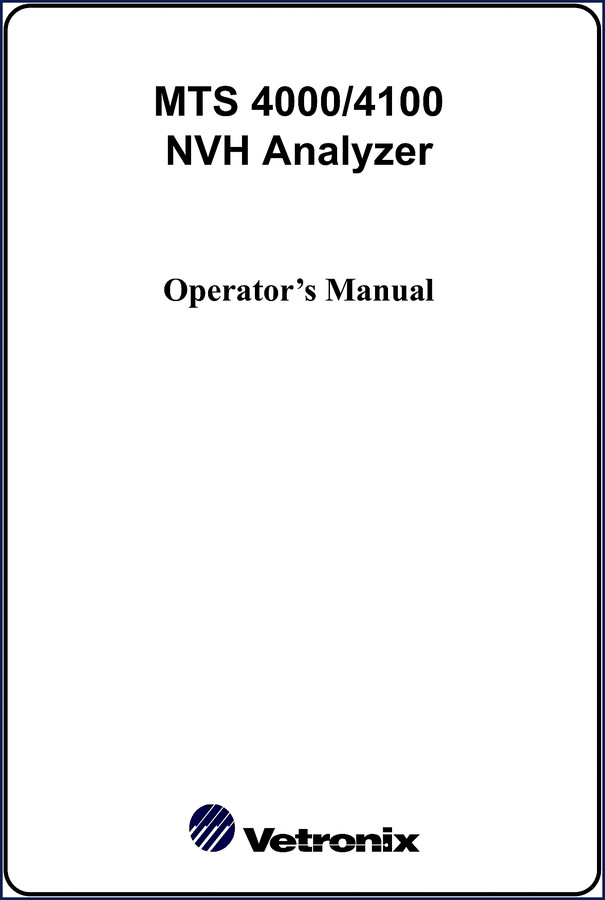

Vetronix MTS 4000, MTS 4100 2005 Operators Manual

Let me be blunt. If you run a shop that uses a Vetronix MTS 4000 or MTS 4100 NVH Analyzer and you don’t have the factory operators manual sitting on the bench next to the unit, you are flying blind. I’ve seen good techs spend an afternoon chasing a vibration that the manual would have identified in fifteen minutes. This 118-page document from 2005 covers exactly how to use the MTS 4000 and MTS 4100 for vibration diagnosis, noise diagnosis, driveline balancing, and strobe timing. It’s the same manual that came with the tester when it was new.

Vibration Diagnostics: What the Factory Expects You to Know

The Vetronix MTS 4000/4100 2005 Operators Manual dedicates a major section to vibration analysis. You get the full breakdown of operating modes: Principal Component Display, Bar Chart, Frequency Spectrum (2D), and Waterfall (3D). It explains how to use the RUN/PAUSE function, change display parameters, and save data to internal memory or CompactFlash. The manual includes System Component Definitions for engine, driveline, wheel, and engine accessory systems. Each definition tells you the order correlation so you can pinpoint whether a vibration is from a tire, driveshaft, or engine firing. The Audit Function and Filter Function are both documented with their normal operation and setup. Need to calibrate the accelerometer? The procedures for automatic and manual calibration are on the pages covering Tester Setup Functions. If you skip this section, you’ll waste hours guessing which order to look at.

Driveline Balance: Two Methods, One Correct Procedure

Driveline balance is where the manual really pays for itself. It covers two methods: Pinion Flange Balance and Dual Hose Clamp Balance. For the Pinion Flange method, the manual lists required equipment — including the weight kit — and walks through six steps: vehicle preparation, baseline measurement, test weight, initial imbalance, balance solution, verify. Every step has a purpose. For example, the baseline measurement must be taken with the vehicle on a lift and the driveshaft marked. The Dual Hose Clamp method uses a different weight setup but follows the same logic. Both methods are vehicle-agnostic — they work on any driveshaft you put under an MTS 4000 or MTS 4100. I’ve seen techs skip the baseline measurement and end up redoing the job. Don’t be that guy.

That is the procedure.

Noise Diagnostics and Strobe Light Usage

Noise diagnostics is a shorter chapter but critical for NVH work. The manual explains how to set up the microphone and interpret noise data. The Strobe Light section shows how to hook up the strobe, control it manually, or base it on engine or driveshaft speed. If you’re balancing a driveline, you’ll rely on that strobe to mark heavy spots. Battery charger setup and tester self-test are also covered. The self-test chapter includes memory tests, display tests, keyboard tests, and even a sound test. Use it before you trust the data.

For a deeper look at how vibration data integrates with other diagnostic tools, check the Automotive Industry Overview. And if you work on vehicles with Manual Transmission, the driveline balance methods here apply directly.

Who Should Use This Manual?

This manual is for the tech who owns a MTS 4000 or MTS 4100 and wants to use it to its full potential. It’s also for the DIY mechanic who bought a used unit without the paperwork. If you’re still learning NVH analysis, this manual teaches you the correct procedures step by step. Don’t rely on YouTube videos that skip the calibration steps or the road test function. The manual covers how to save data, upload to a PC, and even write capture files. If you also run a Vetronix MFT Pro Series Operator’s Manual, the workflow is similar. For the larger MTS 5200, see the Vetronix MTS 5200 Operator’s Manual. Our MTS 1100 Gas Analyzer Operator’s Manual covers that system if you need gas analysis alongside vibration.

Why OEM Documentation Beats Aftermarket

Aftermarket manuals are often reprints with missing pages or speculative wiring diagrams. This is a genuine Vetronix publication, part number 08002904. The copyright page says it all. You get the exact keypad functions, the correct accelerometer calibration procedure (automatic and manual), and the proper microphone sensitivity adjustment. The calibration data sheets in Appendix D list the accelerometer and microphone characteristics. The manual also explains how the MTS 4000/4100 writes priority to component definitions and how that affects displays. No guesswork. When you pay for a factory manual, you get the same document the training center uses.

Does this manual cover the MTS 5200?

No, it’s specific to the MTS 4000 and 4100.

Can I use this manual to diagnose a driveline vibration on a 2005 Ford F-150?

Yes, the driveline balance section is vehicle-agnostic. The manual describes the balancing methods using the MTS 4000/4100 analyzers. You’ll need to select the vehicle in the software first (VIN entry or manual). The procedure steps — baseline measurement, test weight, etc. — apply to any vehicle with a driveshaft. The manual includes system component definitions for engine, driveline, wheel, and accessories, so you can correlate vibration orders to specific components. Make sure you have the required equipment: pinion flange weight kit or dual hose clamps. The strobe light section helps to identify the source. For exact torque specs on pinion flanges, refer to the vehicle service manual; this manual focuses on the analyzer operation.

That’s the bottom line. If you want to stop wasting billable hours and start using your MTS 4000 or MTS 4100 like it was intended, Access the Factory Manual now. It’s available as a PDF from AutoRepairManuals.
