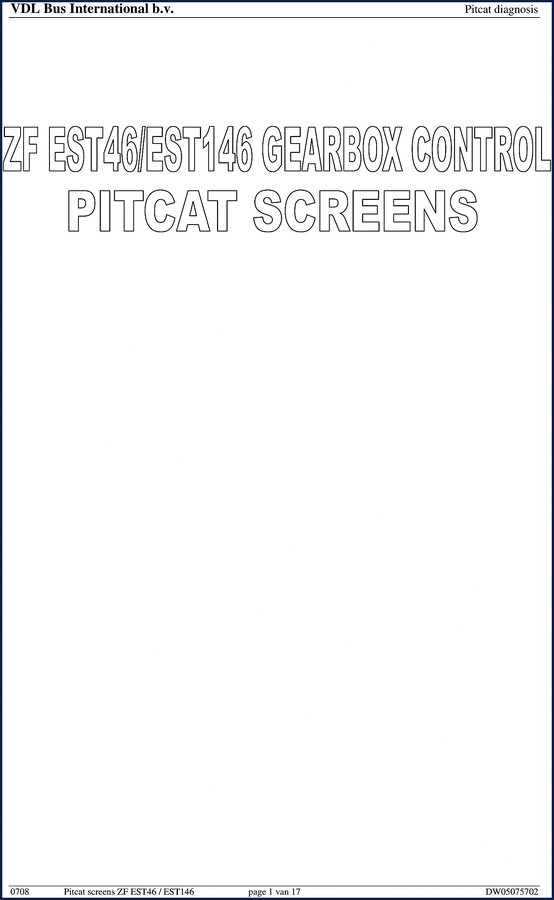

VDL BUS & Coach EST46, EST146 Diagnostics Manual – Pitcat Screen Procedures

You’re staring at a Pitcat screen on a ZF EST46 ECOMAT 2, and the bus won’t shift. The error list scrolls past – 5521(D), 3715(H) – and you need to know what those mean, which valve to test, and in what order. This 17-page VDL BUS & Coach EST46, EST146 Diagnostics Manual is exactly what the factory techs use at VDL Bus International b.v. It’s not a generic wiring book. It’s the actual Pitcat screen flow for the EST46 and EST146 gearbox control, laid out step by step.

The manual starts on page 1 with the main menu selection: choose “ZF EST46” from the list. Then it walks you through READ ERRORS, TEST INPUTS, and TEST OUTPUTS. Each screen snapshot shows the exact parameters the Pitcat displays – engine torque, output speed, load sensor (LS), load condition (LC), and gear. If you’ve ever wasted billable hours trying to interpret aftermarket translations of ZF diagnostics, this is the cure.

Pitcat Screens: Reading Errors on the EST46/EST146

The “READ ERRORS” section (page 2) gives you the occurrence counter (HZ) and the active flag (A: * for actual, – for not actual). For example, error 5521(D) with HZ:10 means it has happened ten times. The manual doesn’t guess; it shows you the exact legend. You’ll see “RETARDER,” “EXHAUST BRAKE,” and “PART LOAD” conditions decoded. This isn’t theory – it’s the factory-named variables you see on the screen.

Test Inputs and Outputs: What Each Valve Does

Every gearbox valve has a pin assignment. G = PIN 30, F = PIN 29, E = PIN 54, D = PIN 09, C = PIN 05, B = PIN 04, A = PIN 10, WK = PIN 11. The manual shows the response test for each valve, like “ZF EST46 TEST OUT. 05 VALVE C RESPONSE.” You confirm the valve actuates by watching the screen change. If the response doesn’t match, you’ve isolated the fault – no swapping parts blindly.

Torque Converter and Retarder Data

The screens display torque converter (3456), kind of fault, hour meter, sump temperature, and rotor torque efficiency. You get real-time numbers: ENGINE TORQ: 3000Nm, OUTPUT SPEED: 2500RPM. The manual tells you how to read these values and what they mean for the load condition (LC). Exhaust brake (EXB) vs. retarder (RET) vs. overrun (OVR) – it’s all labeled.

Battery and Temperature Monitoring

One screen shows “BATTERY : 24.8 V TEMP RET : 40 ºC TEMP SUMP: 45 ºC.” That’s critical for diagnosing intermittent faults. Low voltage or high sump temp can cause derating. The manual shows the exact Pitcat page where these appear – no hiding in submenus.

3 Key Diagnostic Flows

Three main procedures cover 90% of ECOS diagnosis: Read Errors, Test Inputs, Test Outputs. Inputs include DNR switch decoding (pins 21, 42, 28, 50, 41), reverse gear enable, neutral at standstill. Outputs include prop valve, accumulator, DNR light, retarder valve, and oil temp light. Each screen has a “PREVIOUS QUIT NEXT” navigation path – the manual follows it exactly.

If you’re a shop owner or fleet tech dealing with VDL buses equipped with ZF EST46 or EST146 gearboxes, you already know the frustration of aftermarket documentation that skips the Pitcat details. This manual is 17 pages, factory-original from VDL Bus International. No third-party rewrites. The screenshots are direct from the Pitcat software.

Who Needs This Manual?

This is for the technician who has a Pitcat diagnostic tool and needs to know exactly which menu to enter and what each value means. DIYers with a bus in their home garage? Only if you own one of these buses and have access to the ZF diagnostic interface. The manual does not teach general transmission theory – it assumes you know how to operate the Pitcat. But once you’re in, it’s the authoritative reference.

For background on combustion-engine diagnostics, see Internal Combustion Engine. For general OBD concepts, check On-board Diagnostics (OBD).

Does this manual cover the VDL SB 3000 series?

No, it covers only EST46 and EST146 gearbox control.

Can I use this to diagnose transmission errors without the Pitcat tool?

The manual is designed to be used alongside the Pitcat diagnostic system. It shows the exact screen flow, error codes, and sensor readings as they appear on the tool. Without a Pitcat interface connected to the EST46/EST146 control unit, you cannot execute the tests or read live data. However, the manual still gives you the technical logic – pin assignments, valve numbers, load condition definitions – so you can understand the system architecture before you even plug in. If you’re ordering parts or tracing wiring, those details are there.

If you’re working on an EST46 or EST146 gearbox and want to stop guessing during Pitcat sessions, this is the sheet music. Access the Factory Manual.
