V.t.n MT25 Parts Catalog – Factory Specs for Your Demolition Crusher

You own an MT25 demolition crusher. You need a replacement tooth, a seal kit, or a hydraulic hose. You open a generic parts list and half the numbers don’t match. Then you waste an afternoon chasing the wrong part. I’ve seen it – running a shop, I watched guys burn billable hours because someone printed an aftermarket catalog that was close but not exact. That stops here. The V.t.n MT25 Parts Catalog is the factory-issued document – 19 pages, direct from V.t.n in Italy. No reprint, no third-party guesswork. You get the exact part numbers, the exact dimensions, and the safety warnings the manufacturer stamped into the steel.

19 Pages of Factory-Coded Part Numbers

Nineteen pages might not sound like a lot for a 2,700 kg attachment, but each page is dense. This is a spare parts list and handbook in one. You aren’t getting repair procedures here – that’s in the service manual. What you get are the OEM part numbers for every pin, bushing, blade, cylinder component, and hydraulic fitting on the MT25 Combi System. The Massey-Harris-Ferguson FF 30 GS 1957 Parts Catalog | OEM Fastener Guide” rel=”nofollow”>OEM Fastener Guide would be overkill here; this catalog is specific to the crusher. Every number is stamped by V.t.n’s engineering department. That means when you order a part, it fits. No filing, no drilling, no creative shimming.

Technical Specifications and Excavator Compatibility

Page 2 lays out the critical dimensions and weight. The MT25 measures 93.3 inches in length (2370 mm), 54.7 inches wide (1390 mm), and 40.4 inches high (1025 mm). Weight lands at 5,952 lbs (2,700 kg). The excavator weight class is 28–35 ton. If you try to mount this on a 22-ton machine, you’re exceeding the structural limits. The catalog gives you those numbers so you can verify fitment before you weld brackets or modify the dipper. You also need these specs for transport permits and crane picks. Don’t skip this page. If you are working on older equipment, check the Futura Wear Technology Parts Catalog” rel=”nofollow”>Futura Wear Technology Parts Catalog for compatible wear parts – but for the core assembly, stick with V.t.n.

What Parts Are Listed in the MT25 Catalog?

The catalog covers the Combi System crusher attachment – both primary and secondary demolition configurations. It lists hydraulic cylinders, pins, bushings, wear plates, blade sets, rotation gear components, and the complete hose routing schematic (as part numbers, not a diagram). The handbook section on page 3 spells out prohibited uses: no rotation during cutting, no oscillation during cutting, no upright operation, no hitting or pushing material, no crushing, no lifting. These are not suggestions – they are safety requirements written by the people who built the machine. Ignore them and you risk cylinder blowouts, structural cracks, or worse. For reference on tractor parts layouts, see the LANDTRAC TRACTOR Parts Manual Models 410-550 DTC – Section: Numerical Index” rel=”nofollow”>LANDTRAC TRACTOR Parts Manual – different machine, same need for factory part numbers.

3 Reasons to Choose OEM Over Aftermarket Parts Lists

Reason 1: Exact part numbers. Aftermarket lists often substitute generic numbers that cross-reference to the wrong thread pitch or material hardness. Not here. Every number is V.t.n’s own, tested on the assembly line.

Reason 2: Embedded safety warnings. Page 3 lists six explicit “DO NOT” commands. A generic catalog would never include those. You need to know that rotating the crusher while cutting can shear the rotation drive – the manual tells you upfront.

Reason 3: Compatibility data confirmed. The excavator weight range (28–35 ton) and mounting dimensions (A, B, C, D) are printed so you can match your machine. A parts list without those numbers is a coin flip.

Source Authenticity: Direct from the Italian Factory

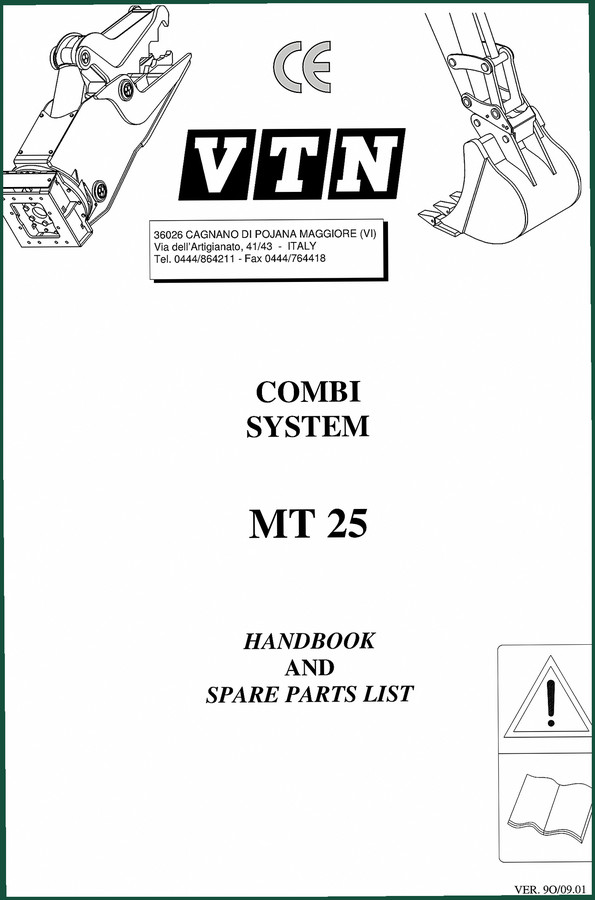

This is not a scanned copy of a copy. This is the original V.t.n document – VER. 9O/09.01, printed by V.T.N. in Italy. The OCR excerpt shows the company address in Cagnano di Pojana Maggiore (VI), telephone and fax. That is traceable documentation. When you need to prove to an inspector or a customer that you used the correct replacement parts, this manual is your paper trail. The Automotive Industry Overview doesn’t apply here – this is heavy construction – but the principle of traceability is the same. You want a chain of custody that starts at the factory.

Page 3 makes that clear.

Frequently Asked Questions

Does this manual include repair steps or only part numbers?

This is a parts catalog and handbook. You get the spare parts list, technical specifications, and safety warnings. Repair procedures are in the separate service manual.

How do I know a part number from this catalog is still current?

V.t.n updates supersessions periodically. The manual is version 9O/09.01. For current numbers, cross-reference with your dealer using the numbers printed here.

Can I use this catalog for an MT25 that was modified in the field?

Not unless the modifications used factory parts. The catalog lists as-built components. If someone welded on a different bracket or substituted a cylinder, that part won’t appear.

Is there a torque spec table in this catalog?

No. This is a parts list, not a repair manual. Torque values are in the service manual. Don’t guess – order the correct service manual if you need tightening specs.

If you maintain or own an MT25, you need the original factory parts list. Access the Factory Manual now and keep your crusher running with genuine parts.
