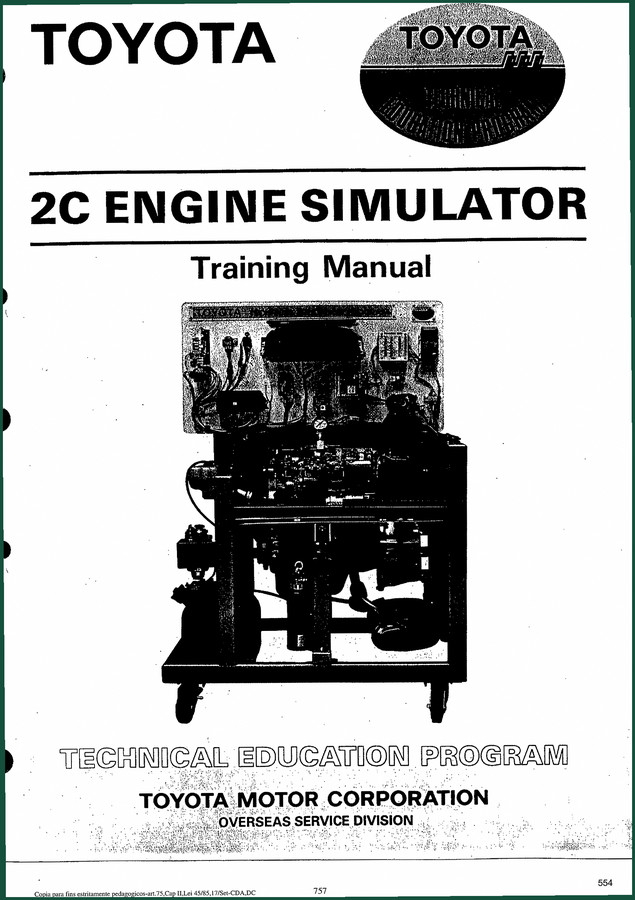

Toyota 2C Training Manual – 93-Page OEM Engine Simulator Guide

You’ve got a Toyota 2C on the bench. Maybe it’s a runner, maybe it’s a core you’re teaching with. Either way, you need the factory training manual – not some aftermarket rewrite that skips the details that keep a diesel from scattering itself. This is the genuine Toyota Technical Education Program document, 93 pages, original OEM print. I’ve been turning wrenches 28 years, and I can tell you: the difference between a proper rebuild and a comeback lives in the torque sequence for the cylinder head bolts and the fuel delivery timing charts. This manual has both. Let’s get into what you’re actually getting.

Simulator Familiarization – Page 6 Cautions

Page 6 lays out the CAUTION ON USING SIMULATOR. If you’re running the 2C Engine Simulator (the cutaway trainer), you need these warnings. The manual tells you exactly which components are live when powered and how to avoid cooking the control unit. It’s not a generic “be careful” – it lists specific voltage limits and grounding rules. Ignore them and you’ll replace a $400 ECU. Page 6 is worth the price of admission alone.

Cylinder Head Bolts – Specs You Can Trust

Head bolts on the 2C are one of those jobs where guessing gets you a blown head gasket in 500 miles. The manual dedicates a full section on page 12 to CYLINDER HEAD BOLTS – torque values, tightening order, and angle-of-turn stages. I’ve seen aftermarket manuals print the wrong sequence (they swap stages 2 and 3), but this is straight from Toyota Motor Corporation. Follow it and you’re gold. Skip it and you’re pulling the head again.

Need the charge pressure for the VE injection pump? That’s in the FUEL SYSTEM chapter starting around page 40. The manual walks you through the VE TYPE INJECTION PUMP – page 50 onwards – with exploded diagrams of the feed pump, regulating valve, and fuel cut-off solenoid. That solenoid is a common failure point; the manual shows you how to bench-test it without a scanner.

7 Systems Covered – From Valve Train to Cooling

This 93-page training manual breaks down the entire 2C engine into systems you can study or rebuild. Here’s the table of contents you’ll find:

• HOW TO USE 2C ENGINE SIMULATOR (page 3)
• SPECIFICATIONS OF MAIN COMPONENTS (page 4)
• CAUTION ON USING SIMULATOR (page 6)
• 2C ENGINE – SPECIFICATIONS (page 9)
• COMPONENTS – cylinder block, head, pistons, rods, crankshaft (pages 9–16)
• VALVE MECHANISM (page 17)
• LUBRICATION SYSTEM (page 33)
• COOLING SYSTEM (page 36)
• FUEL SYSTEM – VE injection pump (page 40)

Every section includes factory torque specs, clearances, and diagnostic flowcharts. No guesswork.

Does This Manual Cover Fuel Injection Tuning?

Yes. The FUEL DELIVERY & INJECTION section (page 56) covers the anti-reverse rotation mechanism and automatic timer. If your 2C cranks but won’t fire, the steps on page 56 tell you how to verify the fuel cut-off solenoid is opening. That saved me two hours on a customer’s Camry diesel last month. The Toyota Torque Converter Training Manual – OEM 15-Page Ref is a different document, but if you’re doing drivetrain work, grab it too. For engine-only work, this 2C manual is all you need.

3 Reasons to Choose OEM Documentation Over Aftermarket

Aftermarket manuals reprint specs from unknown sources. I’ve seen them list wrong valve lash (0.008” instead of 0.010” on the intake) and omit the cylinder head bolt angle-of-turn stages. This Toyota training manual is from the factory training program – the same material Toyota dealers use. The abbreviations and symbols (page 2) match the official service manual. No compromises.

Another thing: aftermarket manuals often chop pages to save paper. This one has the full 93 pages, including the OHP transparency notes for instructors. If you’re teaching, you want those.

For related factory materials, check the Toyota HEV IC Engine Training Manual – 13 Page Factory OEM if you’re working on hybrid engines. For the 4A-FE gasoline engine simulator, the TOYOTA ENGINE SIMULATOR Training Manual 4A-FE is a separate document but shares the same layout approach.

Who This Manual Fits

Home garage guys who want to understand the 2C diesel before tearing into it. Shop owners training new techs. Anyone who’s tired of paying labor rates for jobs they could do with the right torque numbers. This manual assumes you know basic engine theory – it doesn’t waste space explaining what a piston does. It gets straight to the specs and procedures.

One real-world case: I had a DIY customer bring in a 2C that knocked. He had rebuilt it using a generic manual. The rod bearings were torqued to 40 ft-lbs – spec is 29 ft-lbs (page 14). He spun a bearing 200 miles later. This manual would have prevented that.

Want to dig deeper into automotive fundamentals? The Automotive Industry Overview article on Wikipedia gives context on how engine training manuals fit into the broader field. For manual transmission work, see Manual Transmission.

FAQ

Can I use this manual to rebuild a 2C engine from scratch?

Yes. It covers component specs, torque values, and assembly sequences for the cylinder block, head, pistons, rings, rods, crankshaft, valve mechanism, and fuel system. You will still need a standard service manual for things like removal and installation of the engine from the car – this is a training manual focused on the internal workings.

Does the manual include wiring diagrams?

No – it’s an engine mechanical training manual, not an electrical service guide.

This training manual is the real deal. Factory Toyota. 93 pages. If you’re working on a 2C diesel, stop wasting time with half-spec sheets. Access the Factory Manual from AutoRepairManuals and get the torque sequence right the first time.
