Thermo King TK 2.44, TK 2.49, TK 3.66, TK 3.74, TK 3.88 1997 Repair Manual

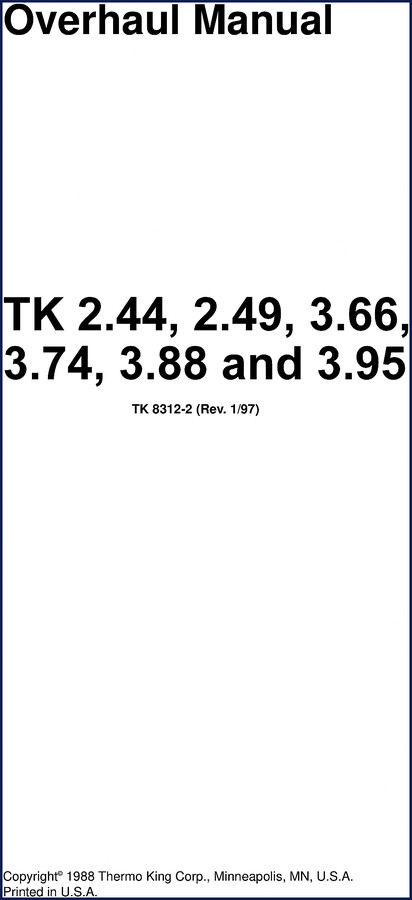

I’ve been turning wrenches since before most of you were born, and I’ve seen more aftermarket manuals that belong in the trash than on a workbench. If you’re working on a Thermo King TK 2.44, TK 2.49, TK 3.66, TK 3.74, TK 3.88 1997 Repair Manual, you need the factory book — not some photocopy that skipped the torque values. This is the original Thermo King Overhaul Manual, part number TK 8312-2, dated 1997. 112 pages, and every one of them came from the manufacturer’s engineering department, not a guy with a scanner.

Specifications and Torque Values — Page 1 and 23

The first thing any of us do when we get a new engine on the stand is look up the torque specs for the head bolts and main bearing caps. This manual spits them out clean: separate sections for each engine variant. TK 2.44 and TK 3.66 diesel engine specs start on page 3. TK 2.49 and TK 3.74 on page 8. TK 3.88 on page 13. Want the actual torque values? They’re grouped by engine and printed on pages 23 through 25. I’ve seen guys guess at these numbers because they were using a third-party manual written in generic units. Get it right the first time or you’re pulling the head again.

Engine Disassembly and Inspection — The Right Order

Chapter 2 covers engine disassembly starting on page 29. They don’t tell you to “just unbolt everything.” They list the sequence: remove the manifolds, then the cylinder head, then the oil pan, and so on. Chapter 3 is where you really earn your pay — inspection and reconditioning. Cylinder block (page 41), crankshaft (page 45), pistons, connecting rods, wrist pins. Each subsection has wear limits. For example, valve depth is on page 53. If you skip checking valve seat concentricity, you get a leaky head and lost compression. The manual shows you how.

Fuel System Bleeding and Injection Pump Timing

Air in the fuel lines is the number one reason a Thermo King won’t start after an overhaul. Page 86 tells you the exact procedure for bleeding air from the fuel system. Don’t turn the engine over with the injection lines loose and call it good — they give you the proper sequence. Fuel injection pump removal and disassembly start on page 91. Individual cylinder timing is on page 97. You need a dial indicator and the correct adapter. This manual lists the tool specs. If you’re working on a reefer unit that sits in the shop too long, the plunger barrel seal can stick. They cover that in the inspection section on page 93.

Electrical System: Glow Plugs, Starter, and Fuel Solenoid

Chapter 7 runs from page 101 to 110. Glow plugs, starter motor disassembly, and the fuel solenoid replacement. The starter section includes a no-load test procedure (page 109) so you can confirm the armature and brushes are good before you reinstall it. I’ve had techs swap a starter three times only to find the solenoid contacts were burnt. The manual’s solenoid test procedure (page 108) saves you that headache. Also, pay attention to the fuel solenoid replacement instructions on page 110 — don’t just swap it and assume the rack is centered. They tell you how to check linkage free play.

Run-In and Valve Clearance Adjustment

Page 115: run-in procedures. They give you a dynamometer method and a without-dynamometer method. Valve clearance adjustment is on page 115 as well, with separate procedures for two-cylinder (TK 2.44, 2.49) and three-cylinder (TK 3.66, 3.74, 3.88) engines. The compression test is on page 118. I’ve watched guys put a valve cover back on without rechecking the lash after a run-in. The manual tells you to check it hot. Follow that and you won’t get a collapsed lifter a week later.

Source Validity — OEM vs Aftermarket

This manual is an original factory Thermo King publication. Copyright 1988, revised in 1997. Every spec, from the torque sequences to the fuel limit screw adjustment (page 88), came from the engineers who designed the engines. Aftermarket manuals often leave out the critical notes about special tools — like the flywheel lock needed for injection pump timing. This one doesn’t. If you’ve been relying on a PDF you found on a forum, you’re taking a risk. The OEM manual is the only document that Thermo King warranties its equipment with. Use it.

Related Manuals

• Thermo King TK270, TK370, TK376 Overhaul Manual
• Thermo King V-500 Series Installation Manual
• Thermo King SPECTRUM DE 30 SR-2 Operator’s Manual

For general knowledge on diesel engine fundamentals, you might check this Wikipedia article on diesel engines or the video tutorials on injection pump timing. But for your Thermo King, stick with the factory data.

Does this manual cover the TK 3.95 engine?

Yes, it includes specifications and torque values for the TK 3.95 diesel engine starting on page 18 with torque values on page 26. The manual title lists TK 2.44, 2.49, 3.66, 3.74, 3.88, and 3.95.

Can I use this to rebuild the fuel injection pump?

Absolutely. Section 6.4 covers removal, disassembly, major component inspection of the delivery valve, plunger barrel seal, and plunger/barrel, assembly, plunger guide assembly, fuel control rack and pinions, springs, and installation. Injection pump timing is covered on page 95–97.

What about the electrical wiring diagrams?

Chapter 7 contains schematics for glow plugs, starter motor, and fuel solenoid. It does not include full chassis wiring — this is strictly engine and fuel system electrical. For the rest, you need the unit-specific service manual.

Is this the same manual a dealer would use?

Yes. This is the factory Overhaul Manual (TK 8312-2) published by Thermo King Corp. in 1997. It’s the same document a certified Thermo King technician would reference during an engine overhaul.

Don’t waste time chasing torque values on the internet. Get the real thing. Access the Factory Manual now and put it on your tablet or print it out. You’ll thank yourself the first time you hit the spec and the bolt stays tight.
