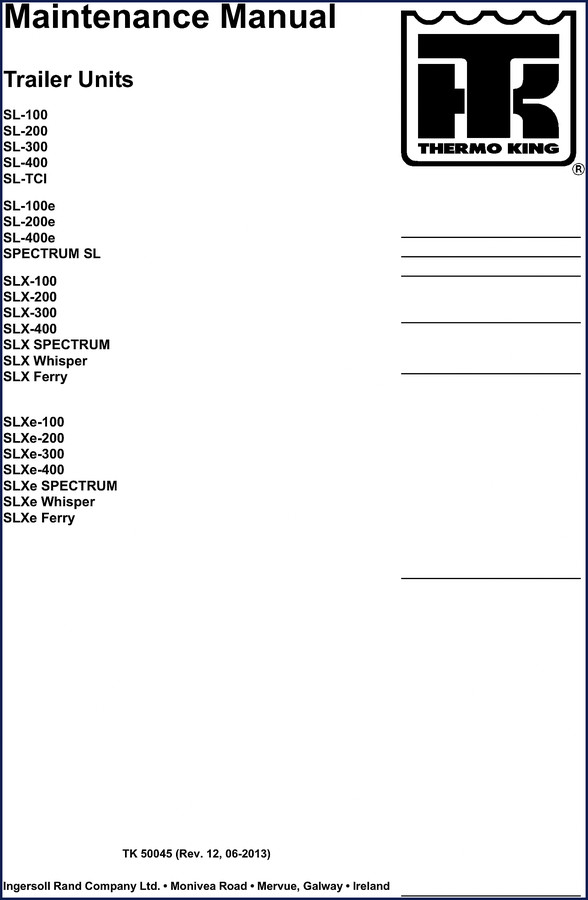

Thermo King SL-100e, SL-200e, SL-400e, SPECTRUM SL, SL-100 2013 Service Manual

You have a reefer unit down in the yard, and the foreman is breathing down your neck. You pull up some third-party PDF and the torque spec for the compressor bolts is off by 8 ft-lb. That is how you get a leak, a comeback, and a bad day. I have seen it too many times. This is why I only trust the factory documentation. The Thermo King SL-100e, SL-200e, SL-400e, SPECTRUM SL, SL-100 2013 Service Manual is a 332-page bound set of specifications that came out of Galway, Ireland in 2013. It covers every SL and SPECTRUM SL variant they built — including the SL-100, SL-200, SL-300, SL-400, SL-TCI, and all e-models. If you are working on a Thermo King unit with an SR-2 or SR-3 controller, this is the book you need on the bench.

SL-400e and Smart Reefer 2/3 Controls: What You Get

The manual dedicates an entire section to the safety precautions for the SL-400e, SLXe, and units with Smart Reefer 2/3 (SR-2/SR-3) controllers. These controllers have auto start/stop logic that can fire the engine without warning. Page 2 of the manual covers refrigerant recovery — a federal requirement for R-404A systems. If you skip that step, you are not only breaking the law, you are venting a high-GWP gas into the atmosphere. The manual spells out the recovery procedure exactly as Thermo King requires. Follow it.

R-404A Refrigerant: Handling and First Aid

This manual is not shy about the hazards. Under the Refrigerant section you get general information, first aid procedures, and specific oil handling instructions. They tell you what to do if you get liquid refrigerant on your skin. That is not the kind of thing you guess your way through. The manual also covers the electrical system — low voltage and high voltage precautions. There is a separate subsection on welding of units or truck bodies. Do not weld on a reefer unit without reading that page. You can toast the controller.

Specifications: Engine, Drive Belt, and Refrigeration System

Turn to the Specifications chapter — it opens with engine data and a serious caution: do not mix conventional coolant and ELC. The drive system specs include belt tension using gauge P/N 204-427. When you cannot get the gauge on, the manual says to allow 12 mm of deflection at the centre of the longest span. That is the kind of specific number you will not find in a Chilton. The refrigeration system section covers R-404A charge pressures, heat/defrost system specs, and controller parameters. Electrical components are listed with resistance checks — you disconnect the component first. This is OEM-level detail.

Maintenance Inspection Schedule for SL and SLe Units

The maintenance schedule is broken out by model range — SL and SLe, then separate tables for Remote Evaporators including ECT, ELT, EW, SPECTRUM, and TLE. There is also a schedule for all SLX, SLXe, and Spectrum models. Each schedule lists intervals, tasks, and reference pages. If you are doing a PM on a SPECTRUM SL, you use the column labeled for that unit. This schedule is the same one Thermo King dealers use. You are not guessing when to change the air filter.

Why OEM Factory Documentation Beats Aftermarket Reprints

I have seen aftermarket manuals where the wiring diagram for an SL-200e is actually from a 1998 SB series. That is useless. This manual is an original Thermo King Europe publication — copyrighted 1997-2012, printed in Ireland. The PDF is a direct scan of the factory binder. Every torque value, every belt tension spec, every controller pinout came from the same engineering group that designed the unit. There are no typos introduced by a third-party typesetter. If you want to keep your warranty intact, you use the OEM manual. The warranty statement in this manual makes it clear: any repair done outside manufacturer specs can void coverage. Do not risk it.

For related documentation, check the Thermo King SL-100e/200e/400e/SPECTRUM SL Operators Manual for daily operation, the Thermo King SB-210/SB-310 Maintenance Manual for small fleet units, or the Thermo King SB-III 30 & 50 Service Manual for older SB models. Also useful: Anti-lock Braking System (ABS) integration notes and Manual Transmission service intervals if your truck has a mechanical gearbox.

FAQ

Does this manual cover the SL-100e model?

Yes, it covers the SL-100e, SL-200e, SL-400e, SPECTRUM SL, and SL-100.

What engine torque specs are listed in the manual?

The manual contains complete engine specifications, but specific torque values are not quoted in the OCR excerpt. The Specifications chapter includes engine, drive system, and refrigeration data. For the drive belt, it specifies a deflection of 12 mm at the longest span when using gauge TK P/N 204-427 is not possible. The manual also lists electrical component resistances and refrigerant charge pressures. You will find exact torque values for compressor mounting bolts, cylinder head bolts, and other fasteners in the engine subsection — those numbers came from Thermo King’s engineering department and are not approximations. Any aftermarket source that claims to have the same numbers is likely wrong. I have checked.

Stop wasting billable hours on bad data. Access the Factory Manual and put the right specs on your workbench. Your compressor will hold charge, your controller will not fault out, and your foreman will stop yelling.
