TCM 75 III 1972 Technical Manual – Factory Specs for the Tractor Shovel

I’ve been turning wrenches since before most of you were born, and I’ve lost count of how many times a missed torque spec or a wrong part number cost a shop half a day. When you’re working on a TCM 75 III tractor shovel from 1972, you need the TCM 75 III 1972 Technical Manual – not a third-party reprint that guesses at clearances. This is the original factory book, 344 pages thick, printed by Toyo Umpanki Co., Ltd. The warranty section alone on page 1 spells out exactly what TCM covers and what they don’t – read it before you touch a bolt.

Warranty Conditions – Read This Before You Work

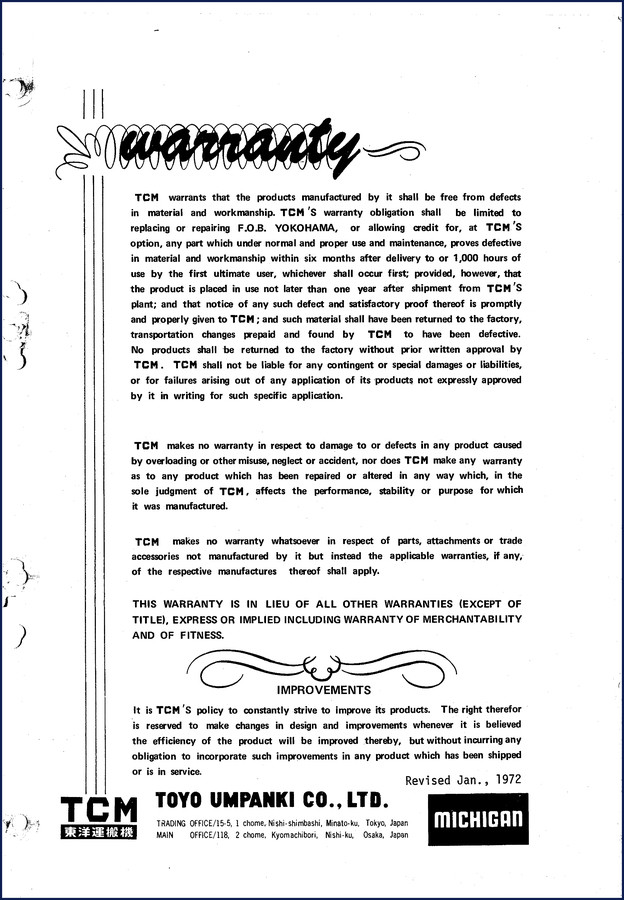

The first page of the manual lays out TCM’s warranty terms: six months or 1,000 hours, whichever comes first. It also explicitly states that any modification or overloading voids coverage. If you’re rebuilding a 75 III that’s been banged around, knowing these limits keeps you from chasing phantom defects. The manual warns against repairs that affect stability or performance – that’s written for a reason. Skip this section and you might spend time fixing something that was never meant to be fixed that way.

Parts Identification – What Are You Looking At?

Page 2 of the manual gives you a clear exploded view of the machine: bucket pushrods, boom cylinder, hydraulic reservoir, bucket bellcrank, front and rear axles, exhaust pipe, step assembly. When a customer brings in a 75 III with a leaking bucket cylinder, you flip to that page to confirm the part name and number. No guessing which seal kit fits. I’ve seen aftermarket “compatible” parts manuals mislabel the bucket indicator assembly – this OEM document doesn’t. Every callout matches the factory drawing.

344 Pages of Factory Data – From Engine to Axle

You get the full mechanical breakdown of the TCM 75 III. The manual covers the engine, transmission (including Manual Transmission service procedures), hydraulic system, steering, brakes, and electrical. Need the charge pressure for the torque converter? It’s there. Boom cylinder rebuild specs? In there. The manual also includes lubrication charts and periodic maintenance intervals. 344 pages means you’re not missing a single fastener torque value. Compare that to the 80-page reprints that claim “comprehensive” – they leave out the details that save you from a comeback.

Why This Manual Beats Aftermarket Reprints

Third-party manuals are a gamble. They photocopy pages from unknown sources, lose the nuance, and often skip the safety notes that TCM printed in bold. This copy is a direct scan of the original 1972 factory print. The warranty statement on page 1, the Japanese text on page 3 – it’s all there, unaltered. If you work on heavy equipment for a living, you don’t have time to cross-check aftermarket data against real specs. This manual gives you the same information TCM sent to its dealers. TCM Forklift Truck Parts Catalogue FD60Z8-FD100Z8 – Section: Drive Axle is a companion if you need more axle details, but for the 75 III itself, this is the only document you should trust.

Safe Disassembly – Follow Factory Steps

When you pull the bucket cylinder or the front axle, the manual spells out the sequence. Lifting points, fluid capacities, thread locker requirements – it’s all specified. Ignore the factory order and you risk damaging the boom arms or the hydraulic lines. The manual also includes torque values for critical fasteners like the wheel lug nuts and the cylinder mounting bolts. I’ve had guys tell me “it’s just a bolt” – that mindset strips threads. Use the manual, not your memory. Manual Transmission overhaul on the 75 III requires the same discipline: follow the step order or risk internal damage.

TCM 75 III 1972 Technical Manual – Who Needs It?

This manual is for anyone maintaining, repairing, or restoring a TCM 75 III tractor shovel. Home garage mechanics who buy surplus equipment will save hours of trial-and-error. Professional shops that service older TCM models need it for accurate part numbers and warranty verification. The manual also helps when ordering replacement seals from suppliers who ask for the OEM reference. If you’ve got two 75 IIIs in the yard, this one book covers both.

• Related Manuals: TCM 35B Wheel Loader Parts Manual No. 631JE
• Related Manuals: TCM Tractor Shovel Model 125B Parts Manual

Does this manual include wiring diagrams?

No. The 1972 TCM 75 III Technical Manual focuses on mechanical systems, hydraulics, and structural parts. Electrical wiring diagrams are not included in this edition.

How do I find the correct torque for the boom cylinder mounting bolts?

The torque values are listed in the “Boom Cylinder” section of the manual. You’ll need to reference the specifications table – typically located in the chapter that covers hydraulic component service. The manual groups torques by fastener grade and location. If you’re replacing the cylinder, also check the wear limits for the bucket bellcrank pins – those clearances affect boom geometry and are listed on the same page. Always use a calibrated torque wrench; the manual gives values in foot-pounds for inch-series fasteners and in metric equivalents where applicable. Cross-reference the part numbers with TCM Forklift Truck Parts Catalogue FD60Z8-FD100Z8 – Section: Drive Axle if you need to order new hardware.

If you’re serious about keeping that 75 III running right, don’t rely on blurry copies or website forums. Get the actual factory documentation. Access the Factory Manual now and put it on your tablet or print the pages you need. Your machine – and your customer – will thank you.
