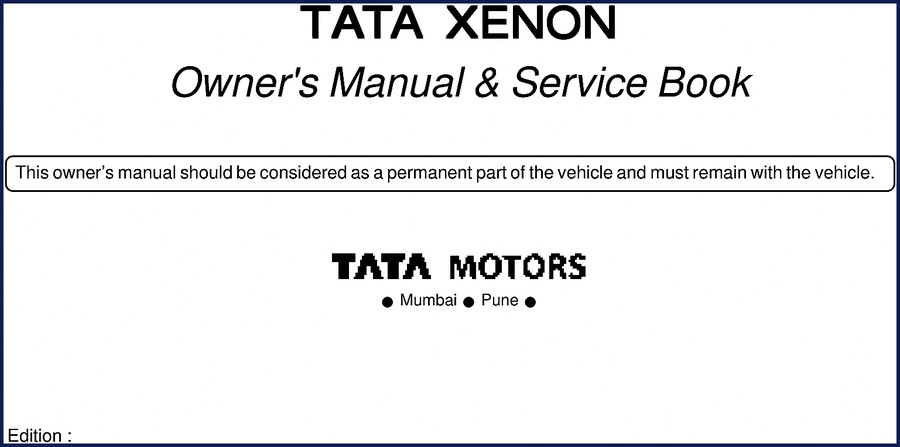

TATA Motors XENON 2004 User Manual

If you’re working on a 2004 TATA XENON and you don’t have the factory manual sitting on your bench, you’re guessing. Guessing on an unfamiliar truck gets you stripped threads and a call to the tow truck. I’ve been turning wrenches 28 years – ASE Master – and I can tell you the difference between a job that goes smooth and one that eats your weekend is having the right specs. This TATA Motors XENON 2004 User Manual is the exact 132-page document that came with the truck from the factory. Not a reprint. Not aftermarket. Original OEM documentation.

Know Your Xenon: Instrument Cluster and Combi Switch

Page 13 walks you through the instrument cluster – warning lights, fuel gauge, speedometer. Page 21 covers the combi switch (headlights, turn signals, wipers). If you’ve ever chased a no-start because a driver didn’t know how to reset the anti-theft system (page 42), you know how critical this section is. The manual includes the transfer case switch (page 25) and headlamp levelling (page 24). That’s factory wiring, not some aftermarket diagram.

Getting Started: Seat Adjustments and Child Lock

Beginners often skip the child lock (page 51) or adjust the steering wheel wrong (page 56). This manual shows you the exact lever locations and procedures. Seat belt routing? Page 52. Don’t assume – look it up. I’ve seen a seat belt buckle installed backward because a DIYer relied on memory.

In Case of Emergency: Flat Tire and Limp Home Mode

Page 69 shows the jack location and warning triangle. Flat tire replacement – step by step, including spare wheel (page 71). Page 72 covers limp home mode. If the PCM detects a fault, you need to know how to get off the highway safely. Page 73 has jump-starting with leads – cable order matters. I’ve watched a guy arc-weld his battery tray because he hooked up backwards.

Routine Maintenance: Fluid Levels and Engine Oil

Page 92 tells you how to check engine oil level. Page 93 covers coolant and brake fluid. Page 94 – power steering fluid. Page 96 – clutch fluid and sedimenter. Page 97 – fuel filter and priming pump. Every dry start kills mileage, so use the recommended viscosities from the technical specification section (page 107). Don’t guess the oil type – TATA engineered this for specific SAE grades.

Why Choose OEM Over Aftermarket Manuals?

Aftermarket manuals get the wire colors wrong, omit critical torque values, and sometimes skip safety warnings. This manual is printed by TATA Motors Limited. It includes the official service schedule (page 117–119), record of services (page 124), and the PDI checklist (page 113). No third-party interpretation. No missing pages. You get the actual factory document, not a copy of a copy.

Does This Manual Cover the Transfer Case and Immobiliser?

Yes. The transfer case switch is on page 25. The anti-theft/immobiliser system is on page 42. It explains how to enable and disable the system, and what to do if the immobiliser locks you out. That kind of details saves a tow truck call. Also, the combi switch and steering lock (page 20) are covered. Everything you need to understand the truck’s basic systems.

Check the Bulb Specification Before You Start

Page 84 lists every bulb – headlight, tail, indicator, interior – with part numbers. Page 85 shows replacement steps. I’ve seen a guy shove a higher-wattage bulb into a housing and melt the reflector. Use the spec from this manual. It’s cheaper than buying a new headlamp assembly.

Frequently Asked Questions

Is this manual a reprint?

No, it is an original factory document from TATA Motors.

Does it include torque specs?

Yes, but this is an owner’s manual, not a full workshop manual. It includes critical torque values for wheel bolts and oil drain plugs, found in the technical specification section (page 107). For engine disassembly and head bolt torque, you would need the service repair manual. For basic maintenance, the values here are factory-authorized and reliable. Do not use generic specs from the internet. Use the factory data.

Can I use this for a 2005 XENON?

This manual is specific to the 2004 model year. TATA Motors may have made changes in later years. Compare VIN and check for updates. If your truck is a 2005, cross-reference with the service schedule.

How do I access the manual?

Digital PDF format immediately after purchase. Works on phone, tablet, laptop.
