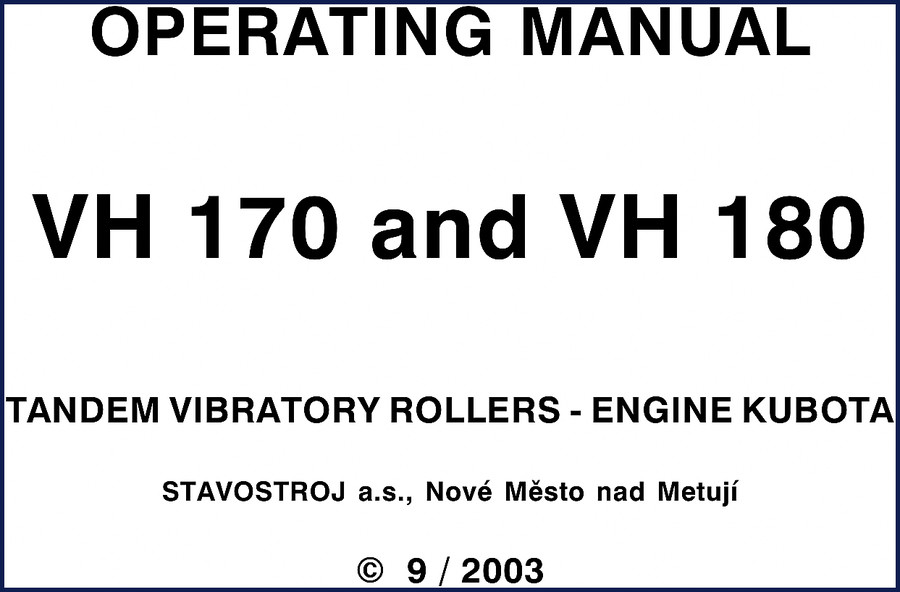

Stavostroj VH 170, VH 180 2003 Operators Manual – Factory Specs for Tandem Vibratory Rollers

Stavostroj VH 170, VH 180 2003 Operators Manual – I’ve seen too many rollers come into my shop with stripped hydraulic fittings, cooked engines, and guys scratching their heads because they used the wrong oil weight. This is the factory-issued document that gives you the actual numbers, not a reprint from some aftermarket house that guesses at the fill capacities. 127 pages of what Stavostroj wrote for the VH 170 and VH 180 tandem vibratory rollers with the Kubota diesel. If you’re maintaining one of these machines, you don’t get to guess. You get the book.

127 Pages of Factory Data

Three separate manuals inside this one file: Specification Manual, Operating Instructions, and Maintenance Manual. Page 3 of the PDF states flat-out that for extensive repairs you need the Shop Manual or an authorized service shop. That’s honest. This Operators Manual gives you the daily and weekly checks, the fluid specs, the safety regulations, and the machine dimensions. It does not get into internal engine rebuilds – that’s the Shop Manual’s job. But for start-up, operation, lubrication, and basic troubleshooting on the VH 170 or VH 180, this is what you need on the tablet next to the roller. The Specification Manual section (chapter 1) lays out weights, driving data, vibration parameters, and the Engine details including the Kubota model. Critical when ordering parts or checking compatibility.

Engine and Cooling: What the Manual Covers

Section 1.3.4 covers the engine. Section 1.3.9 is the Cooling hydraulic oil system – a common failure point on these rollers. If the cooler gets clogged with debris, the hydraulic oil overheats and you lose vibration. The manual tells you the cooling system layout and the hydraulic oil cooler inspection procedure (section 3.6.7 under daily checks). You want the exact coolant mixture? Look in section 3.2.3 – coolant specification. The book even includes the fill capacities in section 1.3.11. No guesswork about how much hydraulic oil to put in that tank. Aftermarket manuals will wave their hands. This one gives you the liters.

Operating Instructions: Not Just a Startup Guide

Chapter 2 is the operating instructions, and it’s heavy on safety – because if you flip a roller on a slope, you’re dead. Section 2.2.1.1 tells you what to check before starting compaction. Section 2.7 diagrams the instruments and controls. Starting the motor? Section 2.8.1.1. Travel forward and reverse? 2.8.1.2. Parking and emergency shut-down are covered. The manual even includes a section for moving the machine on public roads (2.9.2) and towing procedures (2.9.4). Most operators I’ve worked with skip the running-in period (2.8.2) – this manual tells you exactly how many hours you need to break in the Kubota before you hammer the throttle. Ignore that and you’ll be pulling the head early.

Maintenance Schedule: Daily Checks and Fluid Specs

Chapter 3 is the maintenance manual – this is the section that pays for itself the first time you do an oil change. Section 3.5 is the maintenance chart. Section 3.6 breaks down individual operations: every 10 hours or daily, you check engine oil (3.6.1), inspect the air filter dust vent (3.6.2), check coolant level (3.6.3), inspect fuel amount (3.6.4), and check hydraulic oil level and filter fouling (3.6.5, 3.6.6). The lubrication chart (3.4) tells you where to grease and with what. Page 5 of the manual shows you the orientation (left, right, front, rear) – don’t laugh, I’ve had new guys grease the wrong zerk because they didn’t know which side was which. The fluid specs in section 3.2 cover engine oil, fuel, coolant, hydraulic oil, and lubricating grease. All factory-stated. No bull.

Safety and Environmental Regulations

The manual spends a lot of ink on safety because these rollers are heavy and dangerous. Section 2.2 covers main safety regulations – before starting compaction, working in danger environments, protective frame ROPS, driver qualifications. Section 2.2.6 shows you the safety signs on the machine. There’s also a section on ecological and hygienic fundamentals (2.3) – how to dispose of fluids, avoid contamination. That matters if you run a shop and want to stay legal. The manual even tells you how to store the machine for 1-2 months (section 2.4.1) and longer (2.4.2). Most guys just park it and forget – then wonder why the battery is dead and the hydraulic oil smells like burnt toast.

Does This Manual Cover Your Machine?

If you own a Stavostroj VH 170 or VH 180 tandem vibratory roller with a Kubota engine, model year around 2003, this is the exact operators manual. It is not a shop manual – it won’t tell you how to split the hydrostatic drive or rebuild the vibration motor. But it will tell you how to operate the machine safely, what fluids to use, when to grease, and how to perform daily and weekly maintenance. Home garage enthusiasts working on construction equipment? This is for you if you’re willing to follow a real procedure. Beginners should read the safety sections twice. The manual assumes you can read a dipstick and turn a wrench, but it doesn’t assume you know the machine already.

Source Validity: OEM vs Aftermarket

I’ve dealt with aftermarket documentation that claimed to cover these rollers but gave the wrong torque for the wheel nuts or left out the vibration system entirely. This is a direct factory PDF from Stavostroj a.s., Nové Město nad Metují, dated 2003. The copyright notice on page 3 warns against unauthorized copying – that’s how you know it’s the real deal. Aftermarket houses cut corners; the factory doesn’t. If you want to compare, check out related manuals like Stavostroj VV 700, VV 910 2003 Operators Manual – 184 Pages OEM Factory Specs”>Stavostroj VV 700, VV 910 2003 or Stavostroj VV2010 VV2510 2002 Operators Manual – Factory Specs”>VV2010/VV2510 and STAVOSTROJ VV 1100 VV 1500 Vibratory Rollers Operation Manual”>VV 1100/1500 – all factory documents. For understanding the drivetrain differences between a roller and a standard Manual Transmission”>Manual Transmission vehicle, this manual doesn’t cover that, but the external link gives you background on how gearboxes work.

Frequently Asked Questions

Does this manual include torque specifications for the engine head bolts?

No. This is an operators manual, not a shop manual. It covers daily maintenance, fluid specs, and safe operation. For engine overhaul torque values, you need the Stavostroj Shop Manual.

Can I use this manual for a VH 170 built in 2005?

This manual is dated 2003. Stavostroj may have made changes. Compare the engine model and serial number. If your machine matches the Kubota engine described in section 1.3.4, the basic procedures will apply. Cross-check with a later revision if possible.

What is the most important daily check according to this manual?

Engine oil level (3.6.1), coolant level (3.6.3), and hydraulic oil filter fouling indicator (3.6.6). Skip any one and you risk a breakdown or a fire.

Where are the hydraulic system fill capacities listed?

Section 1.3.11 “Fills” in the Specification Manual. Exact volumes for hydraulic tank, engine oil, coolant, and fuel. Use those numbers – don’t guess.

If you’re tired of hunting through forums and running on half-remembered advice, get the document that the factory stamped. Access the Factory Manual for Stavostroj VH 170 and VH 180 – it’s 127 pages of what you need to operate and maintain these rollers the way the engineers intended.
