Solar 290LC V CV Technical Manual

If you are tearing into the hydraulic bank on a Solar 290LC V CV and you do not have the factory hydraulic circuit diagrams memorized, you are wasting time. I have seen techs pull a main control valve and not understand why the swing circuit deadheads. That costs you a shift and a hydraulic pump. The Solar 290LC V CV Technical Manual – 64 pages of OEM hydraulics – is what you put on the bench next to the valve body. Not a generic flow chart. Not a reprint of a reprint. The actual factory document that the assembly line used.

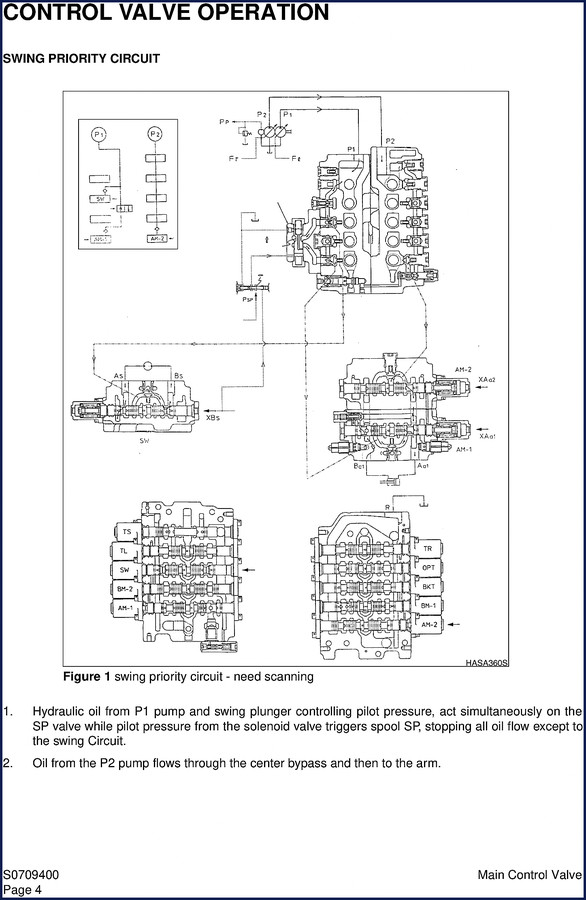

This manual covers the exact priority circuits, spool triggers, and pilot pressure sequences that make this excavator move. Page 4 shows the swing priority circuit: how oil from the P1 pump and the swing plunger act on the SP valve while the solenoid triggers spool SP, stopping all flow except to the swing circuit. If you skip understanding that, you will chase a weak swing all week. Page 8 walks you through the straight travel circuit in combined operation with swing – something aftermarket books get wrong because they copy from a different model year.

Swing Priority Circuit – What Page 4 Tells You

Oil from the P1 pump and swing plunger pilot pressure act simultaneously on the SP valve. The solenoid valve triggers spool SP, blocking all flow except to the swing circuit. That means when you operate swing, the rest of the hydraulic system takes a back seat. If your swing stalls under load, check the solenoid signal and the spool SP condition. This manual gives you the exact port numbers and pressure sequences so you can test without guessing.

Arm Priority Circuit – Why OEM Flow Matters

Two pumps, two arms, one priority valve. The manual explains that when PAP pilot pressure is ON, oil from the P2 pump goes to the low-load arm through the AP valve. When PAP is OFF, the AP valve spool stops all oil to the arm and supplies only the boom. If you have an arm that drifts or a boom that hesitates, you need the factory logic – not a third-party summary. This section covers the parallel passage and how the high-load arm gets oil from the P2 pump without triggering the AP valve.

Bucket Junction Circuit – Factory Procedure

The bucket circuit uses oil from both the P1 and P2 pumps. Hydraulic oil from P2 flows directly to the bucket. Meanwhile, oil from P1 combines with the bucket plunger pilot pressure to trigger the center bypass valve spool CB. That spool sends oil through an external line (CK1 to CK2) to open the bucket pressure check valve. That join point is where most aftermarket diagrams misrepresent the flow. The OEM manual shows the exact port routing on page 6.

Straight Travelling Circuit – Combined Operation Details

This is the section that separates factory techs from parts changers. When you travel and operate swing at the same time, the travel straight (TS) switching valve must engage. Page 8 details the sequence: swing plunger on blocks pilot signal Px, which switches on the TS valve, providing a supply path to both left and right travel plungers. If the machine pulls to one side during combined operation, the problem is almost always in the TS valve or the pilot pressure sequence. The manual gives you the step-by-step without the fluff.

Why 64 Pages of OEM Data Beats Aftermarket

Aftermarket manuals strip out the redundant circuits – the ones that protect your pumps. This Technical Manual keeps every line, every spool label, every pressure tap. It is published by Solar, not a third party that photocopies a photocopy. The 64 pages cover the main control valve breakdown, priority circuits, and the exact test points for each function. You will not find this level of detail in a condensed guide. If you want to keep your Solar 290LC V CV running without blowing a seal, this is the document.
