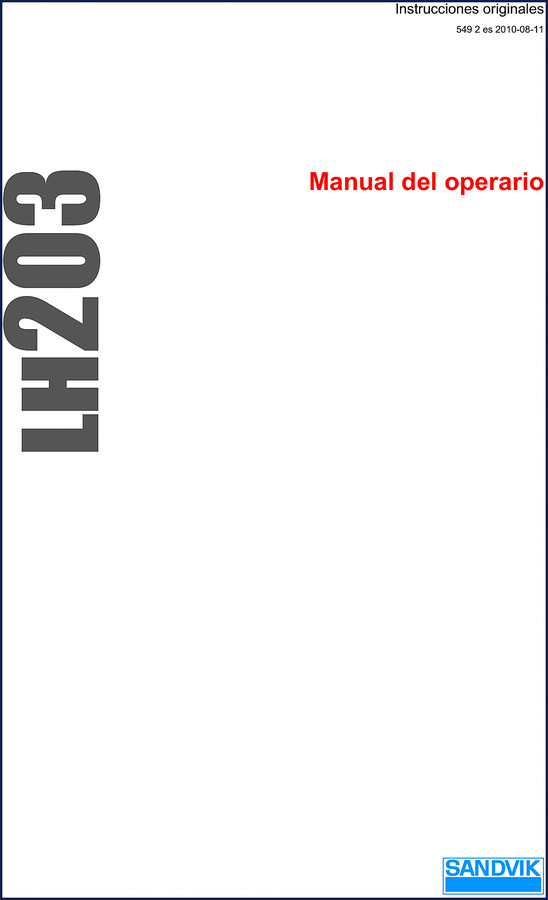

Sandvik LH203 2010 Operators Manual

You bought a used LH203 and the glove box is empty. Now you’re guessing on hydraulic pressures, leaning on a buddy’s memory, or worse – reading a knockoff translation that says “tighten until it feels right.” That’s how you blow a seal or drop a boom on someone. The Sandvik LH203 2010 Operators Manual is the factory document – 120 pages of what Sandvik wrote for the operator, not some aftermarket summary. If you’re going to run this loader, you need the original instructions, not a photocopy of a photocopy.

Safety Chapter: 2.1 Main Hazards

Page 18 lists the principal dangers during operation and maintenance. This isn’t the generic “be careful” you get in a third-party pamphlet. Sandvik spells out exactly what can kill you – hydraulic line bursts, accumulator discharge, unexpected frame movement. The manual covers lockout devices – frame lock bar, arm support bar, optional safety arm support. Sections 2.13.1 through 2.13.6 step through installation and removal. If you skip installing the frame lock bar before crawling under the machine, you’re betting your life on gravity. The manual shows where the bar goes and how to verify it’s seated. No guesswork.

Machine Description: Controls and Functions

Chapter 3 describes the LH203’s controls – instruments, circuit breakers, and recommended operating conditions. Section 3.2 covers the dashboard layout and what each gauge tells you. The circuit breaker descriptions in 3.3 are cross-referenced to electrical schematics (though the schematics themselves are in the Service Manual, not this operator’s book). If your loader won’t crank, you can at least check the breaker panel without chasing ghosts. The manual also lists the approved fluids – oils, greases, fuel – by Sandvik part numbers. Using the wrong hydraulic oil in a 2010 LH203 can cost you a pump. The specs are in section 2.18.

Operating Instructions: Pre-start Checks

Section 4.1 runs through the daily walk-around – wheel nuts, engine oil, hydraulic level, fire suppression system (FS1000 or Ansul, if equipped). Section 4.1.10 tells you to turn the main switch ON before anything else. Page 29 shows the tilt angles – know them before you drive into a drift. The manual covers the emergency steering test (4.2.10) and door interlock switch check (4.2.11). If you’re running this machine in a mine or a quarry, those checks aren’t suggestions. The procedure for starting the engine (4.2.5) includes verifying the transmission oil level (4.2.7) – something an operator can forget until the tram fails halfway up a ramp. This manual puts all those steps in order, with warnings where torque or pressure matters. SANDVIK QI240 Operator’s Manual Original Instructions covers similar pre-start routines for the crusher side, if you run a mobile plant.

Why OEM Documentation Matters

Aftermarket manuals for equipment like this are translated badly or skip entire sections – especially the environmental disposal notes (2.5.2) and the specific fire suppression system checks. Sandvik’s own manual uses the original Spanish instructions (it’s a Spanish-language operator’s manual, part number 549 2 es). Reprint houses will sell you a scanned copy that might be missing page 54 because the original was dog-eared. This is the full 120-page factory PDF, not a reprint. You get the same information the dealer gives the operator on day one. Operation and Maintenance Hydraulic TB Boom (2005) is a different machine, but the same principle – OEM only, no third-party shortcuts. Manual Transmission – if you’re working on a truck with a manual box, you need the factory specs for that too. The same logic applies: don’t trust a generic write-up when a hydraulic line can rupture at 3,000 psi.

Who This Manual Serves

If you own an LH203 – whether it’s a single machine on a small contract or a fleet unit – this manual is for the operator and the mechanic who does daily inspections. It’s not a service or repair manual; it won’t tell you how to rebuild the engine or set valve clearances. But it will tell you the correct pre-start sequence, the safe lockout procedure, the locations of emergency stops, and the fire suppression system test. For a shop that works on Sandvik equipment, having the operator manual on the bench means you can verify what the driver should have checked before the machine came in with a cooked brake. Sandvik QA451 Operator’s Manual covers the screen plant side – same need for OEM procedures. Manual Transmission – again, if you run a loader with a manual transmission variant, check the factory book. This Sandvik LH203 manual is the baseline for safe operation.

Does this manual include torque specs for wheel nuts or hydraulic fittings?

No. This is an operator’s manual, not a service manual. Pre-start checks require visual inspection and fluid level verification, not torquing. For service torque values, you need the Sandvik LH203 Service Manual.

What pre-start checks are listed in Section 4.1?

Thirteen checks including: wheel nut inspection, engine oil level, visual check of engine accessories, transmission belts, fuel shutoff valve, filter assembly condition, hydraulic oil level and back pressure, portable fire extinguisher (if equipped), main switch ON position, Sandvik FS1000 and Ansul fire suppression system checks, and fuel level. The manual walks through each step with illustrations and warnings, e.g., check the tilt angles on page 29 before moving the machine. This section alone justifies the purchase if you want your operators to have a written checklist they can follow without guessing.

Your LH203 is a 16-ton loader that works in tight underground drifts or surface stockpiles. One missed step – like forgetting the frame lock bar – can kill someone. The factory manual puts the correct procedure in front of you. Access the Factory Manual from AutoRepairManuals and keep it in the cab or on the shop tablet. Your operators will have the same instructions Sandvik wrote. No aftermarket summary. No missing pages.
