Sakai SV400D-2, SV400T-2, SV400TB-2, SV400TF-2, SV400FB-2 User Manual – Factory Specs for Vibrating Roller Operation & Maintenance

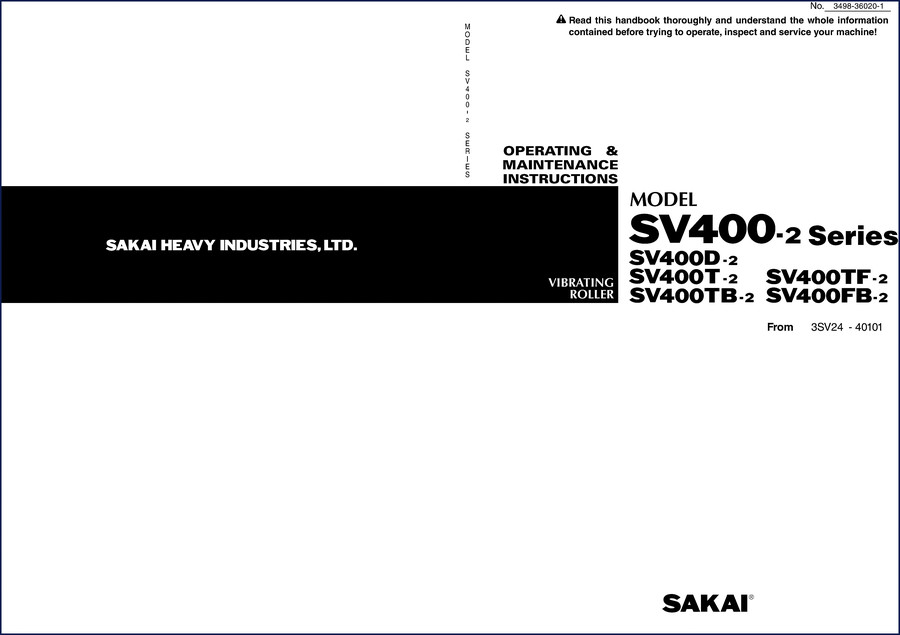

If you are turning wrenches on a Sakai SV400-2 series roller without the original user manual, you are working blind. I have seen too many guys guess at fluid capacities, skip safety steps, and end up with a machine that either won’t start or leaks hydraulic oil all over the job site. This Sakai SV400D-2, SV400T-2, SV400TB-2, SV400TF-2, SV400FB-2 User Manual is the exact same 77-page document that came from the factory in 1999 – no aftermarket interpretation, no missing pages. Whether you own a SV400D-2 drum roller or a SV400TF-2 with a smooth tire, the procedures inside are written for technicians who treat torque specs and safety decals as non-negotiable. You will find engine identification numbers on page 1 – no guessing which motor you have. The safety notices start on page 2. Read them before you even pull the battery cover off.

Engine Identification and What This Manual Covers

Every machine in the SV400-2 series – SV400D-2, SV400T-2, SV400TB-2, SV400TF-2, SV400FB-2 – has a different engine placement and vibration system. This manual dedicates a full section to Machine and Engine Identification Numbers (page 1) so you can confirm the serial number range and engine model before ordering parts. The preface makes it clear: for engine operation and maintenance, you also need the separate Engine Instruction Manual. That is not a shortcut – it is factory procedure. If you are swapping a fuel pump or chasing a no-start on the engine, grab the diesel engine manual. The roller manual covers everything else: travel controls, vibratory on/off, steering, and daily checks.

Safety Notices – Not Optional Reading

The safety section runs from page 2 through page 16. That is not filler. Section 1.1 General Precautions tells you what PPE and tools are required before you even step onto the roller. 1.3 Before Starting the Engine walks you through the pre-start inspection – fuel level, coolant, hydraulic oil, and all safety decals in place. 1.11 During Servicing covers locking the frame, blocking the roller, and depressurizing the hydraulics. I have seen a guy lose a finger because he ignored 1.11. Do not be that guy. The manual also includes 1.12 Safety Decals with illustrations showing where each decal lives on the machine. If a decal is missing, order the replacement from Sakai.

Operation Section: Throttle, Travel, and Vibratory Controls

Chapter 2 – Operation is where you learn how to start, move, and stop the roller. It covers the throttle lever, travel pedals (forward/reverse), vibratory switch operation, and emergency stop procedure. The manual notes that the vibratory system should only be engaged when the roller is moving forward at compaction speed. Trying to vibrate in place can damage the eccentric bearings. If you are new to these rollers, the step-by-step start-up sequence on page 22 (approximate) will keep you from over-revving the cold engine. The manual also explains the parking brake lockout – a detail that aftermarket copies often leave out.

Periodic Maintenance Intervals and Procedures

Chapter 3 – Periodic Maintenance is the backbone of keeping these rollers running on site. The factory schedule lists daily, 50-hour, 250-hour, 500-hour, and 1000-hour tasks. Daily checks include engine oil level (check when cold), hydraulic oil sight glass, radiator coolant level, and air filter restriction indicator. At 250 hours you change the engine oil and filter, replace the fuel filter, and grease the articulation pivot pins. The manual specifies SAE 10W-30 engine oil for most climates – do not use 15W-40 unless ambient temperature exceeds 100°F. Grease points are numbered and cross-referenced to an illustration. Do not skip the rear axle lubricant check – page 16 of the periodic schedule tells you the exact gear oil type and fill level.

Specifications: Fluid Capacities and Torque Data

Chapter 4 – Specifications gives you the numbers you cannot guess. Hydraulic tank capacity: 24.5 gallons (93 liters). Engine oil capacity with filter change: 4.7 quarts. Coolant capacity: 3.2 gallons. Wheel bolt torque: 350 ft-lbs. If you do not have these numbers, you are risking stripped threads, leaking seals, or a wheel that comes loose at speed. The manual also lists the vibratory frequency (40 Hz standard) and amplitude settings. For charging the accumulator, the manual references a separate test procedure – page 73 contains the accumulator precharge pressure (750 psi, nitrogen). Yes, that page exists in the bound manual. Use it.

Why OEM Documentation Beats Aftermarket Reprints

I have bought aftermarket reprints that replaced factory illustrations with blurry photocopies and typed over torque values that were off by 10 ft-lbs. This is the real thing – original Sakai Heavy Industries, Ltd. printing. The PDF is scanned from the original No. 3498-36020-1 document. Every page is legible, every note is in its original place. If you are a shop that bills by the hour, you cannot afford to chase bad data. This manual pays for itself the first time you correctly diagnose a vibratory control issue or avoid a hydraulic line burst because you used the right pressure spec.

For related equipment, check the SAKAI SV400D-2/T-2/TF-2 Vibrating Roller Parts Catalog if you need exploded views and part numbers for ordering. For other Sakai rollers, the Sakai TW320-1 TW330-1 Operators Manual – Factory Specs and Sakai SW652-1, SW652ND-1, SW652B-1 Operators Manual – Factory Specs are also available with the same factory accuracy. If you are working on the transmission itself, refer to the Manual Transmission supplement. And for general drive train theory, the Manual Transmission article on Wikipedia is a decent primer – but never substitute it for the factory torque table.
